Product Description

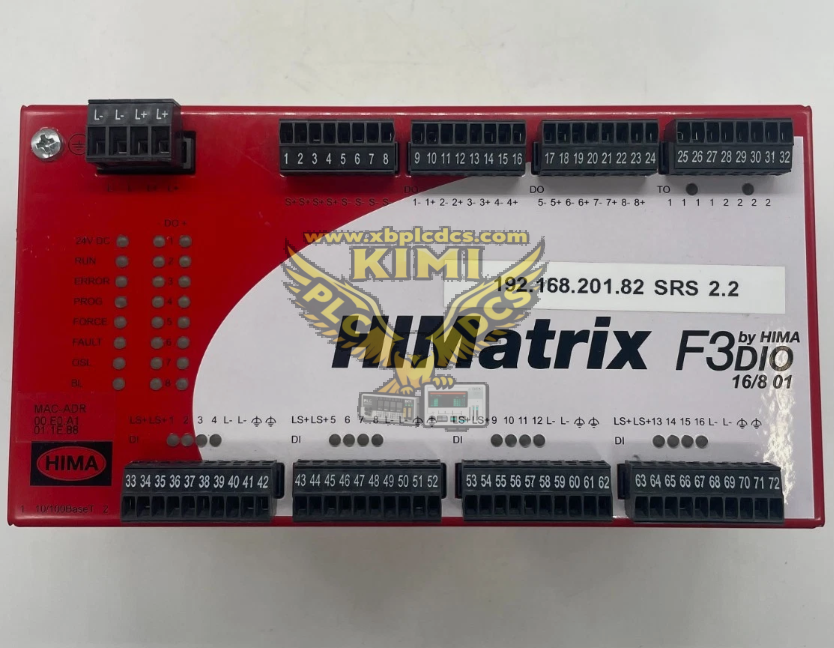

The F3DIO16/801 (F3 DIO 16/8 01, part number 982200423) is a SIL3 certified mixed digital input/output remote I/O module of HIMA HIMatrix safety system, compliant with IEC 61508 and IEC 61511. This DIN rail mounted module provides 16 channels of 24VDC safety digital inputs and 8 channels of two-pole safety digital outputs. It is equipped with dual SafeEthernet ports for redundant safety network topology. It features channel-level wire break and short-circuit diagnosis and EMC protection. This distributed slave I/O module cannot run safety logic independently and communicates with HIMatrix safety CPU via SafeEthernet. It is approved for Ex Zone 2 hazardous area installation.

Key Functions

• 16 safety digital input channels for collecting signals from emergency stop buttons, limit switches and safety field sensors
• 8 two-pole safety digital output channels to drive safety solenoid valves, safety relays and alarm indicators
• Channel-wise line monitoring to automatically detect wire break, short circuit and field wiring faults
• Dual SafeEthernet interfaces to build redundant safety network for communication with HIMatrix safety controller
• Fail-safe mechanism: outputs switch to de-energized safe state upon communication loss, power failure or hardware fault
• Front panel LED indicators for power supply, network status and individual channel fault alarms
• Supports ELOP II and SILworX engineering software for hardware configuration, online monitoring and fault diagnosis

Application Scenarios

This mixed I/O module is widely used in Safety Instrumented Systems (SIS), Emergency Shutdown (ESD), Burner Management System (BMS) and Fire & Gas (FGS). It is deployed in oil & gas, petrochemical, chemical refining, offshore platforms and thermal power plants for safety signal acquisition and safety interlock actuator control of high-risk production processes.

Common Issues & Troubleshooting

• Channel fault alarm: Loose field terminals, cable short circuit, wire break or cable insulation degradation
• SafeEthernet communication interruption: Damaged Ethernet cable, network switch fault or incorrect IP configuration
• Input signal instability: Sensor contact bounce, loose wiring or fluctuating 24VDC field power supply
• Output no response: Load overload, wiring error or safety interlock logic being triggered
• Intermittent module offline: Cabinet overheating, mechanical vibration or unstable 24VDC power supply
