HIMA Z7138/3330/C5/P2/R LED Cable Plug Assembly for F3330

Product Description

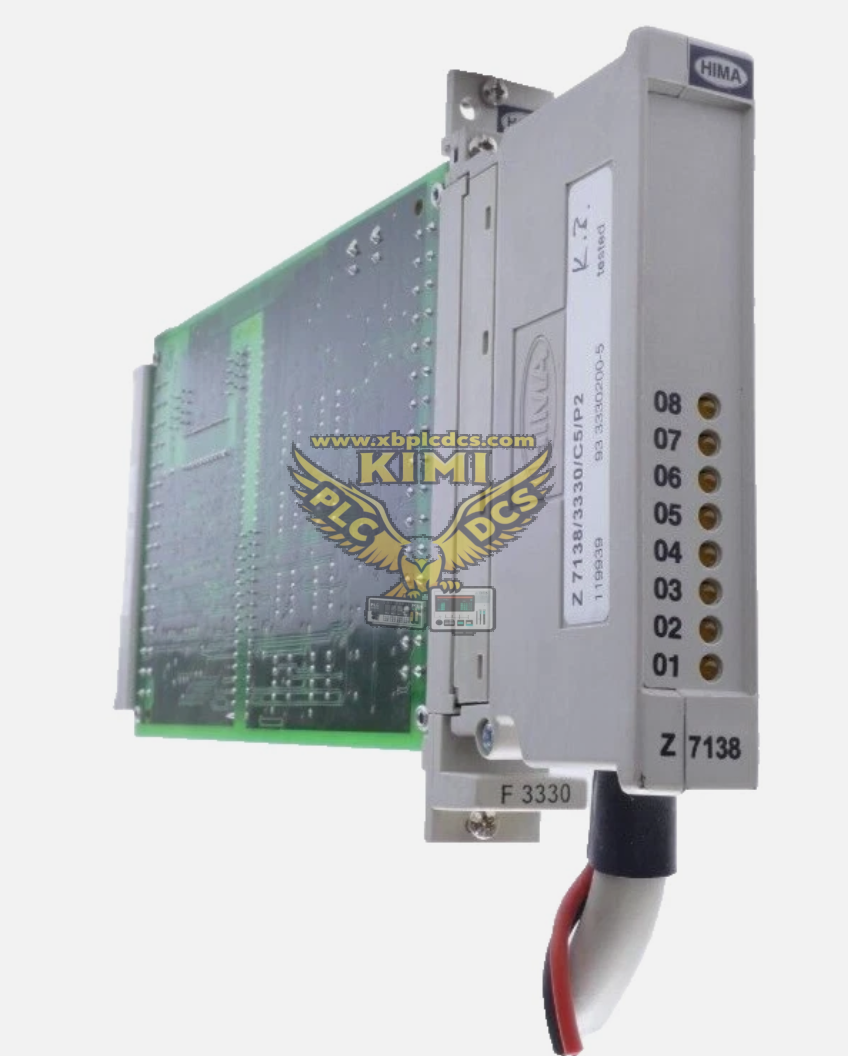

Z7138/3330/C5/P2/R is a pre-wired 2-pole LED cable plug manufactured by HIMA (Germany), specially matched for HIMA F3330 safety digital output module in HIQuad safety instrumented system (SIS). The suffix C5 stands for 5-meter cable length, P2 represents plug type, R is the revised version code. It is factory pre-assembled wiring harness connector, used to connect F3330 module output channel to field indicator lamps. The assembly is produced under strict safety specifications, with anti-short circuit and insulation design, applied as original spare replacement component for petrochemical, power plant safety control rack.

Key Functions

• 2-pole pre-wired cable plug for field LED lamp connection with F3330 safety output module
• 5 meters cable length (C5 code), fixed factory wiring, ready for direct installation
• Transmit safety output signal to status indicator lamps on site
• High insulation and anti-interference design for hazardous industrial environment
• Matches F3330 8-channel safety digital output module of HIMA HIQuad system
• Support lamp load up to 4W, comply with safety circuit wiring requirements
• Compact plug structure, quick plug-and-release for cabinet maintenance
• Designed for SIS safety circuit, meets IEC61508 SIL3 related wiring specification

Application Scenarios

• HIMA HIQuad (H41q/H51q) safety instrument system, F3330 digital output module wiring
• Petrochemical, oil & gas plant safety interlock control cabinet
• Power station boiler and turbine safety protection SIS system
• Chemical process safety control system maintenance and spare replacement
• Industrial safety rack field status indicator lamp wiring project

FAQ

Q: Who manufactures Z7138/3330/C5/P2/R?
A: HIMA Paul Hildebrandt, Germany safety automation manufacturer.

Q: Which module does this cable plug match?
A: It is dedicated wiring plug for HIMA F3330 safety digital output module.

Q: What does C5 stand for?
A: C5 indicates the cable length is 5 meters.
