HIMA F3 AIO 84 01 982200409 Analog I/O Module-KIMI
- Part number：HIMA F3 AIO 84 01 982200409
- Product Origin：America
- HS CODE：8443919090
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description

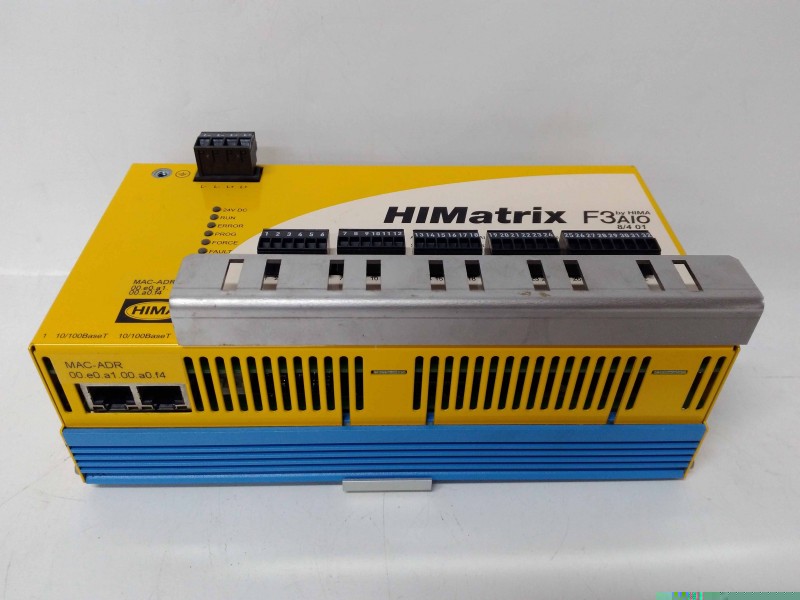

HIMA F3 AIO 84 01 Analog I/O Module
Safety Instrumented System (SIS) Component Technical Document
1. Basic Product Information
Part Number: F3 AIO 84 01
Manufacturer: HIMA Paul Hildebrandt GmbH
Product Type: Analog Input/Output Module
Compatibility: HIMA F3 Distributed Control System (DCS)
Safety Certification: SIL 3, TÜV Rheinland, IEC 61508
Application Category: Process Industry Safety Systems (Oil & Gas, Chemical, Power)
2. Core Technical Specifications
Analog Input Channels: 8 Channels (Universal Type)
Analog Output Channels: 4 Channels (Isolated)
Input Signal Range: 4-20 mA, 0-10 V, Thermocouple (J/K/T/E)
Output Signal Range: 4-20 mA, 0-10 V (Configurable)
Supply Voltage: 24 VDC (Redundant, ±10%)
Accuracy: ±0.1% of Full Scale (FS)
Response Time: ≤ 200 ms (Input), ≤ 100 ms (Output)
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Protection Class: IP20 (Front Panel)
Communication Interface: HIMA Safety BUS p (SBp)
MTBF: ≥ 1,200,000 Hours (per IEC 61508)
3. Key Safety Features & Functions
• SIL 3 certified for use in high-integrity safety instrumented systems
• Channel-to-channel isolation to prevent cross-circuit interference
• Built-in self-diagnostic function (continuous fault monitoring)
• Redundant power supply support for uninterrupted operation
• Hot-swappable design for maintenance without system shutdown
• Configurable input/output scaling via HIMA HIMatrix Engineering Software
• Fault alarm output for immediate system status notification
4. Installation & Maintenance
Mounting: DIN rail mounting (EN 60715) on HIMA F3 system cabinet
Wiring: Use twisted shielded cables; separate signal and power lines
Commissioning: Parameter configuration via HIMatrix software; safety loop testing required
Maintenance Schedule: Visual inspection (monthly); functional test (annually); calibration (every 2 years)
Repair: Only HIMA authorized service personnel may perform component replacement
5. Safety Warnings & Precautions
• This module must be used in accordance with HIMA safety manual and IEC 61508 standards
• Disconnect both primary and redundant power supplies before installation or removal
• Do not modify module hardware or software without HIMA's written approval
• Unauthorized calibration or testing may compromise SIL 3 safety integrity
• Ensure proper grounding to meet EMC requirements and prevent electrical shock
