Product Description

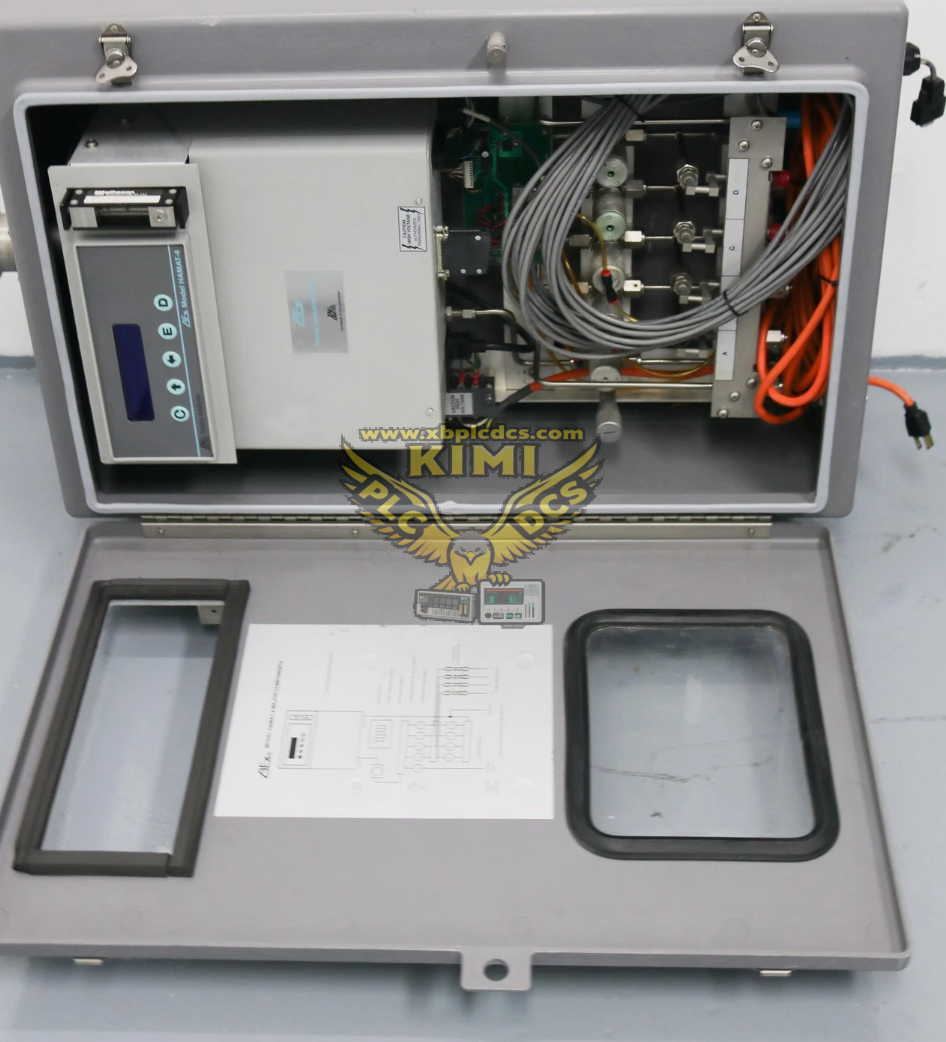

The 1070-01020 is a gas monitoring cabinet assembly manufactured by Applied Materials for semiconductor process equipment. It is an integrated gas detection unit designed to continuously track process gas concentration and flow status inside wafer fabrication systems. This unit combines gas sensors, signal processing board, local display and alarm relay outputs, commonly fitted on AMAT etch and deposition platforms.

Key Functions

• Real-time monitoring of process gas concentration and gas leak detection
• Gas flow measurement and deviation comparison against recipe setpoints
• Local LCD display for gas readings, status and fault codes
• Relay alarm outputs to interlock tool and trigger emergency shutdown
• Internal data logging for gas event history and fault traceability
• Digital communication interface to send gas status to main tool controller

Application Scenarios

Used in semiconductor wafer manufacturing, mainly on etching, PVD and CVD process chambers. It protects fab safety by monitoring toxic, flammable or corrosive process gases, triggering alarms and tool interlock upon gas leakage or abnormal concentration.

Common Issues & Troubleshooting

• False gas alarm: Sensor contamination, drift or moisture inside cabinet
• No reading: Check sensor power supply, cable breakage or sensor end-of-life
• Communication lost: Inspect internal signal board connectors and wiring harness
• Alarm relay fails to trip: Relay burnout or loose terminal connections
• Display blank: Power fuse failure or internal power supply degradation
