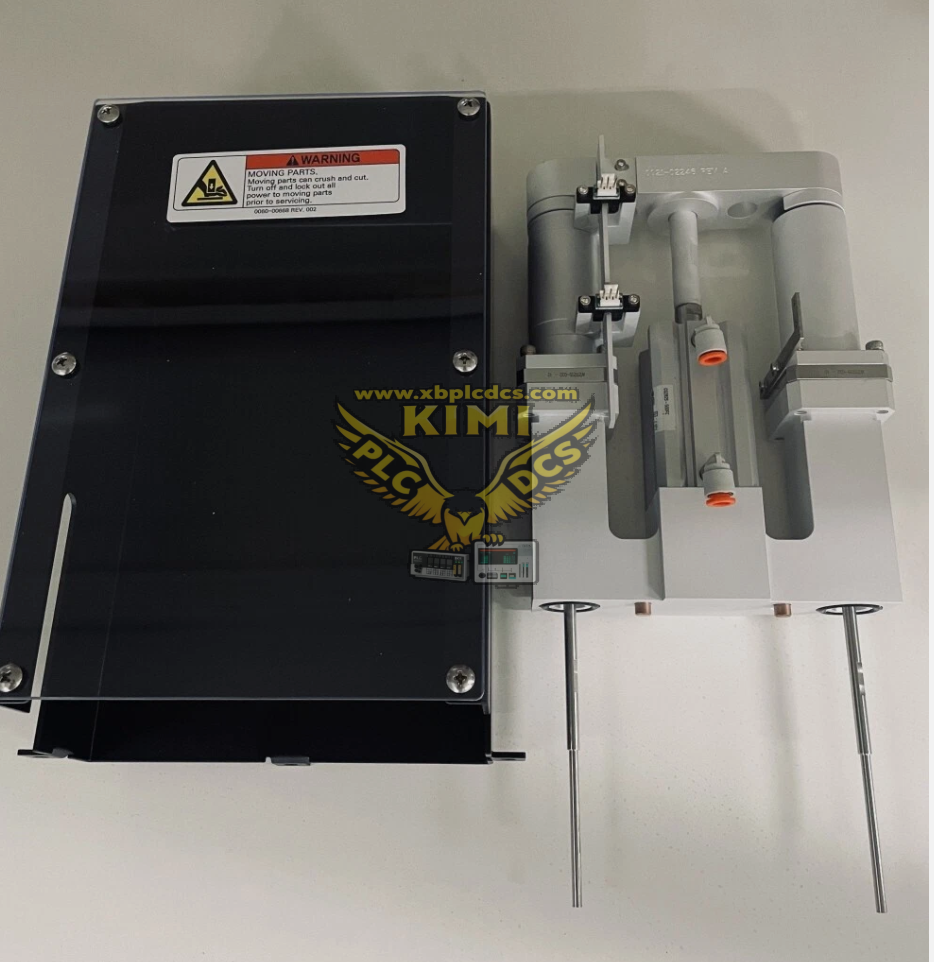

Applied Materials 0010‑01412 Robot Assembly / Wafer Handling Module

Product Description

The 0010-01412 is a vacuum wafer handling robot assembly designed and manufactured by Applied Materials for semiconductor processing equipment. It is built for operation inside high-vacuum process chambers, featuring precision mechanical arms, end effector and integrated drive units for wafer transfer. The assembly adopts ultra-clean, low-particle construction to meet the strict contamination requirements of wafer fabrication. This part is widely used on legacy AMAT process tools; available units on market are surplus, used or refurbished spare assemblies for fab equipment maintenance.

Product Functions

• Precise pick-and-place transfer of silicon wafers between load locks, transfer chambers and process chambers under vacuum environment
• Multi-axis arm motion control to achieve accurate positioning of wafers with micron-level repeatability
• Low particle generation design to avoid introducing contaminants onto wafer surfaces during handling cycles
• Integrated position sensors and limit switches for motion homing, collision detection and overtravel protection
• Work with robot controller to execute predefined wafer transfer recipes and handle sequencing logic
• Vacuum compatible mechanical structure, resisting outgassing to maintain chamber vacuum level
• Provide real-time motion status and fault feedback to the tool host control system for equipment interlock protection

Application Scenarios

• Wafer transfer subsystem for Applied Materials semiconductor thin film deposition and etch processing tools
• 200mm or 300mm wafer handling inside vacuum transfer chambers in wafer fabrication fabs
• Preventive maintenance and spare replacement of AMAT legacy process platforms
• Semiconductor equipment overhaul, refurbishment and tool upgrade projects
• Failure replacement for original wafer robot assemblies with mechanical wear or position drift
• Spare inventory for semiconductor foundries and equipment service vendors maintaining old AMAT process tools

Common Problems

• Position offset and poor repeatability: wear of transmission components, belt aging or motor encoder drift
• Wafer slipping or dropping: worn end effector pad, surface contamination or incorrect suction pressure control
• Motion timeout or axis stall: mechanical binding, debris stuck in moving parts or motor drive failure
• Particle contamination issue: degraded seals, lubricant outgassing or scratched contact surfaces
• Vacuum leak around robot feedthrough: aging rotary seal, damaged O-ring or improper assembly torque
• Intermittent sensor fault: optical limit sensor contamination, wiring fatigue or connector pin oxidation
• Maintenance difficulty: high requirement for cleanroom disassembly and calibration, original spare parts supply limited
