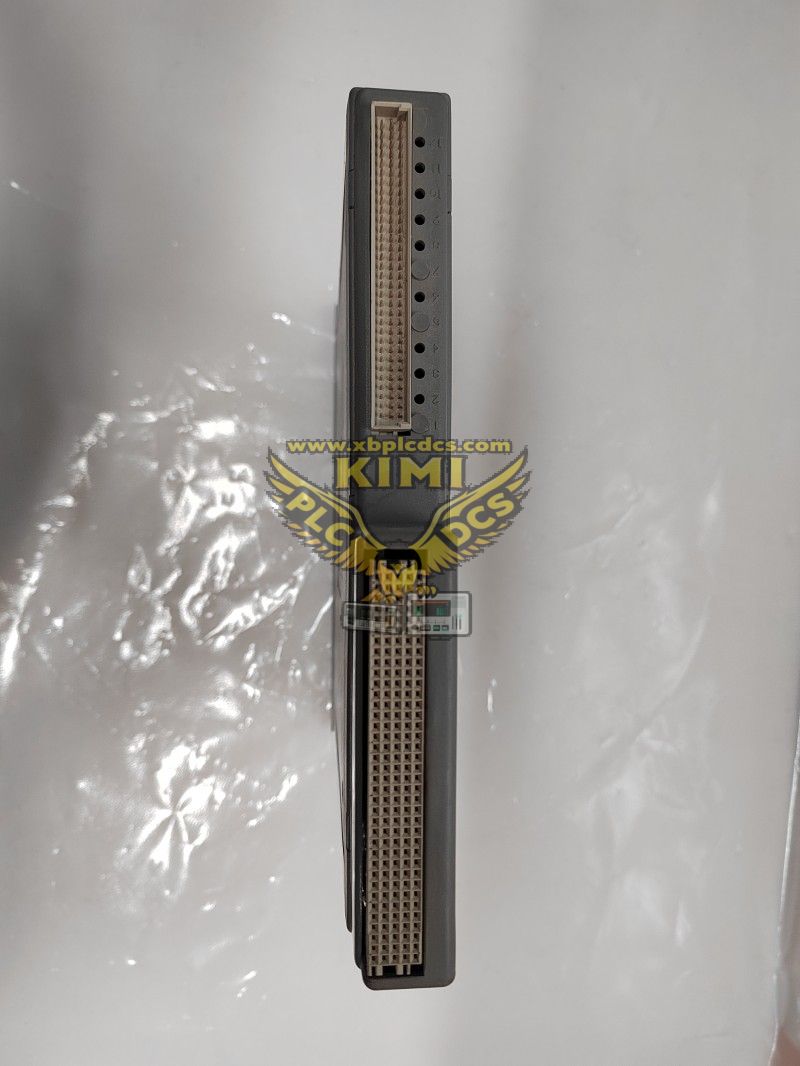

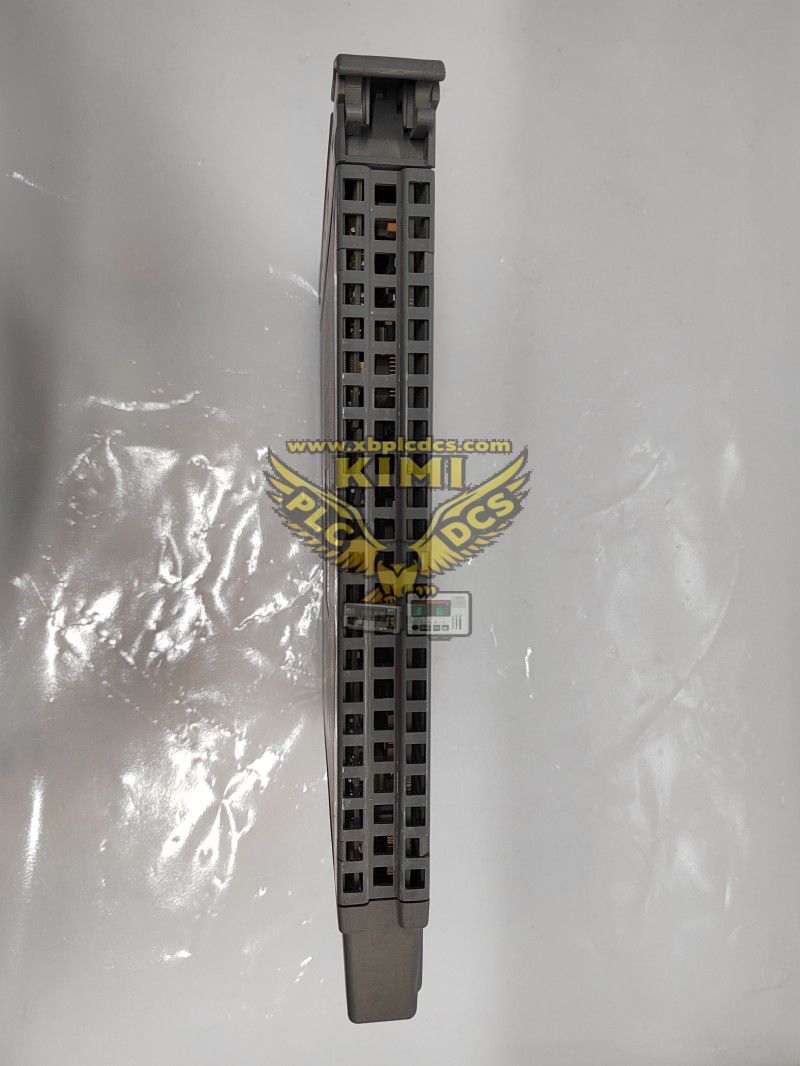

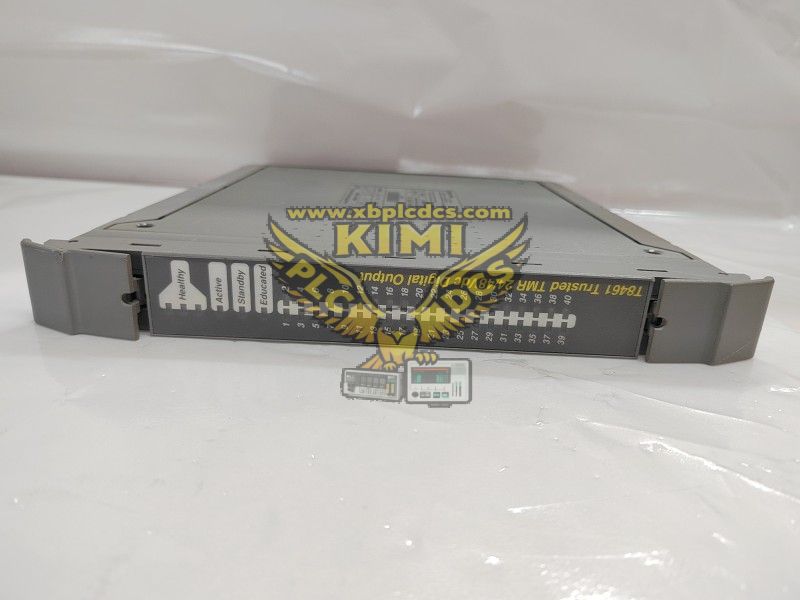

ICS TRIPLEX T8461 Digital Output Module--KIMI

Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

ICS Triplex T8461 | Trusted TMR 24/48 Vdc Digital Output Module

40-Channel TMR Digital Output Module for Safety-Critical SIL 3 Systems - Driving Solenoids, Relays & Actuators with Fault-Tolerant Precision

1. Product Overview

The ICS Triplex T8461 is a fully triplicated Triple Modular Redundancy (TMR) digital output module in Rockwell Automation's Trusted safety instrumented system (SIS), delivering 40 channels of 24/48 Vdc output for driving field devices (solenoid valves, relays, indicators) in safety-critical SIL 3 applications (IEC 61508/IEC 61511 compliant). It features 5 independent power groups (8 channels each) for isolated field power distribution, with 0.75A per channel and 6A per group current ratings, plus electronic short-circuit protection and automatic line monitoring to detect open/short field wiring faults. The module uses HIFT TMR architecture (3-2-0 operation) with comprehensive diagnostics, on-board 1ms SOE reporting, and dual redundant 24 V DC power from the controller chassis backplane (-40°C to +70°C operating range). Ideal for oil & gas, petrochemical, nuclear, and chemical industries, it ensures fault-tolerant output control and rapid fault isolation to maximize system availability in 24/7 operations.


Key Specifications

• Model: T8461 | ICS Triplex Trusted TMR 24/48 Vdc Digital Output Module

• Architecture: HIFT TMR (Triple Modular Redundancy) for 3-2-0 fault-tolerant operation

• Channels: 40 TMR digital outputs; 5 independent power groups (8 channels each)

• Field Voltage: 18–60 Vdc (supports 24/48 Vdc field devices); System Supply: 20–32 Vdc (dual redundant 24 Vdc)

• Current Ratings: 0.75 A per channel; 6 A per power group; Min On-State Load: 25 mA

• Protection: Electronic latching short-circuit protection; Automatic line monitoring (open/short detection)

• Timing: 1 ms SOE resolution; ±0.5 ms timestamp accuracy; 0.5 ms turn-on/off delay

• Environmental: Operating: -40°C to +70°C (-40°F to +158°F); Storage: -40°C to +85°C; Humidity: 5–95% (non-condensing)

• Mechanical: 3U rack-mount (Trusted controller chassis); Dimensions: 222mm × 133mm × 56mm; Weight: 1.7 kg (3.75 lbs)

• Certifications: IEC 61508 (SIL 3), IEC 61511, CE, RoHS compliant


2. Core Features

• HIFT TMR Architecture: Hardware-implemented triple modular redundancy for 3-2-0 operation, ensuring output integrity during single-channel failures

• Independent Power Groups: 5 isolated groups for flexible field power distribution and fault containment

• Comprehensive Diagnostics: Automatic line monitoring (open/short detection); triplicated current/voltage measurements per channel

• Precision Timing: 1 ms SOE reporting for event tracking; fast 0.5 ms turn-on/off delay for real-time control

• Hot-Swappable Design: Module replacement without system shutdown, minimizing maintenance downtime

• Robust Protection: Electronic latching short-circuit protection; 33 kΩ off-state leakage resistance; 0.6 Ω on-state resistance

• SIL 3 Compliance: Meets IEC 61508/IEC 61511 standards for safety-critical applications requiring high integrity


YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders.

3. Typical Applications

• Oil & Gas: Offshore platform ESD valve control; pipeline shutdown systems with distributed solenoid actuation

• Petrochemical: Refinery F&G alarm systems; reactor safety interlocks driving emergency shutdown valves

• Power Generation: Nuclear plant safety system actuation; thermal power unit BMS with critical relay control

• Chemical: Hazardous material handling valve control; batch process emergency stop (E-Stop) actuation

• Marine: FPSO safety control systems; ship engine ESD with redundant digital output actuation


4. Installation & Maintenance

Installation: Mount in controller chassis I/O slot; connect dual redundant 24 Vdc system power; wire field power to 5 power groups; connect output channels to field devices; power on and verify LED status (Healthy: Green; Channel Fault: Amber; Power Group Fault: Red).

Maintenance: Weekly: Inspect LED indicators for channel/power group faults; Monthly: Test short-circuit protection and line monitoring; Annual: Review SOE logs, update firmware, and simulate TMR channel failures to validate voting logic.

Safety Notes: Use external intrinsic safety barriers for hazardous area connections; avoid exceeding 6 A per power group; validate TMR fault containment after configuration changes.
