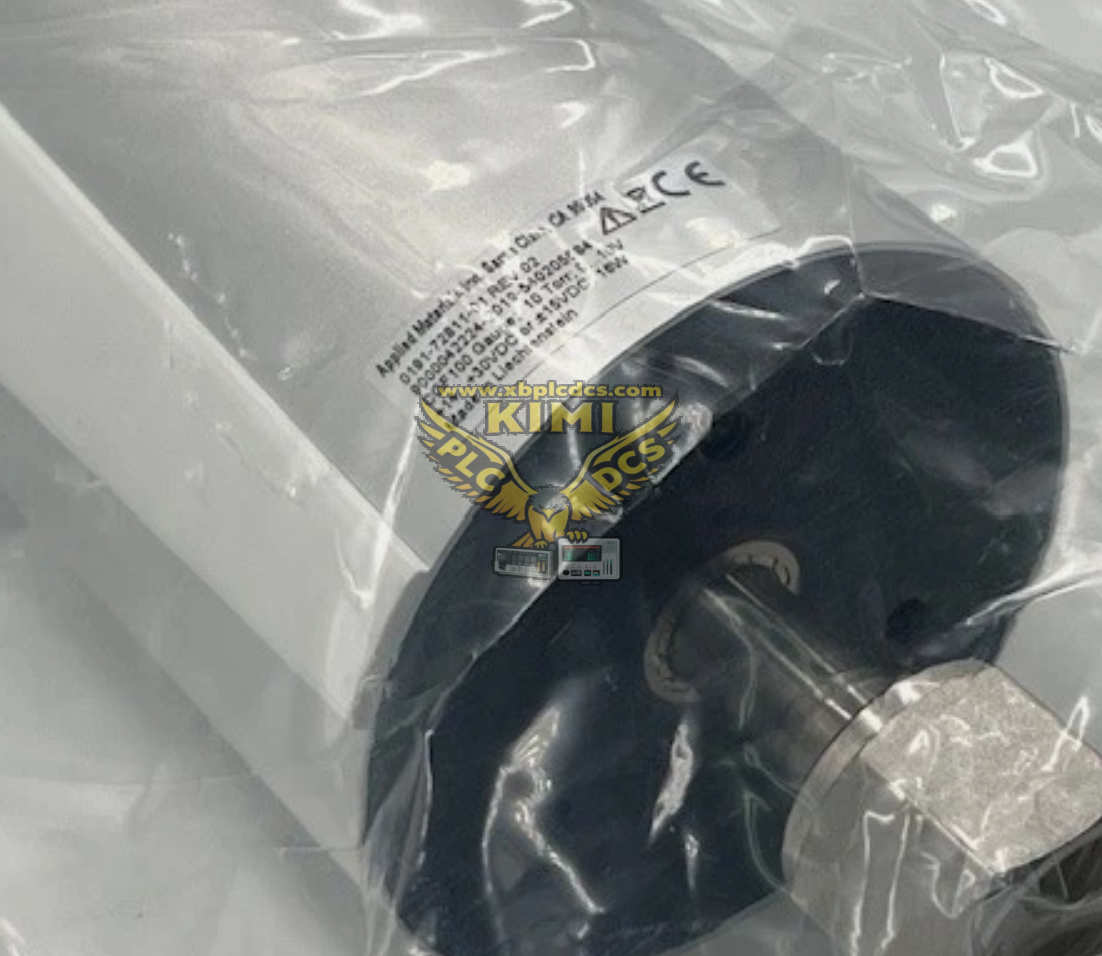

Applied Materials 0191‑72811‑01 Baratron Capacitance Manometer Pressure Gauge Assembly

Product Description

0191‑72811‑01 is MKS Baratron OEM capacitance manometer pressure transducer for Applied Materials semiconductor cluster tools. This high‑accuracy absolute‑pressure gauge employs capacitance‑diaphragm sensing principle for vacuum pressure measurement inside process chambers, load‑locks and fore‑line manifolds. It delivers analog pressure output signal to tool controller for real‑time vacuum monitoring, recipe interlock and pressure closed‑loop control. The unit is configured for clean‑room vacuum service, with metal sealed vacuum port, EMI‑shielded housing and temperature‑compensated sensing element. Widely fitted on Centura / Endura PVD, CVD and Etch platforms for 200 mm wafer manufacturing.

Key Functions

• Capacitance‑diaphragm absolute vacuum pressure measurement, high repeatability and thermal drift compensation
• Standard analog output signal for pressure telemetry to tool host controller; pressure value used for recipe start‑permission and vacuum interlock logic
• Integrated temperature compensation circuit to minimize measurement deviation under cabinet temperature fluctuation
• Metal seal vacuum interface compatible with high‑vacuum process environment, out‑gassing controlled for semiconductor clean‑process requirements
• Built‑in sensor health self‑diagnostic; reports fault status via analog status bit for tool fault logging
• Provides pressure trigger conditions for pump‑down sequence, chamber vent, plasma ignition enable interlock

Application Scenarios

• Applied Materials Centura, Endura PVD, CVD, Etch cluster process tools
• Process chamber high‑vacuum monitoring, load‑lock pump‑down / vent cycle pressure feedback
• Fore‑line and manifold vacuum pressure measurement for vacuum subsystem control
• 200 mm wafer clean‑room high‑volume semiconductor fabrication environment

Common Issues & FAQ

• Pressure reading drift / offset error: Perform zero‑point calibration under true high‑vacuum condition; check gauge operating ambient temperature stability; inspect diaphragm contamination from process by‑product deposition.
• Unrealistic high‑pressure reading under pump‑down: Check for vacuum leak at gauge port metal‑seal fitting; inspect sensor diaphragm film‑layer deposition; verify gauge full‑scale range matches tool recipe configuration.
• No pressure output / tool reports gauge fault: Inspect 15‑24 VDC power supply, signal cable harness and connector pin integrity; check for EMI noise coupling on analog signal wiring.
• Interlock cannot satisfy, recipe hold: Cross‑validate reading against secondary vacuum gauge; confirm zero‑calibration validity; check for slow chamber leak rate.
• Refurbished / replacement unit note: After installation, execute vacuum zero calibration, full‑range pressure validation, interlock‑logic functional test before releasing to wafer production. Confirm gauge full‑scale range matches tool software configuration.
