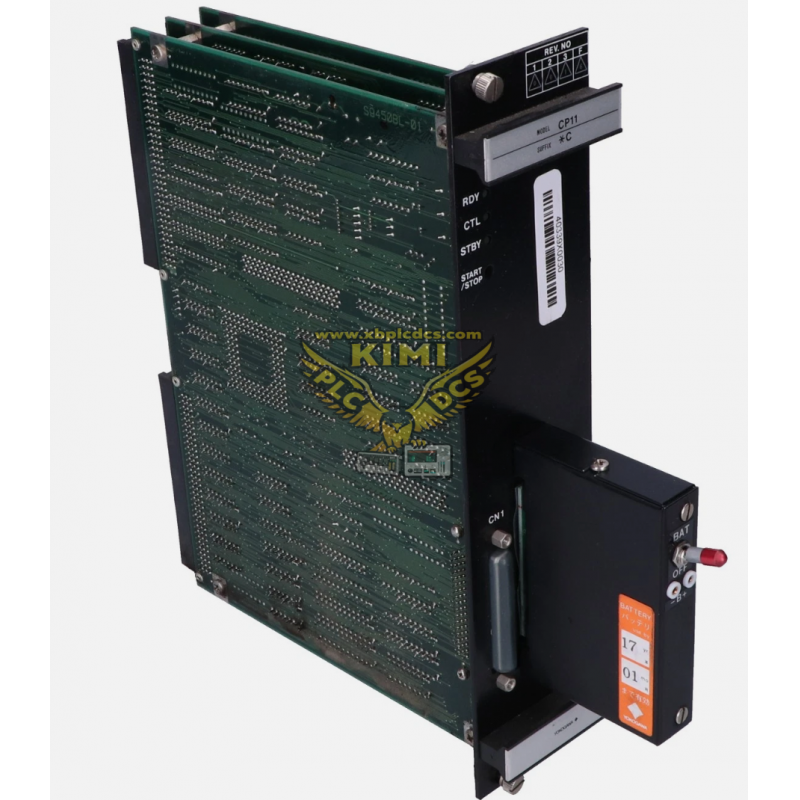

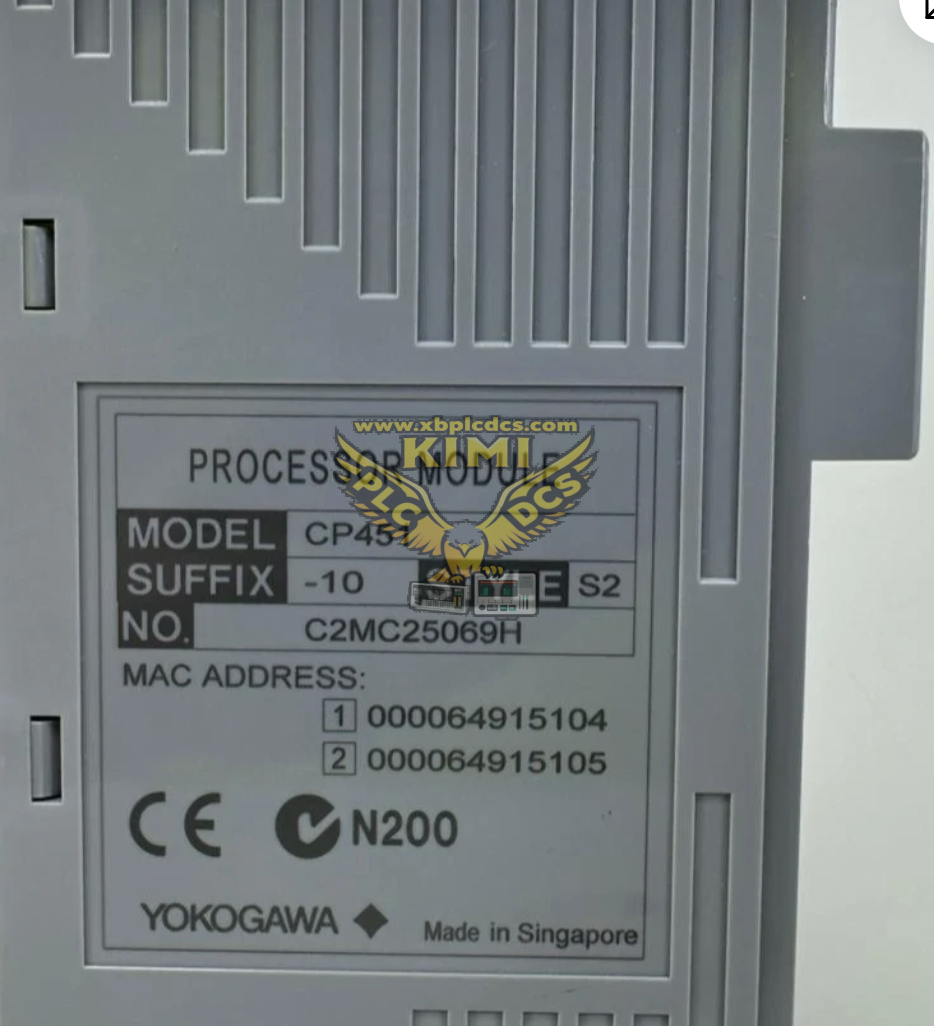

Yokogawa CP451‑11‑S2 Processor Module for CENTUM CS3000 DCS

Product Description

The CP451‑11‑S2 is a rack‑mounted main processor unit of Yokogawa CENTUM CS3000 DCS Field Control Station (FCS). It serves as the core CPU executing real‑time process control, logic calculation and system communication. Equipped with onboard RAM and flash memory, dual Ethernet ports and status LED indicators, this module supports dual redundant hot‑standby operation. The conformal coated circuit board and rugged mechanical structure adapt to continuous long‑term operation in factory control cabinets with vibration, dust and electromagnetic interference.

Product Functions

• Run continuous PID, cascade, sequence and advanced process control algorithms
• Collect digital and analog signals from local I/O modules and transmit control outputs
• Dual Ethernet communication with operation stations, engineering stations and other FCS units
• Support redundant CPU hot‑swap and bumpless switchover upon master failure
• Store control programs, configuration parameters and short‑term trend/alarm event logs
• Onboard self‑diagnosis for CPU, memory, bus, power and communication faults
• Real‑time status indication via front‑panel LEDs for quick maintenance inspection

Application Scenarios

• Oil & gas, refinery and petrochemical plant CENTUM CS3000 DCS control cabinets
• Thermal power plant boiler and turbine process monitoring and closed‑loop control
• Chemical, fertilizer and pharmaceutical continuous production process control systems
• Pulp, paper, water treatment and metallurgy industrial automation control stations
• On‑site replacement spare CPU for aging Yokogawa CS3000 FCS racks
• Large‑scale continuous manufacturing requiring high‑availability redundant control

Common Problems

• Module offline and cannot be recognized：backplane contact oxidation, damaged rack bus or configuration mismatch
• Redundant switchover failure：firmware inconsistency between primary and standby CPUs
• Intermittent communication dropout：Ethernet connector loose, network interference or cable aging
• Control program loss or parameter corruption：abnormal power cut or flash memory degradation
• CPU overheating alarm：dust accumulation on circuit board and poor cabinet ventilation
• Slow control response and heavy CPU load：overcomplicated control logic or program loop error
• Power‑on startup failure：24VDC power fluctuation or onboard power circuit damage
