1. Product Description

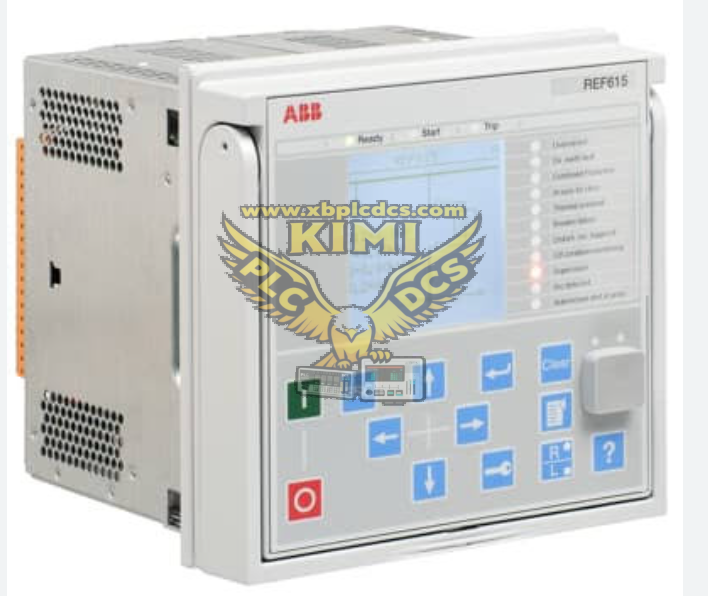

The REU-615 is a multifunctional voltage and frequency protection Intelligent Electronic Device (IED) belonging to ABB Relion® 615 series, designed for medium voltage distribution substations, power generators, transformers and busbar supervision. The ordering code HBUAEAADABC1BNN11G defines its hardware layout, communication ports, input/output quantity, power supply, mounting type and software configuration: standard front LCD panel, dual Ethernet communication, binary I/O expansion, DC auxiliary power supply, flush panel mounting, preloaded busbar voltage supervision software (Configuration A).

This pluggable modular IED integrates full protection algorithms, transformer OLTC automatic voltage regulation, synchrocheck, load shedding and disturbance recording functions. It supports global substation communication standards including IEC 61850 GOOSE, Modbus TCP, DNP3 and IEC 60870-5-103. The unit complies with IEC 60255, ANSI C37.90 safety standards, with operating temperature range -20°C ~ +55°C, IP54 front panel protection for switchgear cabinet installation.

Two core factory pre-configured modes:
• Configuration A: Busbar voltage/frequency monitoring, generator loss-of-mains protection, multi-stage priority load shedding.
• Configuration B: Transformer on-load tap changer (OLTC) automatic voltage regulation with transformer thermal overload protection.

2. Core Product Functions

• ANSI Standard Voltage & Frequency Protection Suite
  27 Undervoltage, 59 Overvoltage, 59G Residual Earth Overvoltage, 81O/U Over/Under Frequency, 47 Negative Sequence Voltage protection for busbars, generators and capacitors to prevent equipment insulation breakdown and grid collapse.
• Automatic Load Shedding & Restoration
  5-level priority load disconnection logic triggered by voltage/frequency drop; auto reconnection of non-critical loads after grid recovery, fully configurable via PCM600 engineering tool.
• Synchrocheck (25) Parallel Switching Control
  Verify voltage magnitude, phase angle and frequency matching before generator/grid breaker closing to avoid out-of-phase parallel impact damage.
• Transformer OLTC Voltage Regulation (Config B)
  Auto tap up/down control for transformers with motorized on-load tap changers; built-in tap position supervision, stall and overshoot protection to stabilize load-side voltage.
• Full System Supervision & Self-Diagnosis
  Monitor trip circuit continuity, VT fuse failure, CT secondary open circuit, internal IED hardware fault (IRF); lock misoperation of voltage-dependent protection when measurement circuit fails.
• IEC 61850 Digital Substation Communication
  High-speed GOOSE messaging for inter-IED tripping and interlock; support PRP/HSR redundant Ethernet; COMTRADE format disturbance recorder stores up to 100 fault records for post-fault analysis.
• Arc Flash Protection Logic
  Optional light sensor interface to detect cabinet internal arc faults, instant tripping to reduce arc flash hazard damage for medium voltage switchgear rooms.
• Measurement & Local HMI Control
  Real-time three-phase voltage, frequency, power factor monitoring; front LCD panel for local parameter setting, fault alarm display, breaker manual control and tap changer operation.

3. Typical Application Scenarios

• Medium Voltage Substation Busbar Supervision
  Monitor main bus voltage stability, execute automatic load shedding during grid under-frequency faults, trigger residual voltage earth fault alarms for switchgear insulation failure.
• Distributed Generator & Cogeneration Plants
  Loss-of-mains (islanding) protection, synchrocheck control for grid parallel breakers, over/under frequency protection for gas turbines, diesel generators and wind farm auxiliary equipment.
• Power Transformer Voltage Regulation
  Control OLTC tap changers for distribution and industrial power transformers, maintain stable low-voltage side output for factory and commercial power supply.
• Industrial Factory Power Distribution
  Protect capacitor compensation banks from overvoltage damage; coordinate multi-stage load shedding to preserve critical production equipment during utility grid outages.
• Hydro & Thermal Power Plant Auxiliary Systems
  Supervise station service bus voltage, protect auxiliary motors and pumps from abnormal voltage fluctuations, interlock with plant DCS via GOOSE communication.
• Mining & Petrochemical Hazardous Area Substations
  Arc flash protection, voltage fault monitoring for explosion-proof medium voltage switchgear, redundant communication for uninterrupted safety supervision.
