Product Description

ABB LDGRB-01 | 3BSE013177R1

Load Distributor & Generator Parallel Control Module for Multi-Unit Power Systems

1. Product Overview

The ABB LDGRB-01 (3BSE013177R1) is a dedicated load distributor and generator parallel control module, engineered to manage power sharing and synchronization of up to 16 generators in industrial power plants, marine vessels, and distributed generation systems (IEC 61850/IEEE 1547 compliant). It delivers ±1% load distribution accuracy, ±0.25% frequency regulation, and ±0.5% voltage control precision, with real-time monitoring of AC voltage (0-300V) and current (0-5A) for each unit. The module integrates dual CAN/RS485 communication ports for seamless integration with ABB UNITROL or third-party genset controllers, plus built-in overcurrent/overvoltage protection and thermal shutdown to ensure system stability during load transients. With a<100ms response time and -25°C to +70°C operating range, it excels in 24/7 critical power applications requiring high reliability and fast fault recovery.

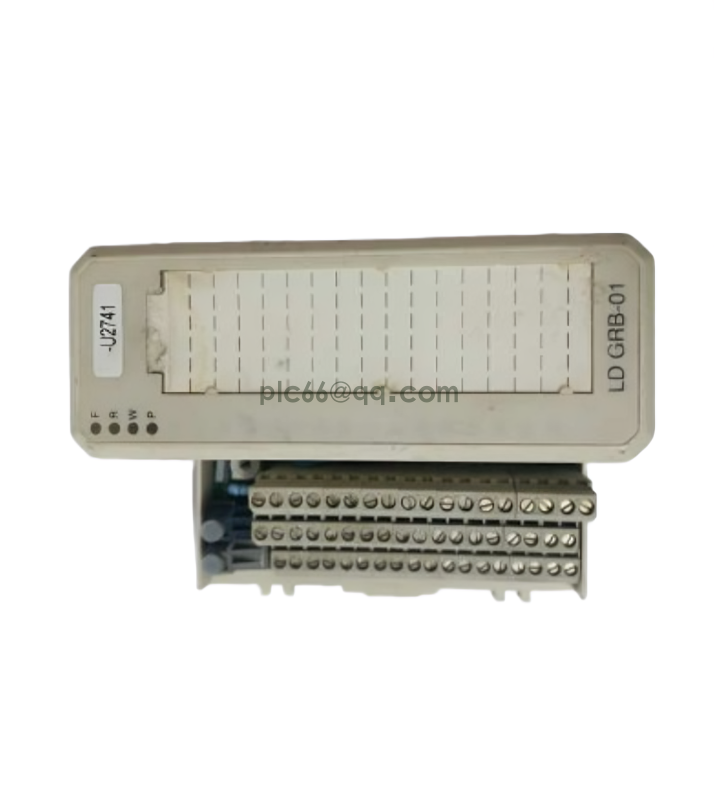

LDGRB-01 3BSE013177R1(1).png

Key Specifications

• Model: LDGRB-01 | Part Number: 3BSE013177R1

• Type: Load Distributor & Generator Parallel Control Module

• System Supply: 18–32 Vdc (24 Vdc nominal); Power Consumption:<5 W

• Load Distribution: Up to 16 generators; ±1% accuracy;<100 ms response time

• Regulation: Frequency ±0.25% (45–65 Hz range); Voltage ±0.5% (0–300 V AC measurement)

• Monitoring: AC Voltage 0–300 V; AC Current 0–5 A; Phase Angle & Frequency Sync

• Communication: Dual CAN Bus (ISO 11898) + RS485 (Modbus RTU); 1 Mbps max baud rate

• Protection: Overcurrent/Overvoltage Monitoring; Thermal Shutdown; Reverse Polarity Protection

• Environmental: Operating -25°C to +70°C; Storage -40°C to +85°C; Humidity 5–95% (non-condensing)

• Mechanical: DIN-Rail Mount; Dimensions 100×60×120 mm; Weight 0.5 kg (1.1 lbs); IP20 protection

• Certifications: IEC 61850, IEEE 1547, CE, RoHS Compliant

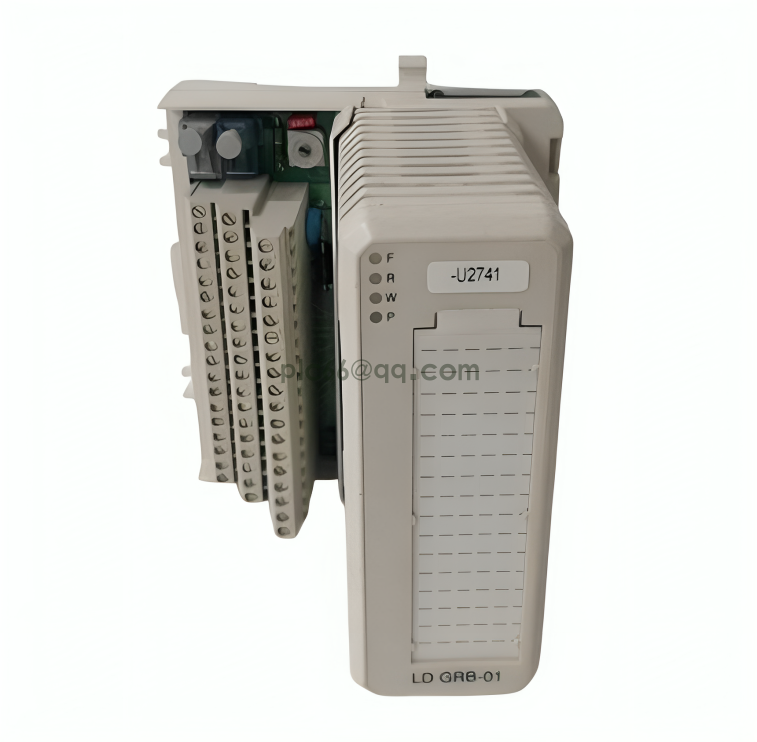

LDGRB-01 3BSE013177R1(4).png

2. Core Features

• Multi-Genset Scalability: Supports up to 16 parallel generators with automatic load balancing and synchronization

• Precision Regulation: ±0.25% frequency and ±0.5% voltage control for stable grid integration

• Dual Communication: CAN Bus (for real-time control) + RS485 (Modbus RTU for HMI/PLC integration)

• Fast Transient Response:<100 ms load adjustment to maintain frequency/voltage stability during step loads

• Comprehensive Diagnostics: LED status indicators (Power, Sync, Fault, Communication) + event logging

• Robust Protection: Overcurrent/overvoltage/thermal shutdown to prevent generator damage during faults

• Wide Compatibility: Works with ABB UNITROL and third-party genset controllers via open protocols

LDGRB-01 3BSE013177R1(3).png

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders

3. Typical Applications

• Power Plants: Grid-connected multi-unit load sharing; black-start synchronization; frequency support

• Marine: Vessel main/auxiliary genset parallel control; dynamic load management for propulsion systems

• Data Centers: Uninterruptible Power Supply (UPS) generator backup; load shedding during outages

• Oil & Gas: Offshore platform emergency power systems; FPSO genset parallel operation

• Industrial: Microgrid load distribution; cogeneration (CHP) plant synchronization with utility grids

LDGRB-01 3BSE013177R1(2).png

4. Installation & Maintenance

Installation: Mount on 35mm DIN rail; connect 24 Vdc power (reverse polarity protected); wire CAN/RS485 to genset controllers; connect voltage/current transformers (CT/PT); power on and verify LED status (Green=Power, Blue=Sync, Amber=Warning, Red=Fault).

Maintenance: Weekly: Check LED indicators and communication link; Monthly: Verify load distribution accuracy via HMI; Annual: Calibrate voltage/current sensors, update firmware, and test overload response.

Safety Notes: Use shielded twisted-pair for CAN/RS485 (min 1.5 mm²); isolate CT/PT circuits from control wiring; follow local electrical codes for high-voltage connections.
