BHEL UN0665AV1 Overexcitation & Protection Logic Module (PN: 69203SV1AA)

1. Product Description

UN0665AV1 with factory part number 69203SV1AA is a VME single-slot PCB card developed by BHEL for DATATRONIC static excitation control systems, belonging to the UN066x excitation control suite. It serves as dedicated generator over-excitation, under-excitation and reactive power limit protection board, matched with UN0660AV1 reference board, UN0661AV1 PT voltage sampling board, UN0662AV1 excitation current feedback board and UN0610AV1 auxiliary power supply to complete full compound AVR safety control logic. The suffix SV1AA is a standardized hardware revision variant of UN0665AV1. This vertical plug-in PCB adopts full conformal coating to resist dust, moisture and corrosive flue gas in thermal power plant control cubicles. It supports simplex and triple redundant TMR safety architecture, powered by 24VDC rack backplane bus. The dark metal front panel integrates multi-channel LED status indicators and front test terminals for reactive power calibration, dual metal ejector latches support hot-swap maintenance without full rack power shutdown. The rear high-density dual-row VME gold finger bus realizes high-speed bidirectional data exchange with DATATRONIC rack master CPU, complying with industrial EMC and power station safety standards. Net weight approx 450g.

2. Core Product Functions

• Reactive power (Q) and power factor calculation based on generator terminal voltage and excitation current signals
• Over-excitation limiter logic to suppress excessive rotor field current and prevent rotor overheating
• Under-excitation minimum excitation limit (MEL) algorithm to avoid generator loss of synchronism under leading power factor
• V/Hz over-flux protection coordination with UN0660AV1 reference card to limit generator core saturation
• Time-delayed excitation overload trip logic with inverse-time characteristic curve
• TMR redundant cross-voting: synchronize reactive power and limit calculation data with two identical UN0665AV1 modules to eliminate single-card deviation
• Galvanic isolation between high-current excitation field circuits and low-voltage digital logic to block heavy EMI interference from generator transformers
• Full self-diagnosis for signal input loss, internal power rail abnormality, VME bus communication failure and component drift
• Transmit real-time reactive power, excitation limit status, protection pre-alarm and trip fault codes to rack master CPU via VME bus, upload timestamped SOE records to plant DCS monitoring system
• Hot-swap compatible design for redundant excitation racks; faulty UN0665AV1 can be replaced online without interrupting generator voltage regulation operation

3. Application Scenarios

• Coal-fired thermal power plant steam turbine generator triple redundant static excitation control cabinets
• Combined cycle gas turbine power plant compound AVR voltage-current regulation racks
• Large hydropower station synchronous generator reactive power limit control panels
• Refinery, petrochemical and offshore platform captive power generation turbine excitation protection cubicles
• Heavy industry self-owned power plants equipped with BHEL DATATRONIC excitation control systems

4. Common Troubleshooting & Typical Issues

• Persistent Reactive Power Signal Loss Fault Alarm

  Causes: Damaged voltage/current sampling wiring, loose terminal block connections, burnt internal signal conditioning circuit on UN0665AV1. Solutions: Inspect cable continuity, retighten all field wiring terminals, test analog input channels via front test terminals or replace the module.

• Frequent Under-Excitation Limit Pre-Trip Alarm

  Causes: Incorrect MEL threshold parameters set on UN0665AV1, signal distortion from degraded isolation transformers, mismatched PID tuning with UN0660/661/662AV1. Solutions: Recalibrate reactive power calculation channels, adjust minimum excitation limit parameters per generator datasheet, synchronize compound AVR control gains across all DVR cards.

• TMR Voting Discrepancy Deviation Alarm

  Causes: Uneven signal attenuation of three measurement loops, inconsistent factory calibration offsets of three UN0665AV1 modules, oxidized VME backplane gold finger contacts. Solutions: Recalibrate Q calculation offset for each protection card, standardize field cable length and double-shielded wiring specifications, clean backplane connectors with anti-static lint-free cloth.

• Module FAIL LED Steady Red, Unrecognized by Rack Master CPU

  Causes: Unstable 24VDC rack input voltage, blown on-board auxiliary fuses, corrupted internal protection logic, damaged VME bus interface circuits. Solutions: Stabilize rack DC power supply, inspect input fuses, reload factory calibration firmware or replace defective UN0665AV1 module.

• False Over-Excitation Protection Trip Under Normal Load

  Causes: Drifted current sampling calibration offset, damaged internal EMI filter capacitors introducing measurement noise. Solutions: Recalibrate excitation current feedback channels, replace UN0665AV1 if filter and isolation circuits are degraded.

5. Physical Appearance Supplementary Note

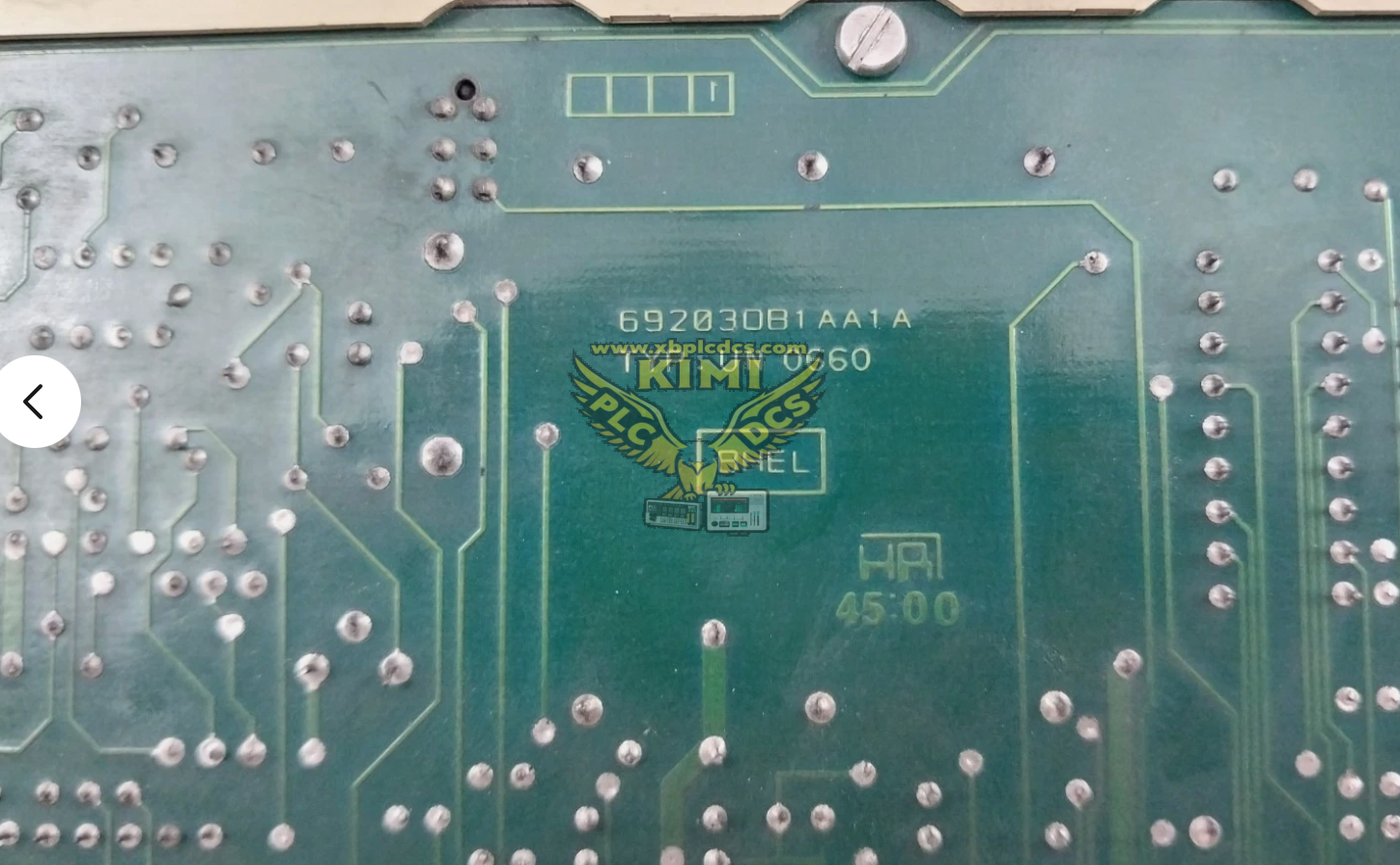

UN0665AV1 shares identical mechanical dimensions, dark gray metal front panel layout, dual metal ejector latches and VME backplane connector with UN0660AV1, UN0661AV1, UN0662AV1 and UN0610AV1. There are no distinguishable exterior visual differences; functional differentiation only exists in internal PCB protection logic circuits, which cannot be identified from external appearance alone. The module uses standard single-slot vertical VME form factor fully compatible with all DATATRONIC excitation rack slots.
