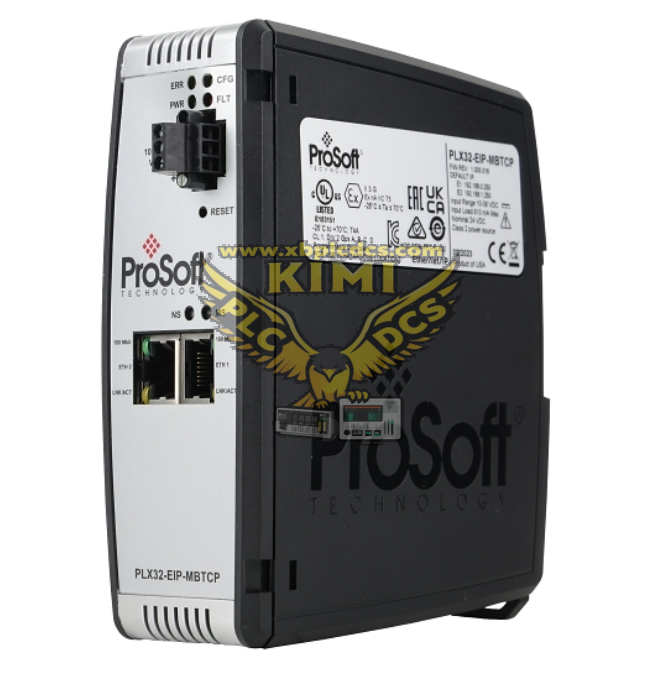

ProSoft PLX32-EIP-MBTCP Gateway Module--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
Product: ProSoft PLX32-EIP-MBTCP – EtherNet/IP to Modbus TCP Gateway Module
ProSoft Technology PLX32-EIP-MBTCP Industrial Protocol Translator for EtherNet/IP & Modbus TCP Network Interconnection
PLX32-EIP-MBTCP is an industrial-grade bidirectional protocol gateway developed by ProSoft Technology. It realizes seamless data conversion and transparent data transmission between EtherNet/IP industrial Ethernet network and Modbus TCP Ethernet protocol network. This gateway acts as a bridge for Rockwell Allen‑Bradley PLC, PAC systems communicating with Modbus TCP devices including inverters, meters, flow transmitters, data loggers, third-party PLCs and remote IO modules. It supports high-speed cyclic data exchange, independent network isolation, built-in data mapping table, and works stably in industrial harsh environments to solve heterogeneous network communication barriers in factory automation, power monitoring and process control systems.
Core Technical Specifications
- Model Number: PLX32-EIP-MBTCP | Manufacturer: ProSoft Technology | Product Series: PLX32 Gateway Series
- Protocol Support: EtherNet/IP Adapter/Client mode, Modbus TCP Server/Client bidirectional conversion
- Ethernet Interface: Dual independent 10/100 Mbps auto-sensing RJ45 ports with built-in isolation transformers
- Supported Modbus Data Type: Coils, Discrete Inputs, Input Registers, Holding Registers with flexible address offset configuration
- EtherNet/IP Connection: Support multiple implicit and explicit EtherNet/IP connections for real-time I/O data exchange
- Power Supply: 24VDC nominal input voltage, allowable operating range 18VDC ~ 30VDC, typical power consumption ≤3.5W
- Configuration Mode: Web-based built-in web server + ProSoft Configuration Builder (PCB) software for parameter setup and data mapping
- PCB Protection: Conformal coated circuit board against dust, moisture and chemical vapors inside control cabinets
- Operating Environment: Working temperature -20°C ~ +70°C; storage temperature -40°C ~ +85°C; relative humidity 0–95% non‑condensing
- Installation Method: Standard DIN rail mounting, compact industrial shell with vibration-resistant structure
- Certifications: UL508, CE, FCC Class A industrial certification, conform to industrial EMC anti-interference standards
- Physical Dimension: Standard DIN rail module size with LED indicators for power, network link, communication status and fault alarm
Main Functional Features
- Bidirectional real-time data mapping, supporting one-to-many and many-to-one data transmission between EtherNet/IP controllers and Modbus TCP field equipment
- Dual Ethernet physical port isolation effectively prevents network storm and fault spreading between two different protocol networks to improve system safety
- Support configurable data polling rate, timeout detection and connection automatic reconnection mechanism to ensure stable long-term communication
- Embedded webpage diagnostic page for real-time viewing of communication packet statistics, error codes and link running status without extra configuration software
- Compatible with mainstream Rockwell ControlLogix, CompactLogix, Micro800 series PLC and all standard Modbus TCP compliant third-party devices
- Non-volatile memory saves all configuration parameters after power failure; configuration files support export and import for quick batch replacement deployment
- Comprehensive communication fault diagnosis including link break, response timeout, illegal address access and data format error with corresponding status feedback
- Compact DIN rail installation saves cabinet layout space and adapts to standard industrial control cabinet wiring specifications
- Built-in Ethernet surge protection circuit to resist instantaneous voltage surge interference caused by field device startup and power grid switching
Application Industries
- Automotive & General Manufacturing: Production line PLC networking transformation connecting Rockwell control system with Modbus TCP sensors and drives
- Water & Wastewater Treatment Plants: Communication gateway for pump control cabinets, flow meters and water quality monitoring instruments
- Thermal Power & Combined Cycle Plants: Data interaction between turbine control system and Modbus TCP intelligent measuring instruments
- Oil & Gas Pipeline Monitoring: Real-time data collection for remote pressure, temperature and flow Modbus field devices
- Building Automation & HVAC System: Protocol conversion for central air-conditioning control and intelligent power monitoring equipment
- Factory Equipment Retrofit & Maintenance: Standard replacement gateway for old protocol conversion modules during automation system upgrading
FAQ (Frequently Asked Questions)
- Q: Does PLX32-EIP-MBTCP support simultaneous multiple Modbus TCP slave devices access?
A: Yes, the gateway supports polling multiple Modbus TCP slave IP addresses synchronously, users can set independent polling intervals for each slave device via configuration software. - Q: Why does the module COMM LED keep flashing red after power on?
A: Main reasons include incorrect IP address segment setting, disconnection of network cable, unmatched data mapping addresses, Modbus slave no response or EtherNet/IP controller connection failure. - Q: Can configuration parameters be backed up and restored when replacing a new gateway?
A: Configuration files can be exported as local files through PCB software or built-in web page. The same file can be imported directly into the new module to finish deployment rapidly. - Q: Is it allowed to connect EtherNet/IP network and Modbus TCP network to the same LAN switch?
A: It is not recommended. The dual isolated Ethernet ports are designed for network isolation; crossing network layout will lose the original network isolation safety performance. - Q: What is the maximum transmission delay of real-time I/O data transmission?
A: Under reasonable polling parameter settings, the typical data transmission delay is controlled within 10ms, which can meet most real-time industrial process control requirements.
