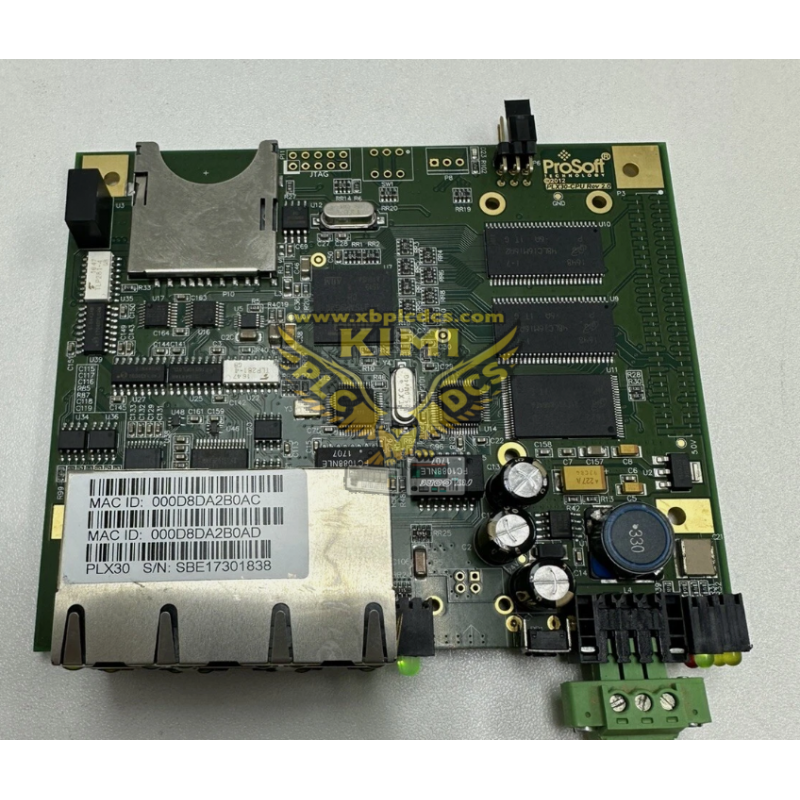

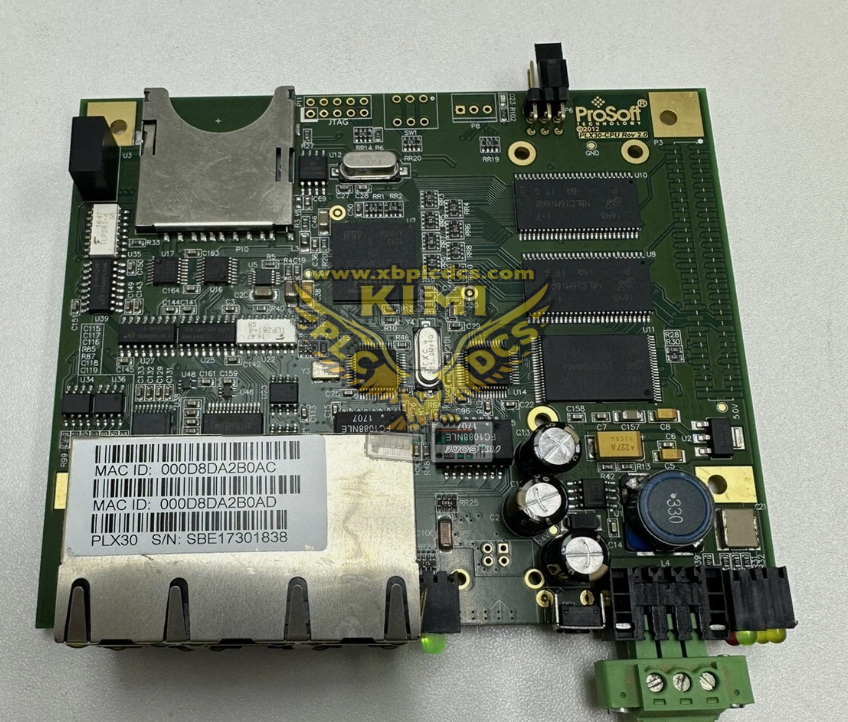

ProSoft PLX31-EIP-MBS EtherNet/IP to Modbus Serial Communication Gateway
1. Product Description
PLX31-EIP-MBS is a standalone DIN-rail mounted industrial protocol gateway manufactured by ProSoft Technology, designed to realize bidirectional data conversion between EtherNet/IP industrial Ethernet and Modbus serial (RTU/ASCII) protocols.
Core Hardware & Electrical Specifications:
1. Interfaces: 1×10/100Mbps isolated RJ45 EtherNet/IP port; 1 isolated multi-mode serial port (RS232/RS422/RS485 software configurable)
2. Power Supply: Wide-range DC 10~36V, rated 24VDC, max 610mA power consumption
3. Environmental Rating: Operating temperature -25℃ ~ +70℃, storage -40℃ ~ +80℃; 5G anti-vibration per IEC 60068-2-6, 5%~95% non-condensing humidity
4. Isolation: 1500Vrms Ethernet isolation, 2500Vrms serial port signal isolation
5. Mounting: Standard DIN rail installation for industrial control cabinets
6. Storage: Built-in SD card slot for offline configuration backup and disaster recovery
7. Origin: United States; Gross Weight: ~0.45kg
Protocol Support Details:
- EtherNet/IP Side: Works as Scanner/Adapter, supports Class 1 implicit I/O connections (up to 8 links, max 248-byte input/output), Class 3 explicit messaging, compatible with Rockwell ControlLogix, CompactLogix and other EtherNet/IP PACs; embedded EDS file for rapid RSLogix integration
- Modbus Serial Side: Configurable as Master or Slave, supports full Modbus RTU (CRC16) / ASCII (LRC) function codes; baud rate range 110~115200bps, supports 1~247 Modbus slave addresses on RS485 bus
2. Core Product Functions
- Bi-Directional Protocol Translation Converts CIP EtherNet/IP industrial Ethernet data to Modbus serial register/coil data in real time, enabling seamless data exchange between modern Rockwell PLC systems and legacy serial Modbus field devices without custom programming.
- Dual Operation Mode Flexibility Can be set as EtherNet/IP Scanner + Modbus Master to collect data from Modbus sensors/meters; or EtherNet/IP Adapter + Modbus Slave to transmit PLC control commands to serial Modbus actuators.
- Optimized Industrial Bandwidth Management Supports multiple independent Class 1 I/O connections with configurable RPI intervals for control and status data separately, reducing Ethernet load and improving real-time performance.
- Rapid Commissioning with Embedded EDS Profile Preloaded EDS add-on profile eliminates manual file import in RSLogix/Studio 5000, shortens system debugging and integration time significantly.
- Offline Configuration Backup & Fast Recovery SD card slot stores complete gateway parameter files; in case of module failure, configuration can be restored to a replacement unit within minutes to minimize production downtime.
- Remote Network Discovery & Configuration ProSoft Discovery Service utility detects the gateway across different IP subnets, allowing remote IP assignment and parameter setup without local PC direct connection.
- Comprehensive Built-In Diagnostic System Multi-color LED indicators (PWR, ERR, FLT, CFG, EtherNet/IP link, serial TX/RX) display real-time communication status, fault alarms and module running state for on-site troubleshooting.
- Strong Industrial Anti-Interference Design Full electrical isolation between Ethernet and serial circuits, conformal coating compatible option, wide temperature tolerance for harsh factory, power plant and oil & gas cabinet environments.
3. Typical Application Scenarios
- Automotive & General Manufacturing Production Lines Connect Rockwell EtherNet/IP PLCs to Modbus serial power meters, frequency converters, pressure sensors and barcode readers on assembly stations.
- Power Generation & Substation Automation Bridge ControlLogix DCS systems with Modbus RTU energy analyzers, circuit breakers and transformer monitoring units in thermal power plants.
- Oil & Gas Onshore/Offshore Control Systems Retrofit legacy Modbus serial valve actuators, flow transmitters to modern EtherNet/IP-based main control cabinets.
- Water & Wastewater Treatment Plants Integrate EtherNet/IP PACs with Modbus pH sensors, dosing pumps, level transmitters and turbidity monitoring devices.
- Food & Beverage Processing Equipment Link Rockwell automation controllers to Modbus temperature controllers, weighing scales and packaging machine serial drives.
- Industrial Machine Retrofit & Upgrade Projects Modernize old Modbus serial machinery without replacing original field sensors, connect to new EtherNet/IP host control systems.
- Building HVAC & Central Facility Control Transmit Modbus serial air handler and chiller data to factory EtherNet/IP supervisory control platforms.
4. Common Faults & Troubleshooting Solutions
4.1 PWR LED Off, Module No Power Startup
Causes: Incorrect DC input wiring polarity; supply voltage out of 10~36VDC range; loose power terminal block. Solutions: Recheck positive/negative/GND wiring terminals; measure DC power supply output voltage; tighten DIN rail module power connectors firmly.
4.2 EtherNet/IP Communication Loss, NS/MS Fault LED Alarm
Causes: Damaged RJ45 Ethernet cable; mismatched IP address subnet; missing EDS profile in RSLogix; broken network switch port. Solutions: Replace industrial shielded Ethernet cable; reconfigure gateway IP to match PLC subnet; reload EDS file to programming software; test alternative switch port connection.
4.3 Modbus Serial No Data Exchange, TX/RX LEDs Not Flashing
Causes: Wrong serial mode (RS232/422/485) configuration; mismatched baud rate, parity and data bits between gateway and field device; loose serial terminal wiring; Modbus slave address setting error. Solutions: Verify serial port hardware mode and communication parameters; rewire RS485 A/B differential lines; cross-check Modbus slave address mapping in gateway configuration software.
4.4 Intermittent Modbus Data Loss & Unstable Register Values
Causes: Missing RS485 bus termination resistor; long serial cable without shielding; ground loop interference; excessive Modbus polling command count. Solutions: Install 120Ω termination resistor at bus endpoints; replace with shielded twisted serial cable; implement single-point ground for serial bus; reduce polling frequency of non-critical Modbus registers.
4.5 CFG Fault LED, Configuration File Corruption
Causes: Abnormal power cut during parameter saving; damaged SD card storage; invalid imported configuration command list. Solutions: Restore backup configuration from SD card; re-download parameter project via ProSoft configuration tool; format SD card and re-save valid project file.
4.6 FLT Hardware Fault LED Constant On
Causes: Module overheating from cabinet poor ventilation; serial port short circuit damaging internal isolation chip; permanent hardware component failure. Solutions: Clean cabinet cooling fans and improve heat dissipation; disconnect serial bus to check short-circuit faults; replace the gateway if hardware damage is confirmed after full reset.
5. Import & Compliance Supporting Documents
1. Customs Documents: Certificate of Origin (COO), Factory Certificate of Conformity (COC) 2. Safety Files: SDS/MSDS for industrial communication electronic module 3. Technical Data: Official datasheet, EDS configuration file, factory communication test report 4. HS Code: 85176290 Industrial Protocol Gateway Module 5. Country of Origin: United States; Gross Weight: ~0.45kg 6. Lead Time: In stock 1~3 working days; factory order 4~7 weeks 7. Matching Accessories: SD memory card, RS485 serial shielded cable, DIN rail mounting clips, terminal block connectors
