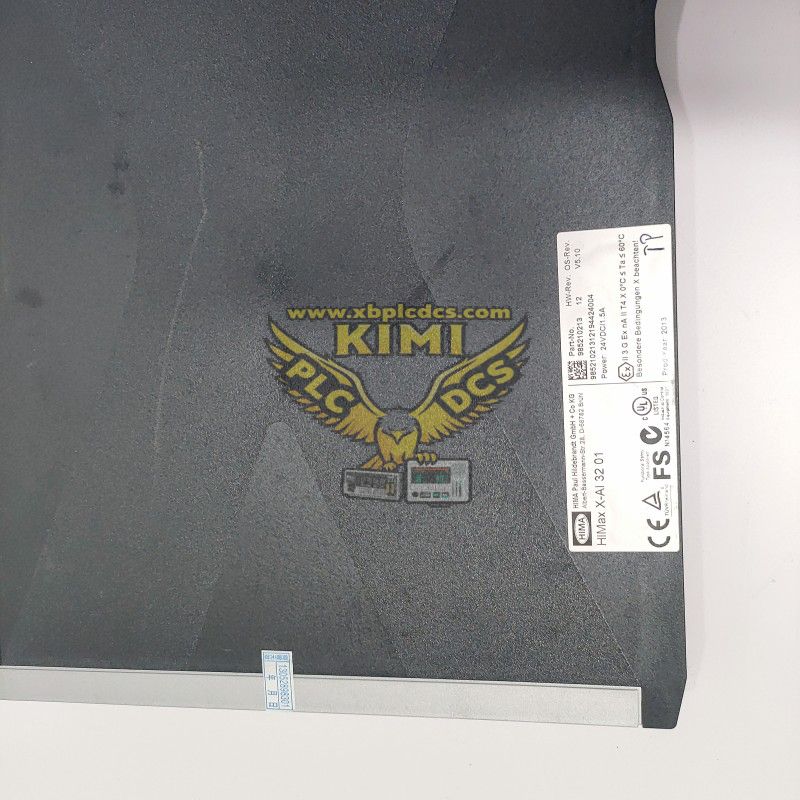

Manufactured by German safety automation brand HIMA, the X-AI3201 is a high-density analog input module specially designed for the HIMax programmable electronic safety system (PES) that meets SIL3 functional safety standards. Equipped with 32 common-ground analog input channels, it mainly collects 0/4–20mA standard current signals from field transmitters with a 200Ω built-in measuring shunt resistor. The module adopts full electrical isolation design between field signals, 24VDC power supply and system backplane bus to eliminate ground loop interference. It supports short-circuit-proof built-in transmitter power supply for two-wire and three-wire sensors, with 12-bit high-precision A/D conversion and 2ms fast sampling cycle. Installed in general slots of HIMax base plate rack (excluding dedicated system bus slots), it realizes real-time data interaction with safety CPU via rack backplane, and completes full-channel self-diagnosis and fault upload to ensure stable operation of safety interlock loops in harsh industrial environments.

• 32 independent analog current input channels, compatible with 4–20mA and 0–20mA industrial transmitters for temperature, pressure, flow and liquid level measurement
• 12-bit high-resolution analog-to-digital conversion, converting field analog signals into digital engineering values readable by HIMax safety CPU
• Built-in short-circuit protected transmitter power supply, each channel can supply power to field two-wire sensors without external auxiliary power modules
• Complete galvanic isolation between field side and system bus to suppress common-mode electromagnetic interference over 60dB at 50/60Hz frequency band
• Comprehensive per-channel fault diagnosis including wire break detection, short-circuit detection, signal over-range and under-range alarm
• Real-time measured value upload via high-speed backplane bus, sampling cycle as low as 2ms to meet fast-response safety control loop requirements
• Support user-defined scaling parameters to convert raw digital values into actual physical units such as ℃, bar and m³/h in safety logic programs
• Front panel LED indicators for module running status, hardware fault and individual channel abnormal alarm for on-site rapid troubleshooting
• Support redundant system configuration and hot-swap replacement without shutting down the whole safety rack under qualified redundant architecture

• Conformal coated circuit board to resist dust, moisture and oil mist in chemical, power and petrochemical cabinet environments

• Oil & Gas Industry: Safety monitoring system for refineries, natural gas pipelines and offshore platforms, collecting pressure, temperature and flow transmitter signals
• Thermal & Combined Cycle Power Plants: Turbine boiler safety interlock system for furnace temperature, steam pressure and water level analog signal acquisition
• Chemical & Petrochemical Plants: Hazardous process safety control, monitoring reaction tank liquid level, pipeline pressure and temperature sensors
• Coal Mining Industry: Underground gas concentration, water level and equipment temperature safety monitoring loops
• Pharmaceutical & Fine Chemical Factories: Explosion-proof production line safety parameter measurement and interlock protection
• Energy Storage & Hydrogen Production Facilities: Pressure and temperature monitoring of hydrogen storage tanks and electrolysis equipment
• Automation System Retrofit: Replacement analog input module for aging HIMax safety control racks during plant safety system upgrading

• Q: Can X-AI3201 directly read 0–10V voltage transmitters?
  A: This module is designed for current signal input only (0/4–20mA). External conversion circuit must be added to convert voltage signals to standard 4–20mA before wiring.
• Q: Why do multiple channels continuously trigger wire-break fault alarms after wiring all transmitters?
  A: Common causes include loose terminal wiring, damaged two-wire transmitter internal circuit, insufficient load resistance or abnormal internal transmitter power supply of the module.
• Q: Is hot swap allowed for X-AI3201 in single non-redundant HIMax rack configuration?
  A: Hot swap is forbidden for single-module non-redundant racks; power off the entire rack before disassembly to avoid safety system tripping. Hot swap is only supported under redundant dual-module architecture.
• Q: What is the maximum operating temperature range of the X-AI3201 module?
  A: Standard operating temperature range is 0°C ~ +60°C; storage temperature ranges from -40°C to +85°C, non-condensing humidity below 95%.
• Q: Does X-AI3201 meet SIL safety certification requirements?
  A: The module itself supports SIL3 safety integrity level evaluation when matched with complete HIMax redundant safety architecture, complying with IEC 61508 and IEC 61511 process safety standards.
• Q: How to solve severe jitter and unstable floating measured values of all analog channels?
  A: Check field cable shielding grounding status, confirm correct common-ground wiring of AI negative terminals, enable digital filter parameters in HIMax configuration software, and inspect ground loop isolation integrity of the module.
