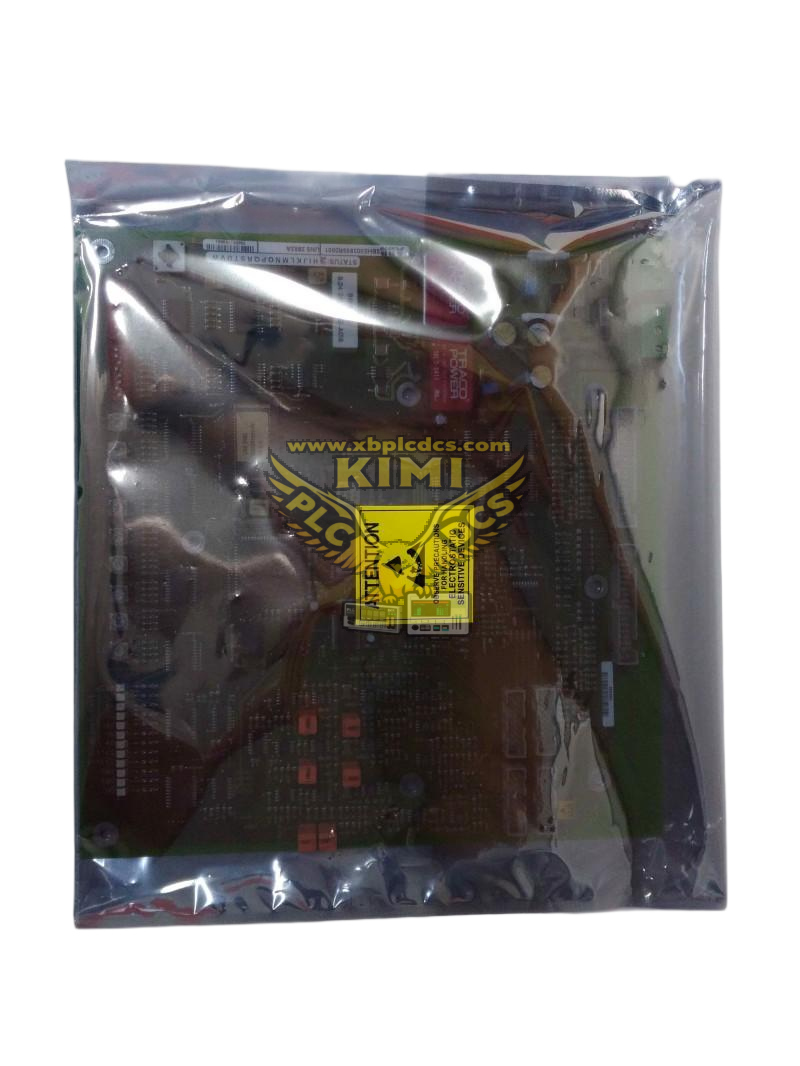

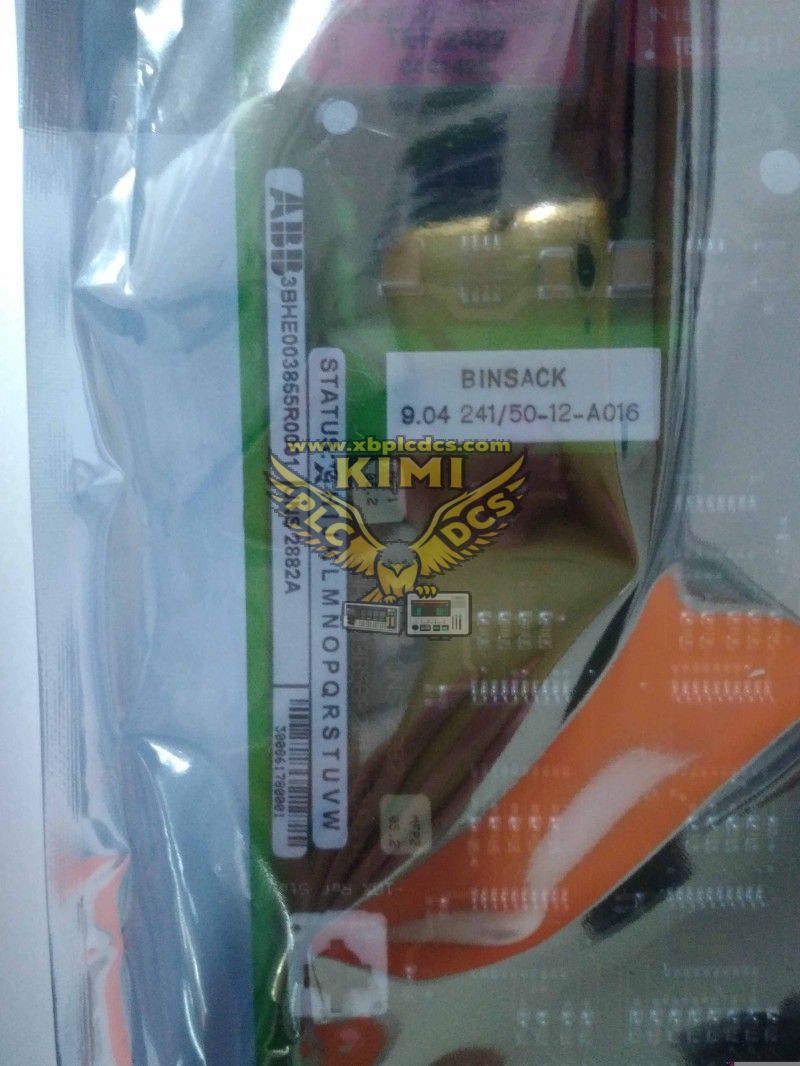

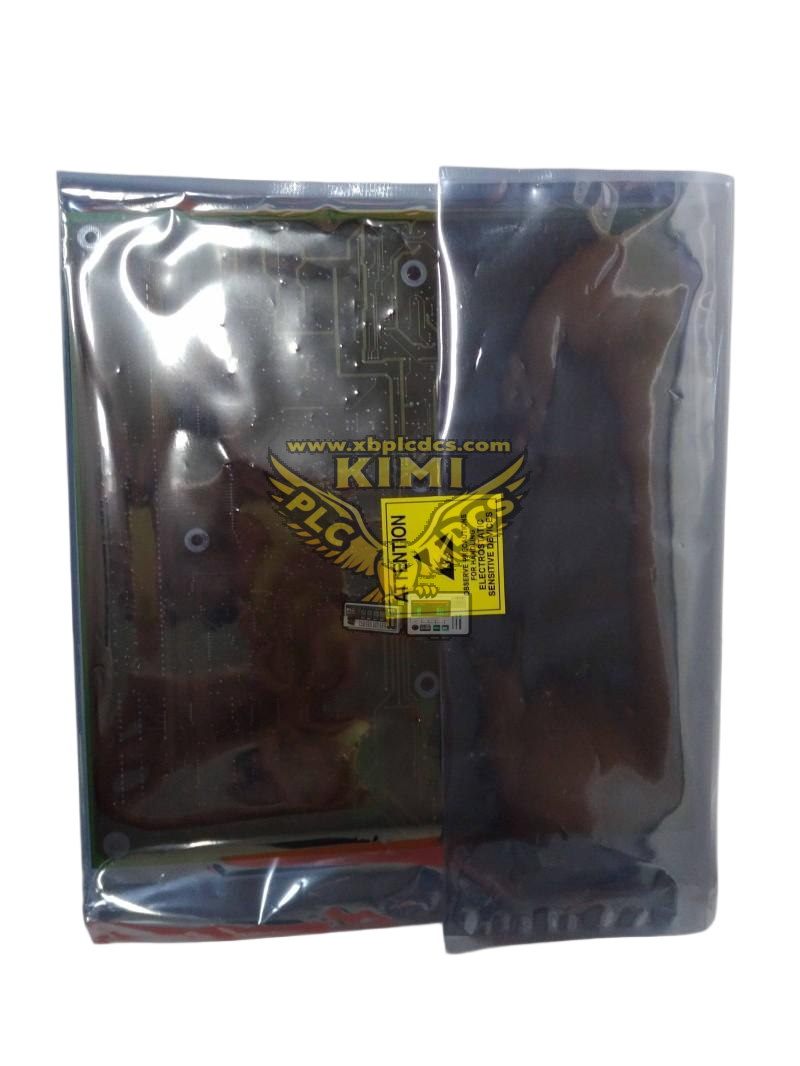

ABB UNS2882A-P,V1 3BHE003855R0001 Extended Gate Controller (EGC) Board--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
ABB UNS2882A-P,V1 3BHE003855R0001 Extended Gate Controller (EGC) Board
Gate Drive, Fault Protection & System Communication for ABB Industrial Automation Systems
1. Product Overview
The ABB UNS2882A-P,V1 3BHE003855R0001 is an Extended Gate Controller (EGC) Board designed for ABB Symphony Plus and industrial automation systems, widely applied in power generation, chemical, oil & gas, and other process industries. As a core gate drive and protection component of power electronic control systems, it is responsible for driving power semiconductor devices (IGBT, Thyristor), real - time fault monitoring (over - current, over - voltage, over - temperature), and communication with the main control unit, ensuring the stability, efficiency, and safety of power conversion and motor control processes. The board is fully compatible with ABB's control system architecture, has strong anti - interference ability and high reliability, and is an essential component for the safe and efficient operation of industrial control systems.
2. Key Technical Specifications
• Brand & Model: ABB UNS2882A-P,V1 (Order No.: 3BHE003855R0001)
• Product Type: Extended Gate Controller (EGC) Board - Completed PCB
• Core Function: Power Semiconductor Gate Drive, Fault Monitoring & Protection, System Communication
• Drive Devices: IGBT (600V/1200V/1700V), Thyristor (Up to 4.5kV)
• Gate Drive Channels: 6 Independent Channels (Isolated for Each Channel)
• Fault Protection: Over - Current, Over - Voltage, Over - Temperature, Under - Voltage Lockout
• Digital I/O Channels: 12 Inputs (Status Monitoring), 8 Outputs (Fault Interlock)
• Communication Interface: ABB Proprietary Bus, Profibus DP, RS - 485 (Modbus RTU)
• Power Supply: 24 V DC (Logic), ±15 V DC (Gate Drive Circuit)
• Power Consumption: 45 W (Max)
• Protection Class: IP20 (Control Cabinet Installation)
• Operating Temperature: -10°C to +55°C (14°F to +131°F)
• Storage Temperature: -40°C to +70°C (-40°F to +158°F)
• Dimensions (W×H×D): 280 × 240 × 30 mm (11.0 × 9.4 × 1.2 in)
• Weight: Approx. 0.32 kg (0.71 lbs)
• Certification: CE, UL, IEC 61010 - 1
3. Core Features
• Isolated Gate Drive: 6 Independent Isolated Channels to Prevent Cross - Interference Between Channels.
• Comprehensive Fault Protection: Multi - level Protection for Over - Current, Over - Voltage, Over - Temperature, and Under - Voltage Lockout.
• Fast Fault Response: Fault Detection & Interlock Response Time ≤ 1μs to Protect Power Devices.
• Strong Compatibility: Fully Compatible with ABB Symphony Plus and Advant OCS Systems.
• High Anti - interference Ability: Industrial - grade Circuit Design, Suitable for Harsh Industrial Electromagnetic Environments.
• Fault Self - diagnosis: Built - in Self - Test Function for Quick Fault Location and Troubleshooting.
• Easy System Integration: Support Hot - swapping for Online Maintenance and Replacement.
• Status Monitoring: Real - time Monitoring of Gate Drive Voltage, Current, and Temperature.
4. Typical Applications
• Power Generation: Generator Excitation System, Turbine Control, Static Var Compensator (SVC).
• Chemical Industry: High - Voltage Motor Drive, Reactor Temperature Control, Power Conversion System.
• Oil & Gas: Compressor Drive, Pipeline Pump Variable Frequency Control, Offshore Platform Power System.
• Petrochemical: Refinery Furnace Temperature Control, Centrifugal Compressor Drive.
• Metallurgy: Rolling Mill Motor Drive, Electric Arc Furnace Power Control, Rectifier System.
• Renewable Energy: Wind Turbine Converter Control, Solar Inverter Power Management.
5. Installation & Maintenance
• Mounting: Panel Mounting in Control Cabinet (Match with ABB Standard Chassis).
• Wiring: Connect Power Supply, Gate Drive Signals, Fault Detection Circuits, Communication Bus.
• Configuration: Set Drive Parameters (Voltage/Current), Fault Threshold via ABB Engineering Software.
• Calibration: Automatic Calibration via System Software; Regular Verification with Standard Signal.
• Diagnostics: LED Indicators for Power, Communication, and Fault Status; Support Remote Diagnosis.
• Maintenance: Regularly Inspect Wiring and Heat Dissipation; Hot - Swappable for Online Replacement.
Technical Document | ABB UNS2882A-P,V1 3BHE003855R0001 | Extended Gate Controller Board | Industrial Automation
