ACS6000 medium voltage AC drive
- Brand：ABB
- Part number：ACS6000 medium voltage AC drive
- Product Origin：Sweden
- Weight：1455KG
- HS CODE：85044090
- RMB Market price：7000000-12000000
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
The product introductions, technical data, logo patterns and other contents about the ABB brand included on this page/document are all sourced from the official public channels of ABB Group (including but not limited to ABB's official website, official product manuals, and compliant materials provided by authorized dealers). They are only used for identification purposes. If there are any objections to the use of this content, please contact us for removal.
| Abbreviation / Term | Full Name & Description |
|---|---|
| AC | Alternating Current |
| ACDA | Auxiliary Control Device Adapter |
| ACS6000 | ACS6000 medium voltage AC drive |
| ACU | Air Cooling Unit |
| AF100 | Advant Fieldbus 100. Communications interface between the I/O stations and the Advant Controllers |
| AI | Analog Input |
| AMC | Application and Motor Controller. A digital signal processor and the heart of the drive control system |
| AMCOS | Application and Motor Controller Operating System |
| ANSI | American National Standards Institute |
| AO | Analog Output |
| APU | Auxiliary Pump Unit |
| ARU | Active Rectifier Unit. Rectifies the voltage of the supply network to DC voltage and maintains the DC-link voltage at a constant level irrespective of supply network changes. Designed as a self-commutated, 3-level voltage source inverter with three identical phase modules. Allows regenerative braking |
| ASE | Anti Saturation Equipment |
| Azipod® | ABB’s electric propulsion system for ships |
| BCU | Braking Chopper Unit |
| BOD | Break Over Diode. Protects semiconductors such as thyristors and diodes against transient voltages |
| CBU | Capacitor Bank Unit |
| CCB | Converter Control Board |
| CDP | Control Panel. Serves as the basic user interface for operating and monitoring the drive when the local operating mode is selected. Also known as assistant control panel |
| CHU | Charging Unit |
| CIT | Conductivity Transmitter |
| CIU | Customer Interface Unit |
| CIW | Customer Interface Unit integrated into the Water Cooling Unit (WCU) |
| CNPN | CN stands for the cluster number of an S800 I/O device. PN stands for the position of an S800 I/O device within the cluster |
| Converter | Short form for ACS6000 frequency converter |
| COU | Control Unit. Consists of a control compartment and a customer interface compartment. The control compartment incorporates hardware for control, monitoring and protection functions of the drive and the communication interface to the door-mounted control panel |
| CW1 | Control Water System 1 |
| CW2 | Control Water System 2 |
| CVMI | Current and Voltage Measuring Interface |
| DBC | Drive Backup Control |
| DC | Direct Current |
| DC_NP | DC Neutral Point. Neutral point of the DC link of the drive |
| DCS | Acronym for the AC-to-DC converter or the three-phase AC power controller of an excitation unit |
| DDCS | Distributed Drive Control System. A serial communications protocol designed for data transfer via optical fibers |
| DI | Digital Input |
| DIN | Deutsches Institut für Normung (German Institute for Standardization) |

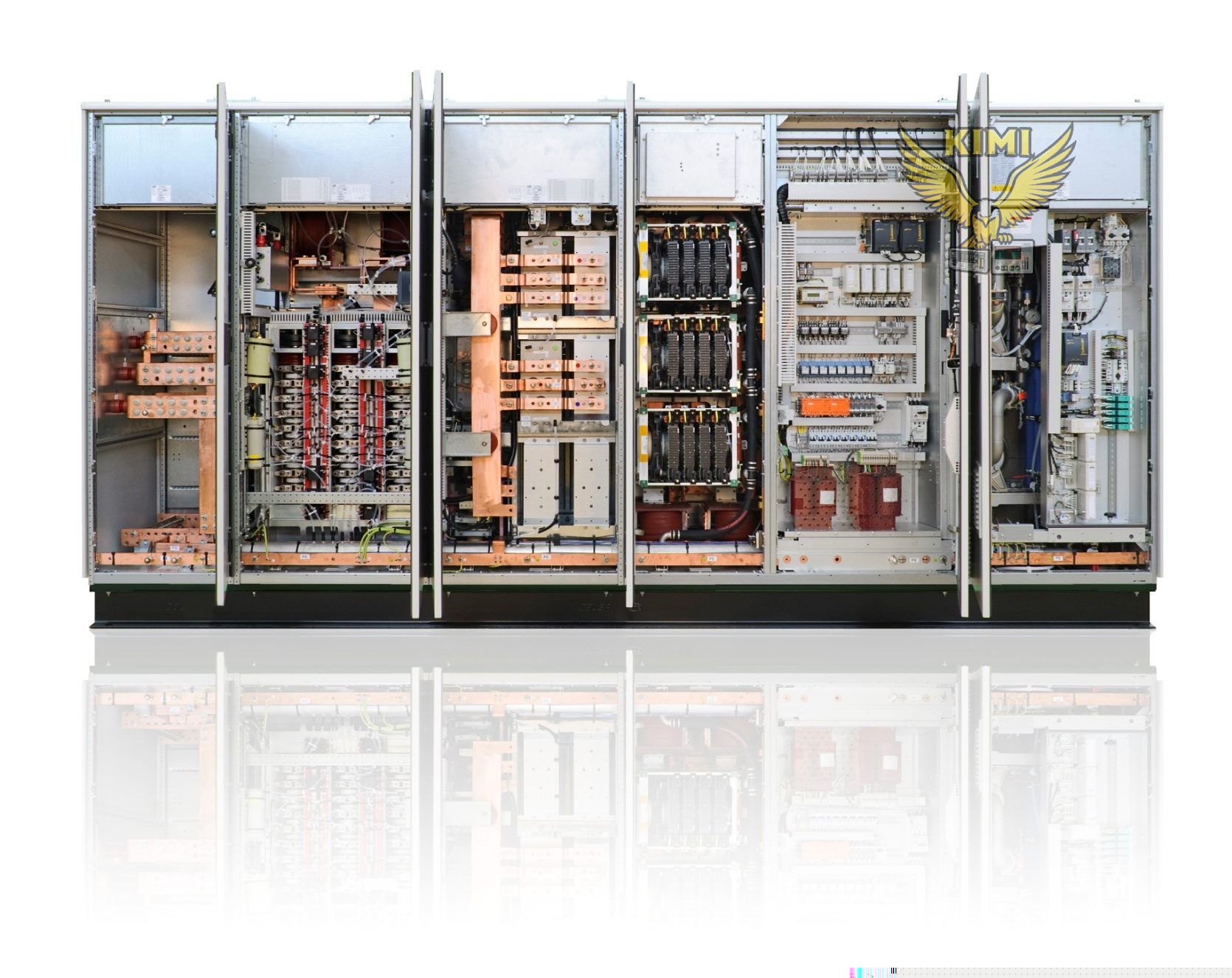

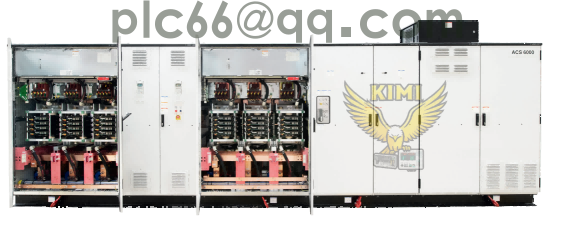

The drive has a flexible modular design with standard and optional cabinet units. Each cabinet unit is dedicated to a specific function.

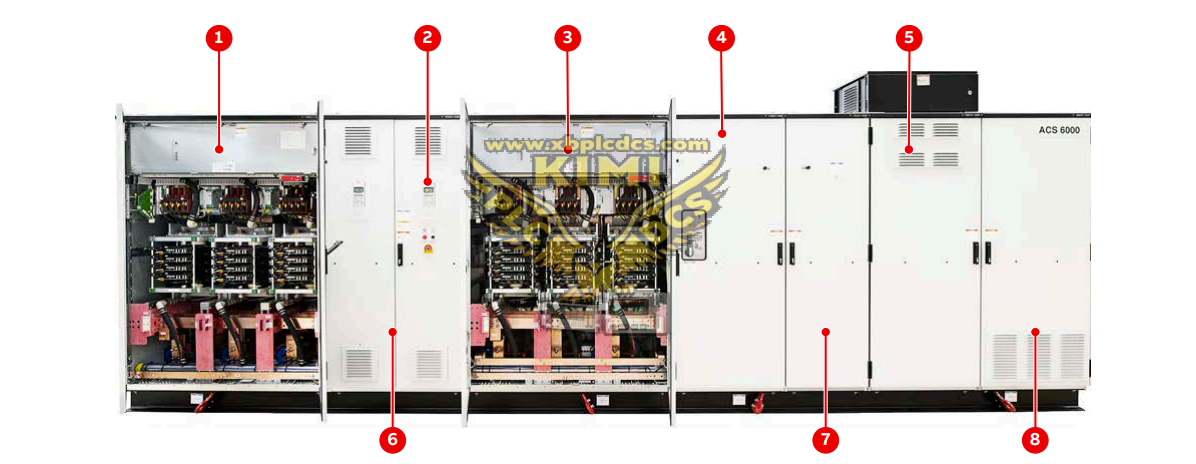

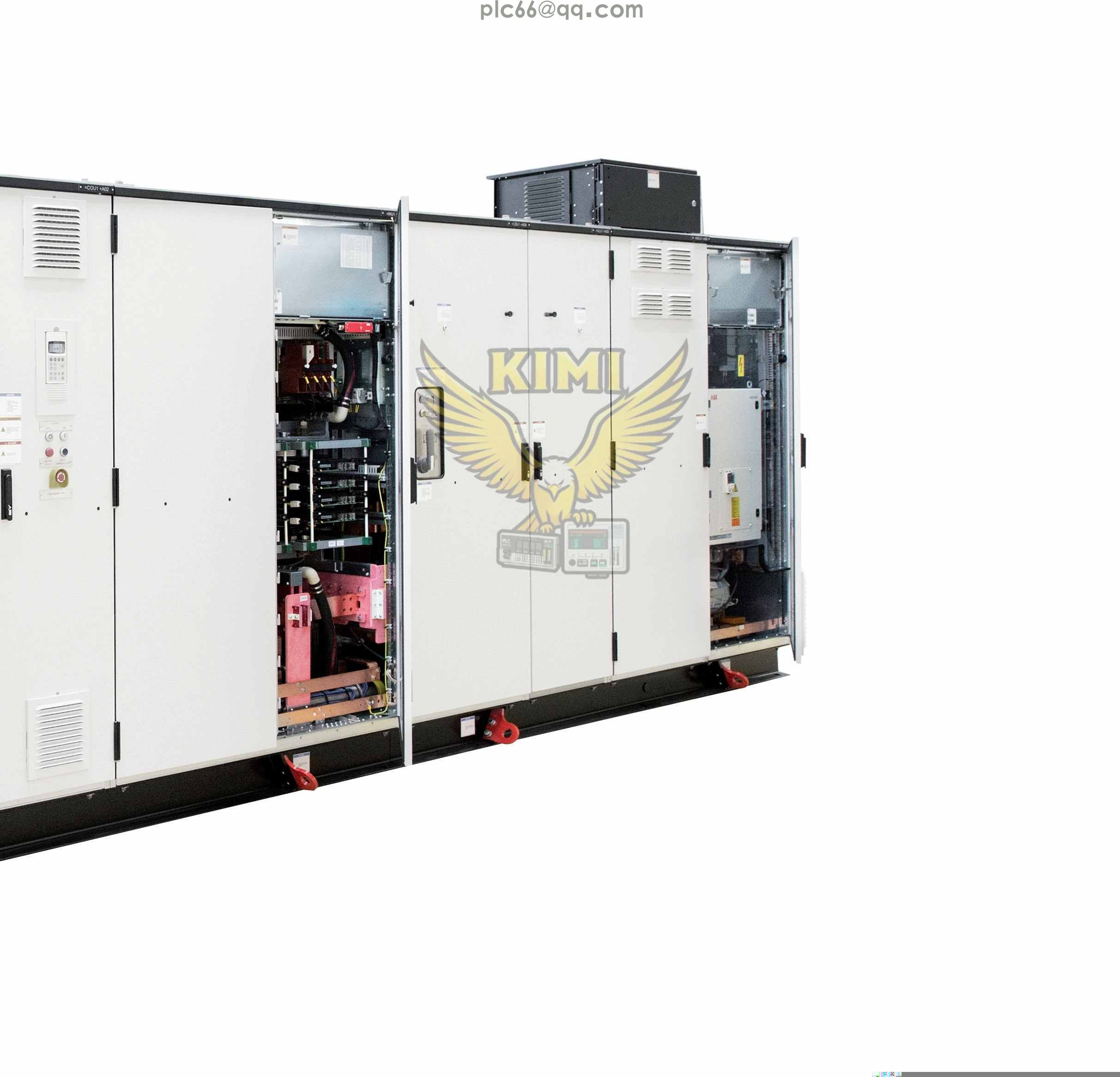

Figure 3–2 ACS6000 drive example

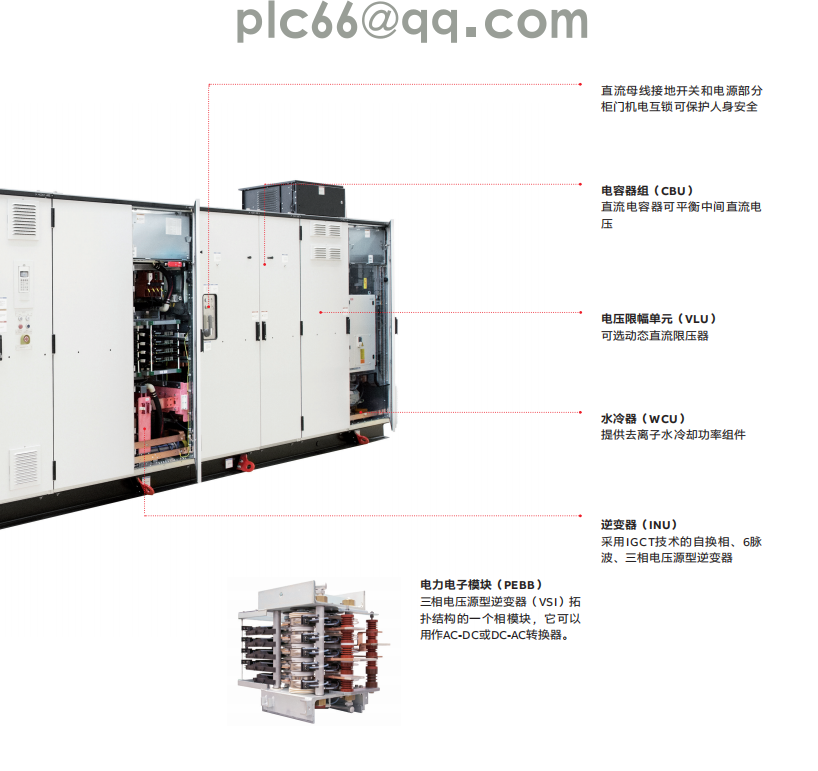

- Active rectifier unit (ARU):
Self-commutated, 6-pulse, 3-level voltage source inverter with IGCT technology - Drive control panel for local operation:
Keypad with multi-language display, main supply on/off push buttons, and emergency-off push button - Inverter unit (INU):
Self-commutated, 6-pulse, 3-level voltage source inverter with IGCT technology - Capacitor bank unit (CBU):
DC capacitors for smoothing the intermediate DC voltage - Water cooling unit (WCU):
Supplies deionized water for cooling the main power components - Terminal unit (TEU) and control unit (COU):
Contains the power terminals and the control swing frame - Braking chopper unit (BCU), resistor braking unit (RBU) or voltage limiter unit (VLU):
Optional cabinet units - Excitation unit (EXU):
Optional cabinet unit that supplies a synchronous motor with excitation
The drive is assembled from standard and optional cabinet units. Each unit is dedicated to a specific function.
ACS6000 Cabinet Units
- Active rectifier unit (ARU)
- Inverter unit (INU)
- Line supply unit (LSU)

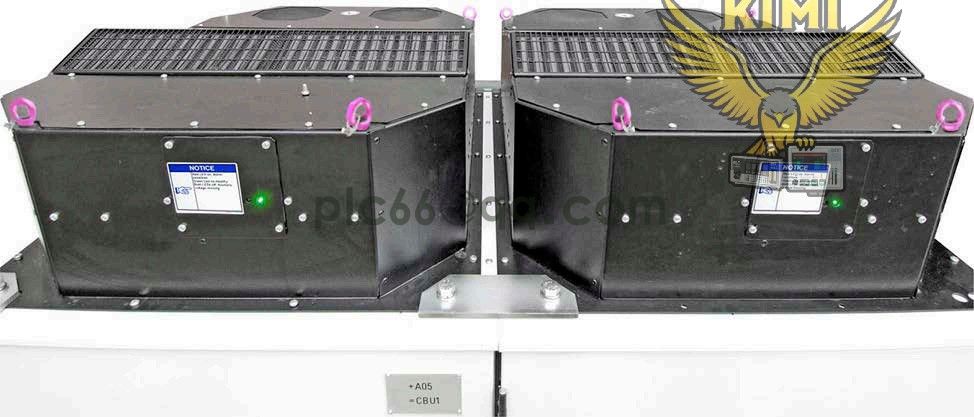

- Capacitor bank unit (CBU)
- Terminal unit (TEU)
- Control unit (COU)
- Water cooling unit (WCU)
- Input reactor unit (IRU)
- Input filter unit (IFU)
- Voltage limiter unit (VLU)
- Braking units:
- Resistor braking unit (RBU)
- Braking chopper unit (BCU)
- Excitation unit (EXU)
Customer interface unit (CIU)

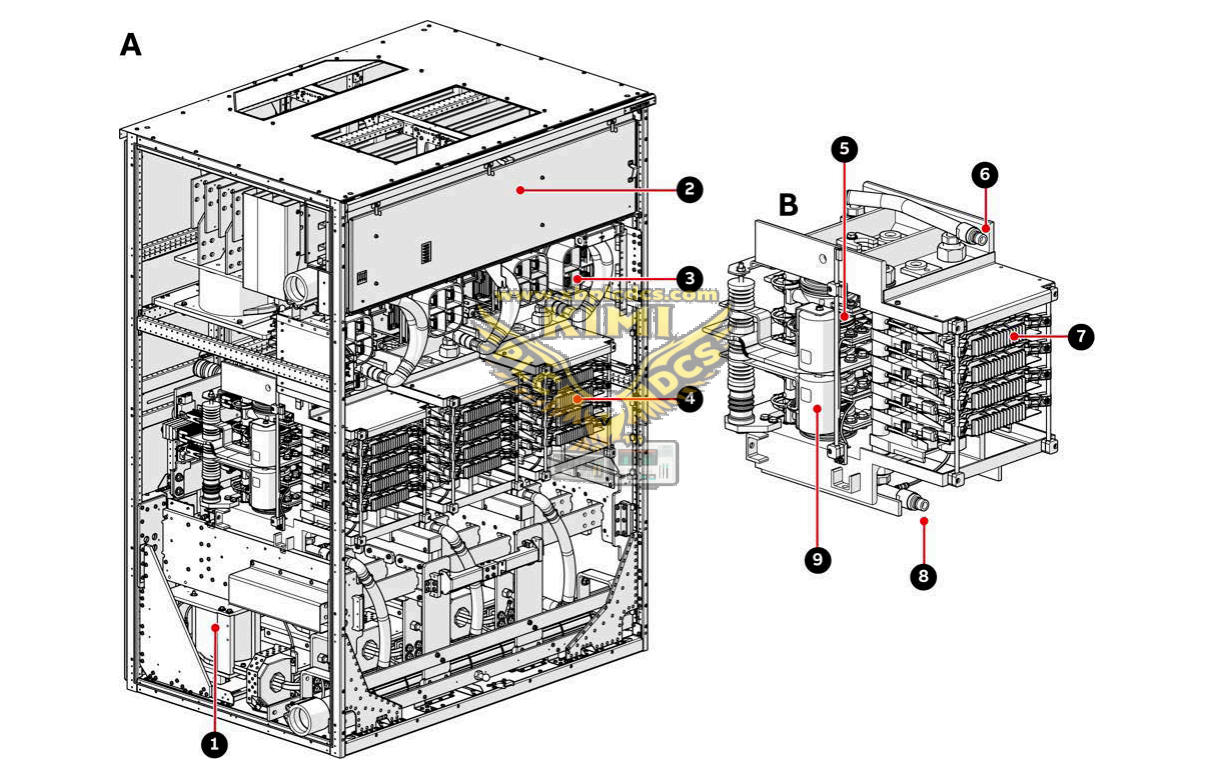

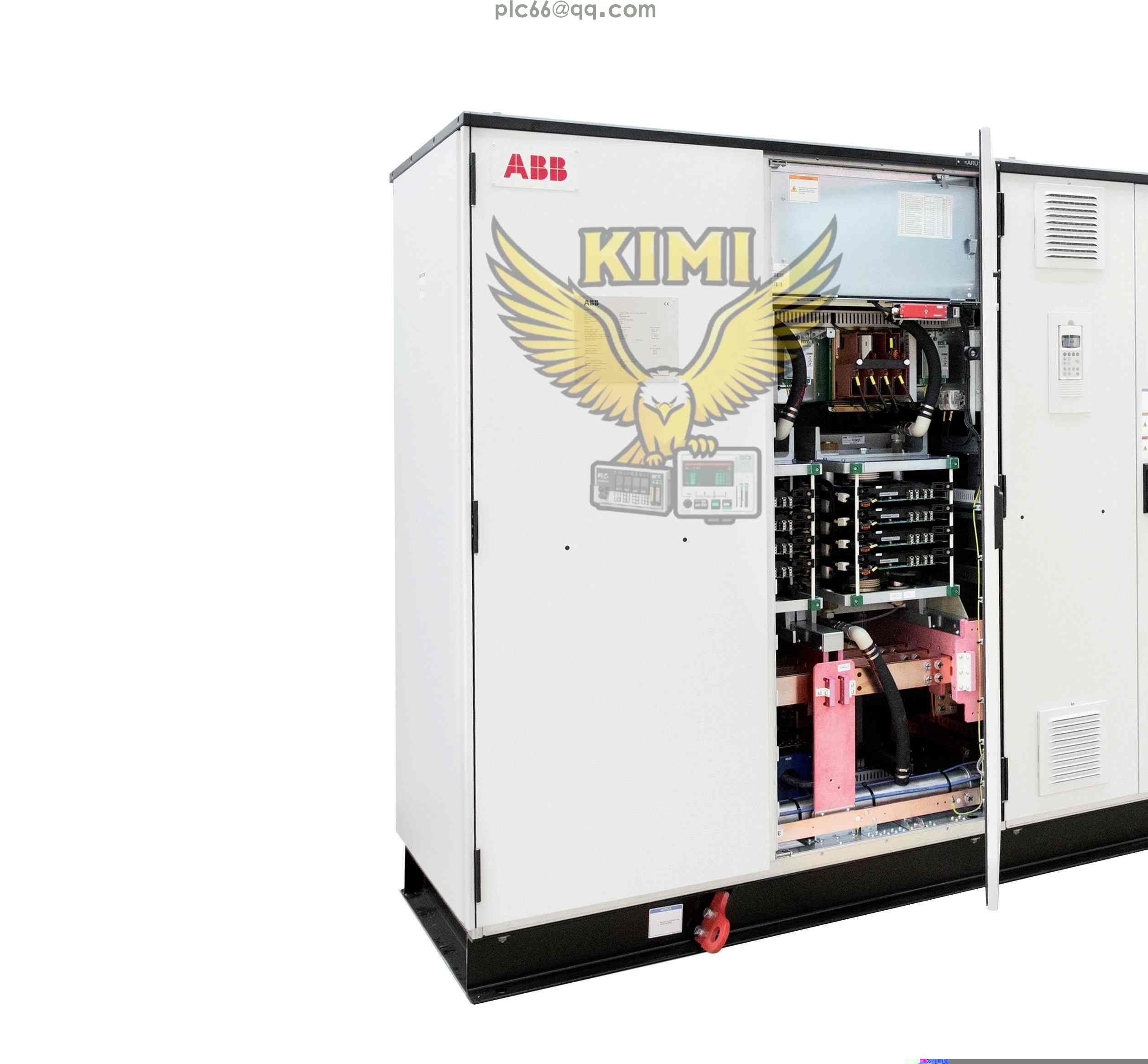

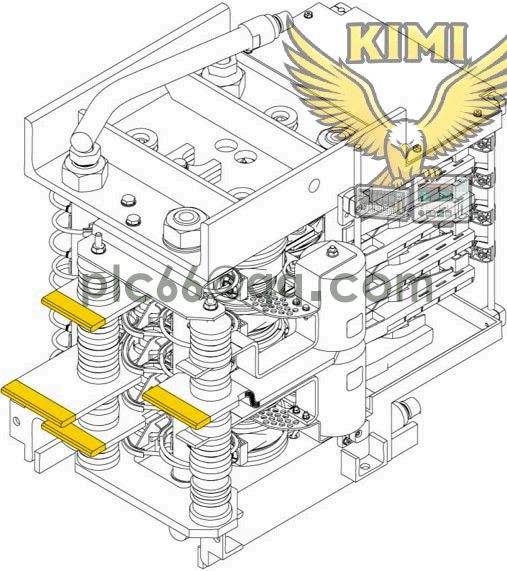

Main Components in an ARU/INU Cabinet

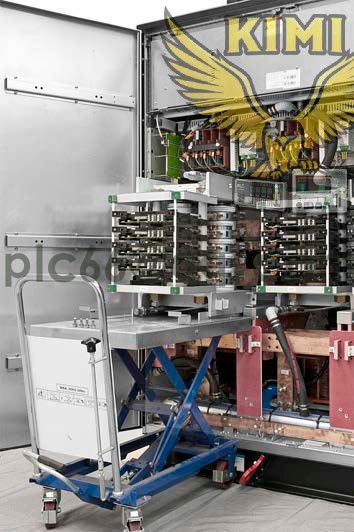

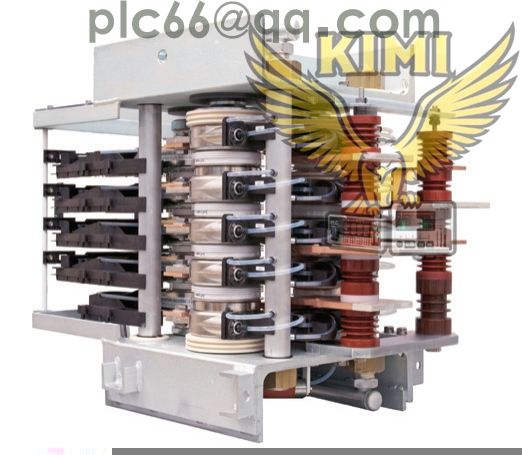

ARU/INU (A) and phase modules with IGCTs
1) EMC filter
6) Coolant outlet
2) Control interface
7) IGCT
3) IPS
8) Coolant inlet
4) Phase module
9) Clamp capacitor
5) Diode

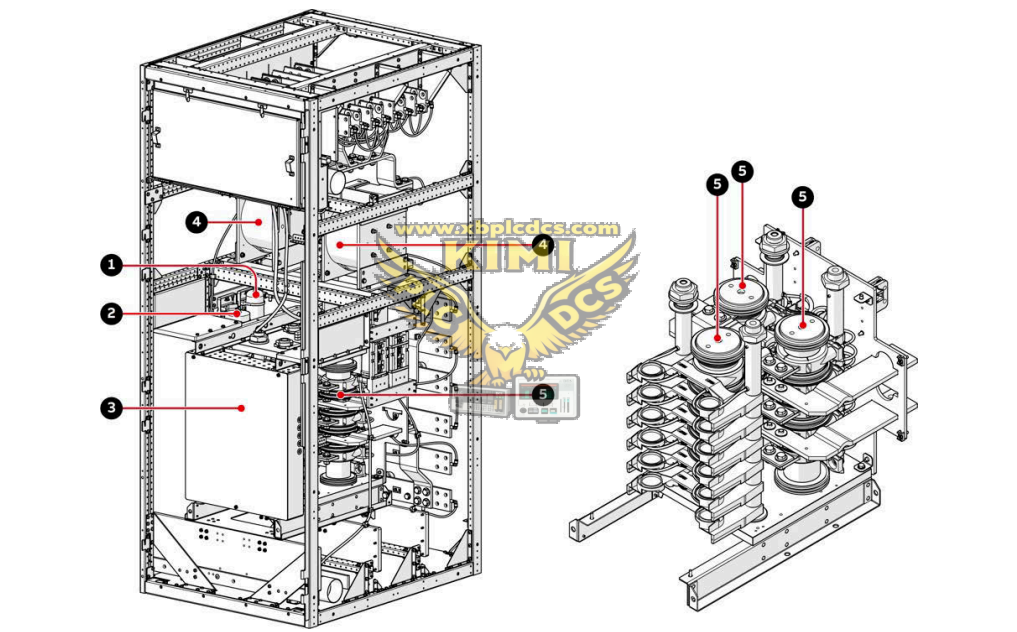

Main Components in a 12-pulse LSU Cabinet
1) Snubber resistor
2) Snubber capacitor
3) Rectifier monitoring unit
4) di/dt limiting reactors
5) Diode stacks
ACS6000 Series - Phase Module Product List
Series
Part Number
Description
ACS6000
3BHL001275R0002
PHASE MODULE
ACS6000
3BHL001275R0001
PHASE MODULE
ACS6000
ACS6000
3BHB030479R0112
PHASE S-123H
ACS6000
3BHB018008R0103
PHASE S-113H (11MVA PEAK) EUPEC
ACS6000
3BHB018008R0005
S-113H PHPT
ACS6000
3BHB018008R0003
PHASE S-113H (11MVA PEAK) EUPEC
ACS6000
3BHB009885R0002
PHASE MODULE (S-093H)
ACS6000
3BHB009885R0031
PHASE S-093S
ACS6000
3BHB009885R0013
PHASE MODULE (S-093M)
ACS6000
3BHB009885R0004
PHASE MODULE (S-093H)
ACS6000
3BHB009885R0014
PHASE MODULE (S-093M)
ACS6000
3BHB030478R0209
PHASE S-093H
ACS6000
3BHB009885R0104
PHASE S-093H
ACS6000
3BHB009885R0021
PHASE S-093N
ACS6000
3BHB009884R0004
(S-073H) FOR 7 MV
ACS6000
ACS6000
3BHB009884R0002
PHASE MODULE (S-073H)
ACS6000
3BHB009884R0013
PHASE MODULE (S-073M)
ACS6000
3BHB009884R0014
(S-073M) FOR 7 MV
ACS6000
ACS6000
3BHB009884R0204
PHASE S-073H
ACS6000
3BHB009884R0
