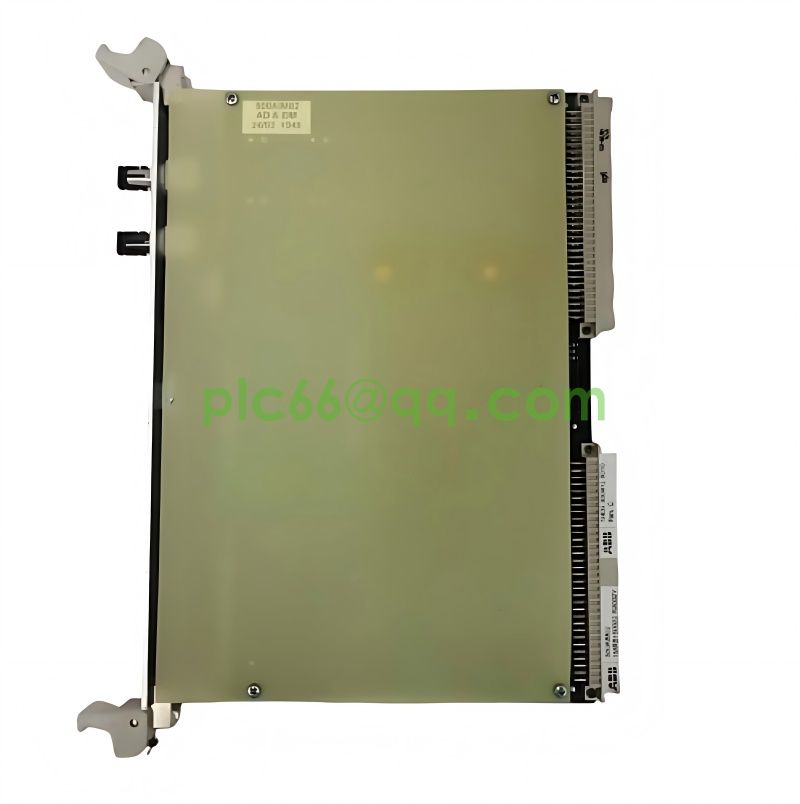

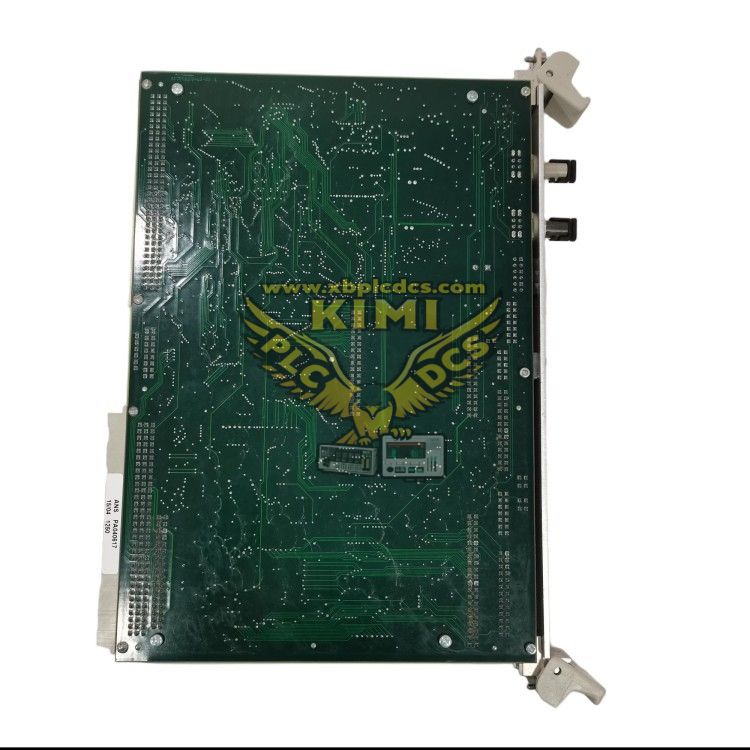

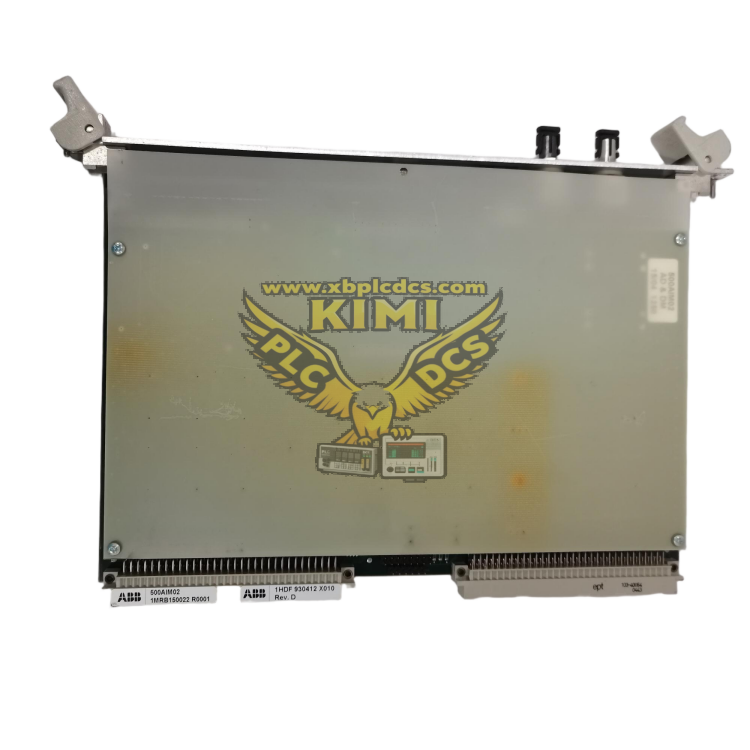

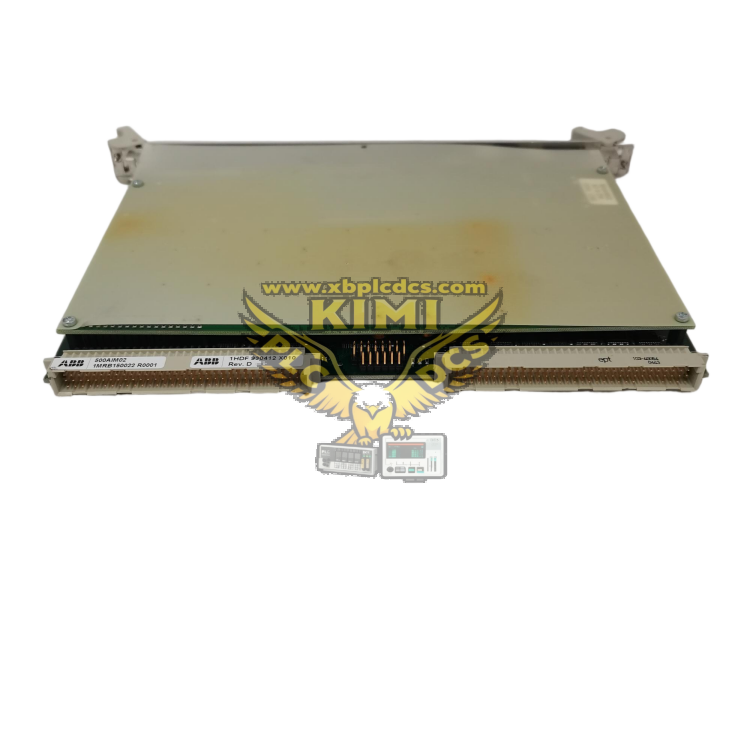

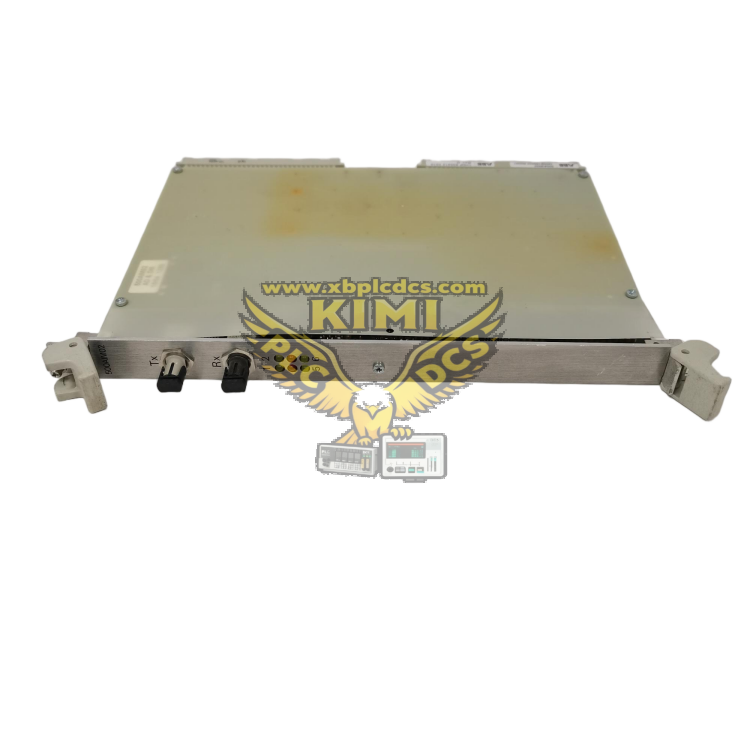

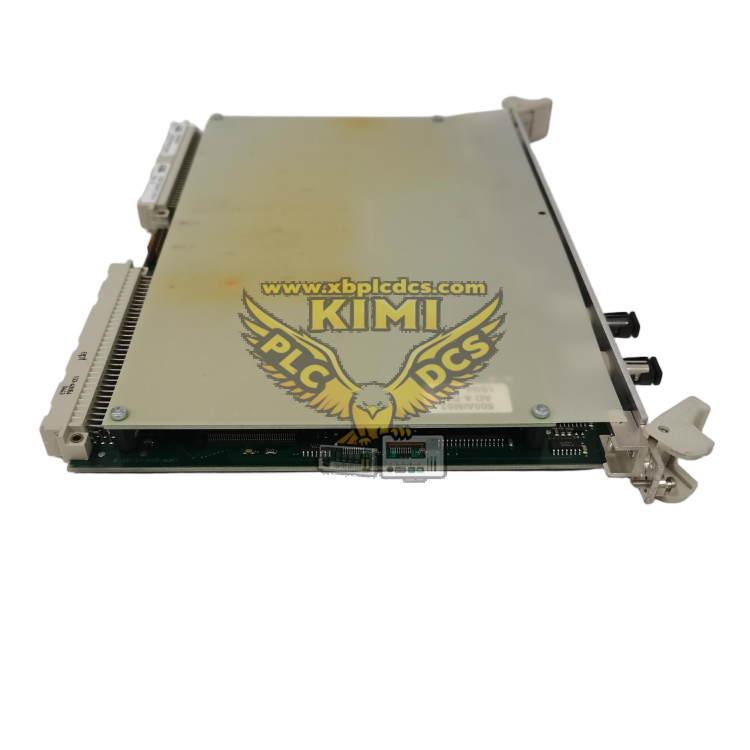

500AIM02 1MRB150022R001 Input Module--KIMI

Part number：500AIM02 1MRB150022R001
Product Origin：Sweden
HS CODE：8443919090
Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

ABB 500AIM02 (1MRB150022R001) 8‑Channel High‑Precision Analog Input Module

Analog Signal Acquisition for ABB AC500 PLC/DCS in Process Control & Industrial Automation

1. Core Product Overview

The ABB 500AIM02 (order code: 1MRB150022R001) is an 8‑channel analog input module designed for ABB AC500 series PLC/DCS, dedicated to high‑precision acquisition of industrial process signals (temperature, pressure, flow, level). As a key component of ABB's 500 series I/O system, it integrates 16‑bit high‑resolution ADC, flexible signal range configuration, and ABB FBP (Flexible Bus Protocol) for seamless connection to AC500 CPUs and expansion modules. With a rugged industrial enclosure (IP20 front protection), it operates stably in -20°C to +70°C harsh environments, and is equipped with surge protection, EMC filtering, and channel‑to‑channel isolation (2.5kV) to ensure accurate signal acquisition in high‑interference industrial sites (e.g., chemical plants, power stations, manufacturing lines).

• Core Role: 8‑channel analog signal acquisition; process parameter monitoring; industrial sensor data collection; AC500 PLC/DCS integration • Model Info: 500AIM02 (main model); 1MRB150022R001 (ABB official order code); 500 series analog input module • Key Specs: 8 differential analog inputs; 16‑bit ADC resolution; 2.5kV channel isolation; -20°C to +70°C operating temp; IP20 protection • Reliability: Surge/EMC protection; channel‑to‑channel isolation; redundant power support; long‑term stability in industrial environments

500AIM02 1MRB150022R001 (5).jpg

2. Signal Acquisition Performance

The 500AIM02 supports 8 differential analog input channels, each configurable for 4‑20mA current, 0‑10V voltage, ±10V voltage, or thermocouple (Type J/K/T/E/R/S/B/N) signals via software, eliminating the need for hardware rewiring. It features 16‑bit ADC resolution (±0.05% accuracy), 10ms max conversion time per channel, and 50Hz/60Hz notch filtering to suppress power line interference. Channel‑to‑channel isolation (2.5kV) and channel‑to‑ground isolation (1kV) prevent cross‑talk and ground loop issues, while overvoltage/overcurrent protection (up to 30V/50mA per channel) safeguards the module and connected sensors.

• Input Channels: 8 differential channels; configurable per channel (no hardware changes) • Signal Types: 4‑20mA; 0‑10V; ±10V; Type J/K/T/E/R/S/B/N thermocouples • Accuracy & Speed: 16‑bit resolution; ±0.05% full‑scale accuracy; 10ms max conversion time • Protection: 2.5kV channel isolation; 1kV channel‑to‑ground isolation; surge/overvoltage/overcurrent protection

500AIM02 1MRB150022R001 (3).jpg

3. AC500 Integration & Installation

The 500AIM02 uses ABB FBP for plug‑and‑play integration with AC500 CPUs (e.g., PM564‑TS, PM583‑ETH) and expansion couplers (500SCM01), supporting distributed I/O topologies (tree/star) for large‑scale automation systems. It adopts DIN rail mounting (standard 35mm) with a compact form factor (120×100×65mm), fitting into standard control cabinets without extra space. The front‑panel LED indicators (power, module status, channel alarms) enable quick diagnostics, and non‑volatile fault logging records up to 100 historical events for troubleshooting. Power supply is 24V DC redundant input (18‑30V range) with reverse polarity protection, and the module provides isolated 5V output for external sensor excitation.

• Integration: ABB FBP protocol; AC500 CPU/coupler compatible; distributed I/O expansion support • Mounting: 35mm DIN rail; 120×100×65mm dimensions; industrial cabinet installation • Power Supply: 24V DC redundant input (18‑30V); reverse polarity protection; isolated 5V sensor excitation • Diagnostics: Front‑panel LED indicators; non‑volatile fault logging; channel‑level alarm reporting

500AIM02 1MRB150022R001 (6).jpg

Typical Applications & Compliance

Key Sectors: Process control (chemical/petrochemical); power generation (thermal/hydropower); manufacturing (automotive/pharmaceutical); water/wastewater treatment; building automation.

Use Cases: Temperature/pressure/flow/level monitoring; industrial sensor data acquisition; AC500‑based DCS process control; high‑precision industrial measurement systems.

Compliance: IEC 61131‑2 (industrial control); IEC 61010‑1 (safety); IEC 61326‑1 (EMC); CE/UL/RoHS; -20°C to +70°C wide temperature operation.

Spare Part Grade: ABB genuine original module; factory‑calibrated for accuracy; 12‑month standard warranty with AC500 system extended service options.

500AIM02 1MRB150022R001 (2).jpg

You can click on (ABB ) to visit the official website for more product information.

If you want to purchase, you can contact YMGK's official customer service

For the relevant manual, please click to download and learn about the specific parameters

500AIM02 1MRB150022R001 Analog input module(图2) 500AIM02 1MRB150022R001.pdf
