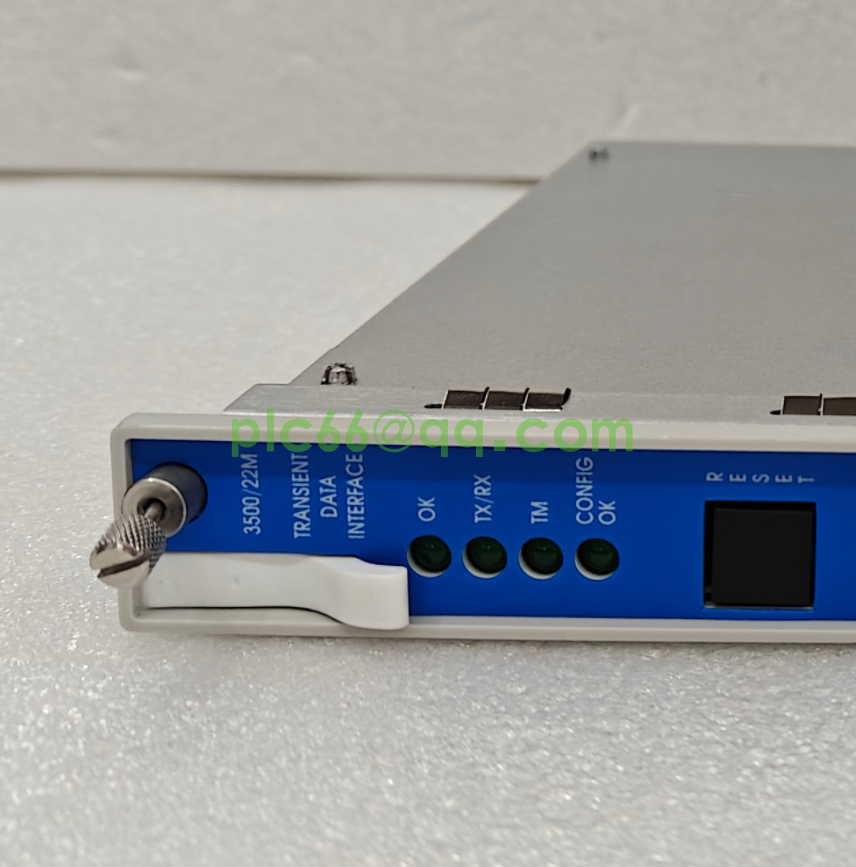

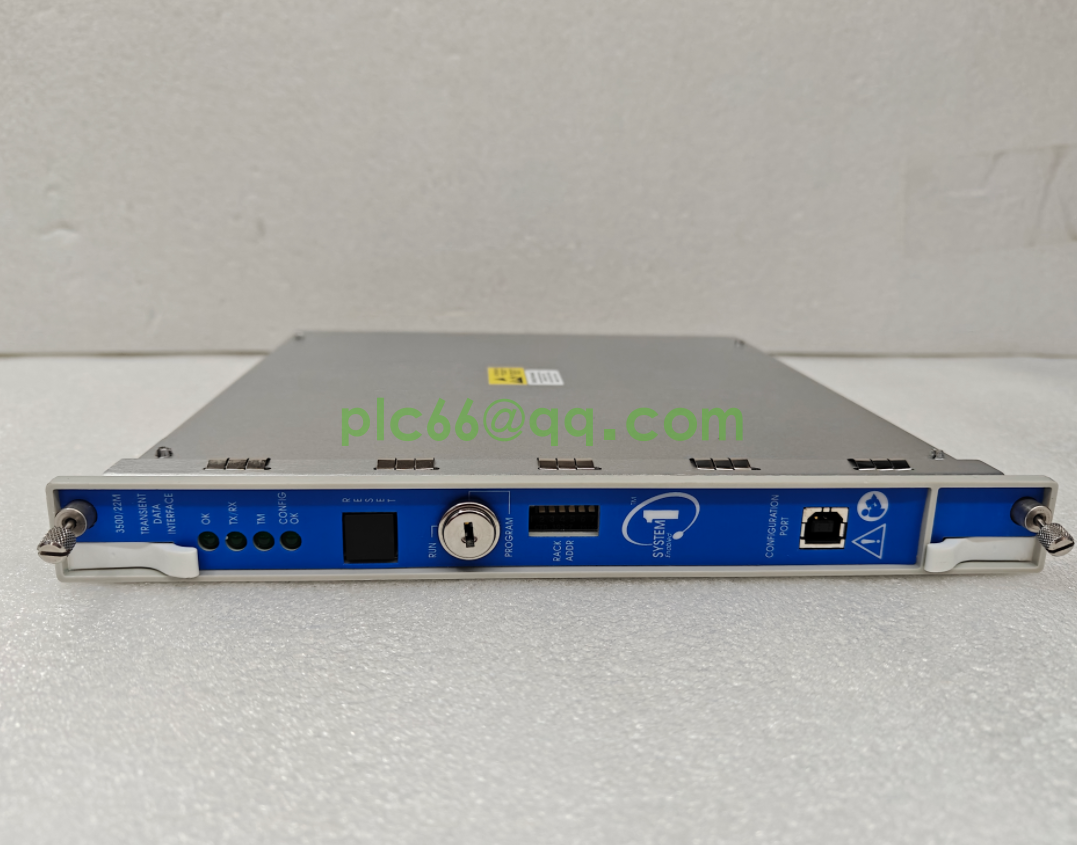

The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostics Software and 3500 System Configuration Software).

The TDI combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data acquisition capabilities of a communications processor (such as TDXnet).

The TDI resides in a slot near the power supply in the 3500 rack.

It connects to M-Series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient dynamic (waveform) data and transmit this data to the host software via an Ethernet link.

The Bently Nevada 3500/22M 288055-01 is a Transient Data Interface (TDI) Module for the Bently Nevada 3500 series machinery monitoring system.

Its primary function is to collect and transfer transient (startup and shutdown) and steady-state vibration data from the 3500 system's various monitoring modules to a plant's control and monitoring networks.

Key Features and Functionality

• Transient Data Collection: The "Transient" in its name refers to its ability to capture high-speed vibration data during dynamic events like machine startups and shutdowns.

• This data is critical for diagnosing machinery problems that may only appear at specific speeds or during transitions.

• System Integration: It acts as the communication gateway between the Bently Nevada 3500 rack and external systems.

• This includes Distributed Control Systems (DCS), Supervisory Control and Data Acquisition (SCADA) systems, and specialized condition monitoring software like GE's System 1.

• Data Transfer: It transfers various types of data, including:

• Vibration Waveforms: High-resolution data showing how vibration changes over time.

• Orbits: Data from proximity probes showing the shaft's movement relative to the bearings.

• Trend Data: Long-term data for analyzing changes in machine health over time.

• Alarm and Event Data: Information about alarms, warnings, and system events.

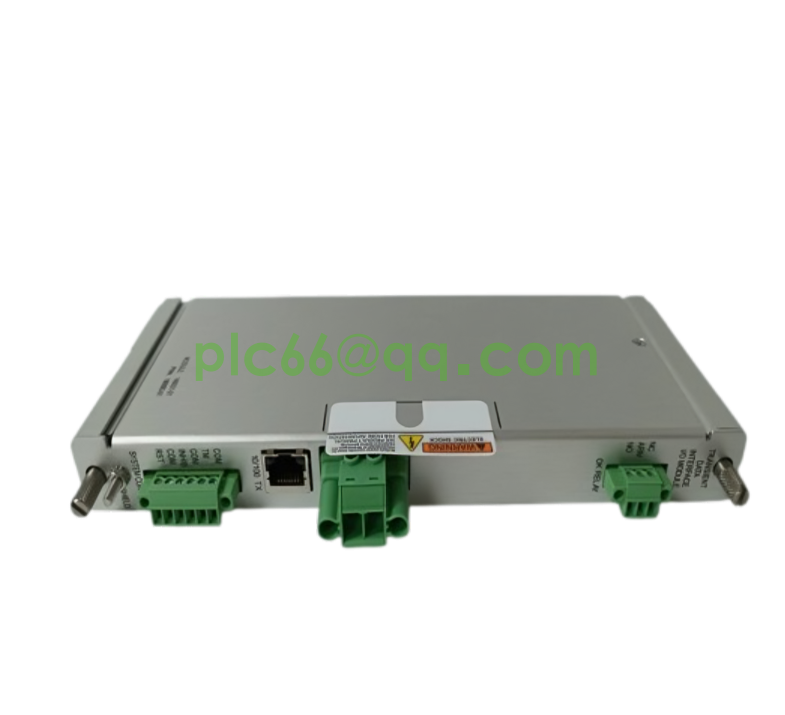

• I/O Module: The 288055-01 part number specifically refers to the I/O module that connects to the 3500/22M TDI module. This I/O module provides the physical connections for the communication cables, allowing the TDI to interface with the network.

• Rack-Based System: The 3500/22M is a module that fits into a standard 3500 rack. The rack is a chassis that houses all the modules required to monitor a machine train (e.g., a turbine and compressor).

The Bently Nevada 3500/22M is essential for plant operators and engineers who need to remotely monitor the health of critical machinery.

By providing detailed transient data, it allows them to perform advanced diagnostics and predictive maintenance, preventing unexpected failures and costly downtime.

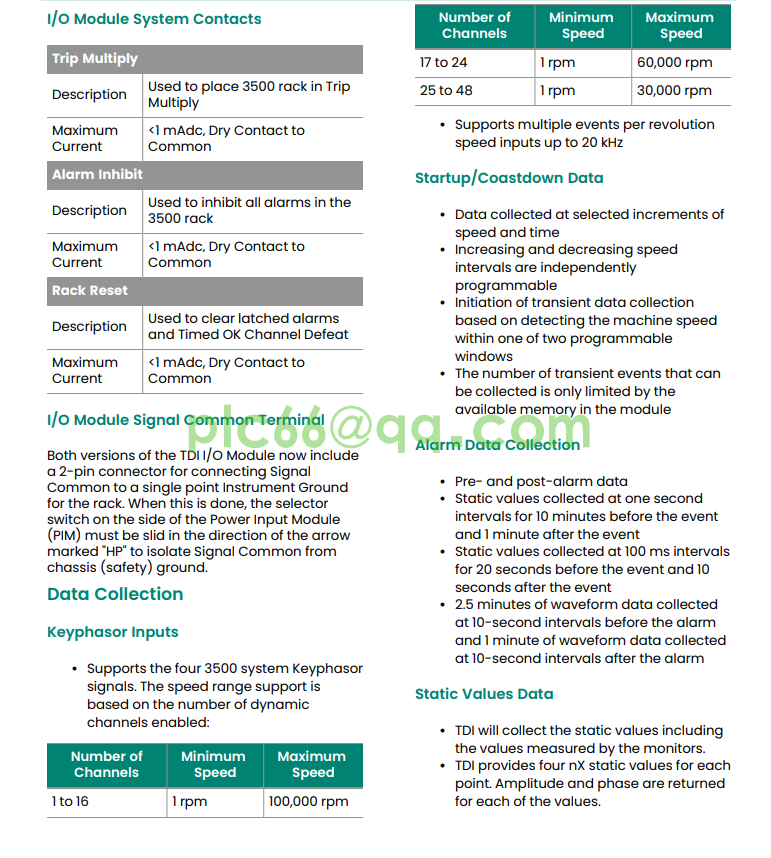

3500/22M Transient Data Interface Module Datasheet

The front card model of the old 3500/22M is 138607-01 and the rear card model is 146031-01

The new 3500/22M front card model is 288055-01 and the rear card model is 146031-01

Matching model: 3500/22-01-01-01. Front card: 138607-01. Back card: 146031-01.

3500/22-01-03-00
