5SHY5055L0002 3BHE019719R0101 GVC736BE101 IGCT Power Module--KIMI
- Part number：5SHY5055L0002 GVC736BE101 3BHE019719R0101
- Product Origin：Sweden
- HS CODE：8537109021
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description

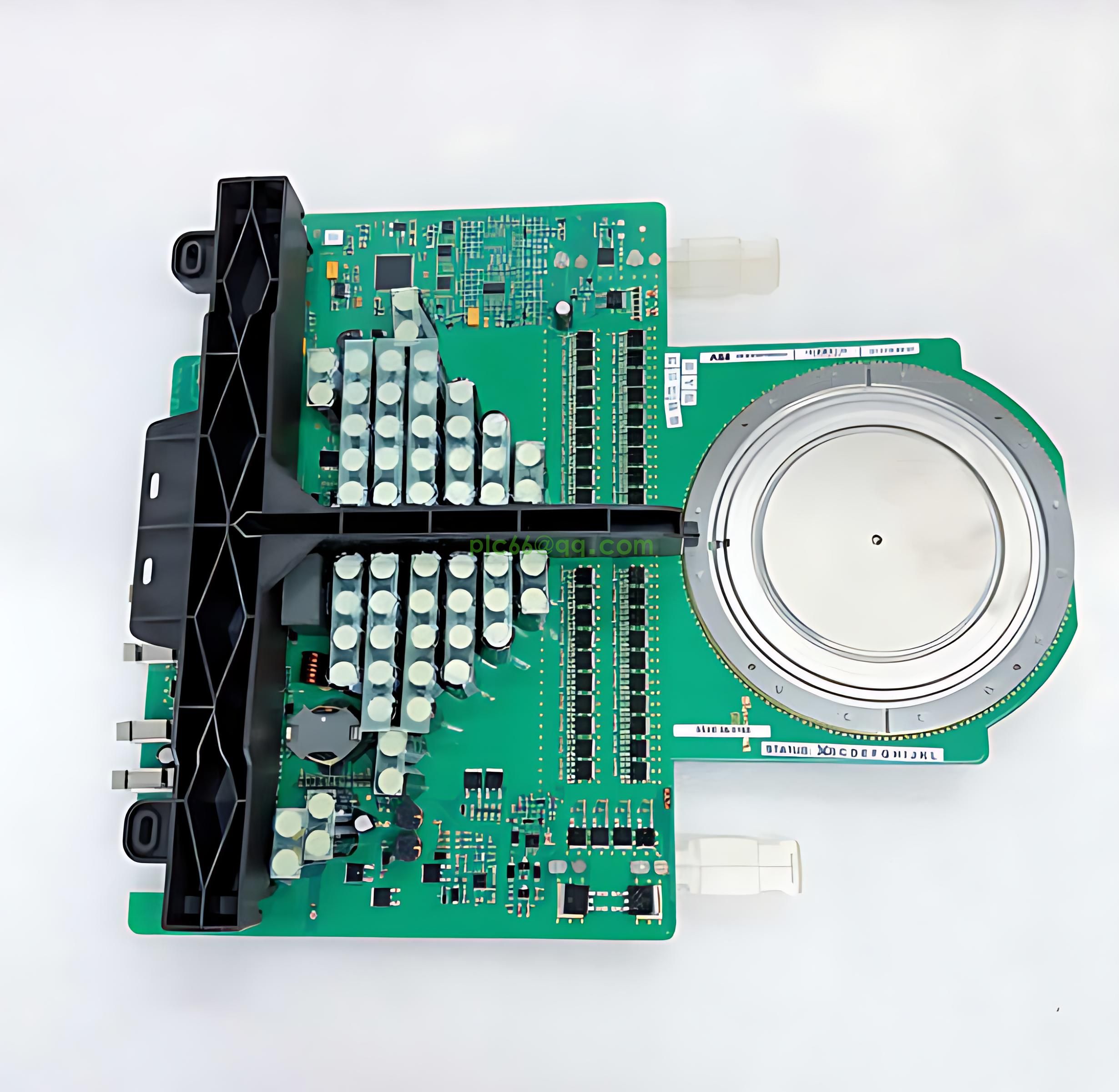

ABB 5SHY5055L0002 3BHE019719R0101 GVC736BE101 IGCT Power Module
GVC700 Series - High-Power Integrated Gate Commutated Thyristor for Industrial Drives & Power Electronics
1. Product Overview
The ABB 5SHY5055L0002 (Ordering Code: 3BHE019719R0101, Gate Unit: GVC736BE101) is a high-power Integrated Gate Commutated Thyristor (IGCT) module belonging to the GVC700 series, seamlessly integrated with ABB industrial drive platforms (ACS800, ACS880) and third-party control systems. As a core component for medium-voltage power conversion, it achieves efficient control of high voltage and large current with sub-microsecond switching speed, low on-state voltage drop (reduced by ~30% compared to traditional GTO), and low switching loss (reduced by ~40% compared to traditional GTO), significantly improving system energy efficiency. Equipped with integrated gate drive circuit, 2500V AC isolation, and comprehensive protection functions (overcurrent, overvoltage, overtemperature, gate short circuit), it is an ideal choice for critical applications in power generation, oil & gas, metallurgy, and rail transit that require high power density, fast dynamic response, and reliable operation.
Key Specifications
• Model: 5SHY5055L0002 | Ordering Code: 3BHE019719R0101 | Gate Unit: GVC736BE101 | Brand: ABB | Series: GVC700
• Compatibility: ABB ACS800/ACS880 Drives, Medium-Voltage Converters, Power Electronic Systems
• Type: High-Power Integrated Gate Commutated Thyristor (IGCT) Power Module
• Voltage Rating: 4.5kV | Current Rating: 2.5kA (Continuous), 25kA (Peak)
• Switching Speed: Sub-Microsecond | On-State Voltage Drop: 2.2V (Typical)
• Gate Drive Circuit: Integrated GVC736BE101 Gate Unit | Isolation: 2500V AC (1min, Power-Control Side)
• Protection Functions: Overcurrent, Overvoltage, Overtemperature, Gate Short-Circuit Protection
• Power Supply: 24V DC (18-32V DC) | Power Consumption: 15W (Typical)
• Operating Temperature: -20°C to +60°C | Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% (Non-Condensing) | Protection Class: IP20 (Front Panel)
• MTBF: >100,000 Hours | Dimensions: 220mm(W) × 180mm(D) × 80mm(H)
• Mounting: Panel-Mount (Flange) | Net Weight: 5.2 kg | Gross Weight: 6.8 kg
• Cooling Method: Forced Air/Water Cooling (Customizable)
2. Core Features
• Sub-Microsecond Switching: Optimized gate drive circuit enables ultra-fast switching for high dynamic response
• Low Power Loss: ~30% lower on-state voltage drop and ~40% lower switching loss than traditional GTO, improving energy efficiency
• Integrated Gate Unit: GVC736BE101 provides precise gate voltage/current control and real-time status monitoring
• 2500V AC Isolation: Eliminates ground loop interference and ensures safe operation in high-voltage environments
• Comprehensive Protection: Overcurrent, overvoltage, overtemperature, and gate short-circuit protection for system safety
• High Power Density: Compact design with forced air/water cooling for high-power applications in limited space
• High Reliability: High-temperature ceramic package and reinforced heat dissipation structure for long mechanical life
• Easy Integration: Standardized terminal layout and flange mounting compatible with ABB and third-party control platforms
YMGK Purchase Information
This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.
One-Stop Global Industrial Product Procurement
- Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
- Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
- Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
- Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
- Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.
For additional inquiries, reach out to us at any time.
All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders
3. Typical Applications
• Power Generation: Medium-voltage variable frequency drives for pumps/fans, turbine excitation systems, static var compensators (SVC)
• Oil & Gas: Offshore platform medium-voltage drives, pipeline compressor control systems, subsea power distribution
• Metallurgy: Rolling mill main drive converters, electric arc furnace power supply, induction heating systems
• Rail Transit: Traction converters for high-speed trains, subway auxiliary power supplies, light rail traction systems
• Renewable Energy: Wind turbine medium-voltage converters, solar power inverter grid connection systems
• Industrial Drives: Medium-voltage AC drives for cement mill, paper machine, and mining equipment main drives
4. Installation & Maintenance
Installation: Mount on cooling flange (ensure flatness and torque); Connect gate unit (GVC736BE101) to control system; Wire power terminals (follow IEC 60204-1 high-voltage wiring standards); Install cooling system (forced air/water); Test insulation and switching performance; Power on and verify operation.
Maintenance: Daily - Check temperature and voltage/current monitoring data; Weekly - Inspect cooling system and terminal tightness; Monthly - Verify gate drive signal integrity and protection function triggering; Annual - Calibrate current/voltage sensors, check insulation resistance, replace aging components.
Safety Notes: De-energize and discharge before maintenance; Use ESD protection during handling; Follow ABB grounding specifications (single-point grounding recommended); Wear personal protective equipment (PPE) for high-voltage operation.
Technical Document | 5SHY5055L0002 3BHE019719R0101 GVC736BE101 | ABB IGCT Power Module
