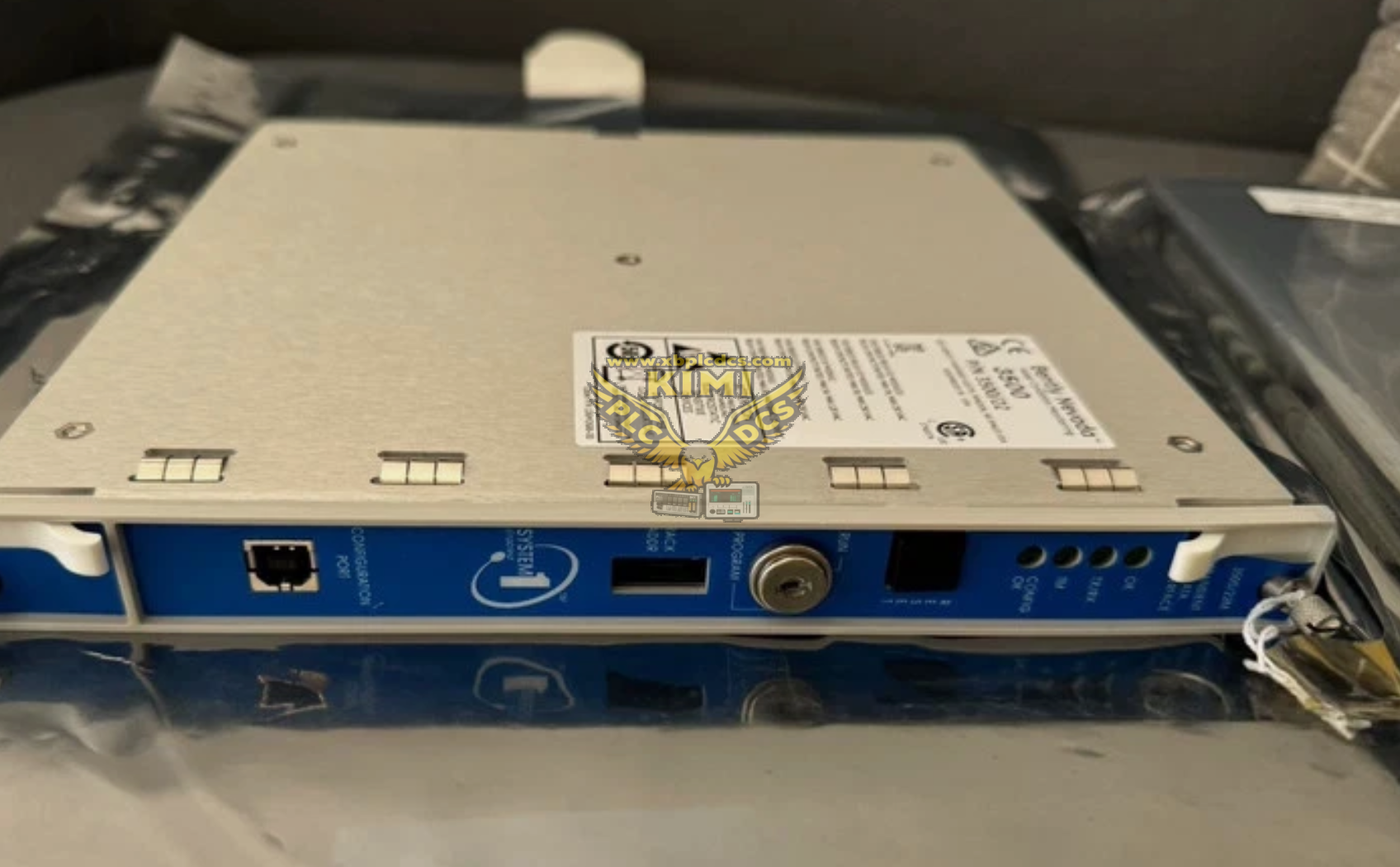

Bently Nevada 3500/42M-01-00 Proximitor/Seismic Monitor Module

Product Description

The Bently Nevada 3500/42M-01-00 is a 4-channel programmable proximitor and seismic monitor module for the 3500 machinery protection system. It accepts signals from proximity probes, velocity transducers and accelerometers, performs signal conditioning and real-time measurement. It supports flexible channel configuration for rotating machinery protection, compares measured values with user-defined alert and danger setpoints to trigger alarms and trip interlocks, and transmits machine data to the rack and System 1 condition monitoring platform.

Features

• 4 independent measurement channels, configured in channel pairs, supports two different measurement functions at the same time
• Monitor parameters: radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute and REBAM
• Compatible with proximity probes, velomitor and accelerometer seismic sensors
• Supports alert setpoints for all static values and danger setpoints for up to two static values per channel
• Hot-swappable inside the 3500 rack, communicates with rack manager via backplane bus
• Built-in continuous sensor and cable diagnostics, wire break and short circuit detection
• Status LED indicators for module health, run status and channel fault alarms
• SIL2 capable, meets API 670 machinery protection requirements, typical power consumption 7.7W

Application Scenarios

• Steam turbine, gas turbine, generator, centrifugal compressor and large pump TSI supervision
• Power plant, refinery, chemical plant and offshore platform rotating machinery protection
• Vibration, axial displacement, differential expansion and eccentricity online monitoring
• 3500 rack expansion, spare parts replacement and machinery protection system retrofit
• Data supply for predictive maintenance and trip root cause analysis via System 1 software

FAQ

Q: What is the difference between 3500/42M and old 3500/42?
A: 3500/42M is the upgraded version with richer seismic signal processing and better diagnostic performance.

Q: What does suffix -01-00 stand for?
A: It defines the I/O type, certification and hardware option set of this monitor module.

Q: What software is used for configuration?
A: 3500 Rack Configuration Software is used for channel function, alarm threshold and parameter setup.

Q: Is this module still in production?
A: 3500 series is legacy TSI system; supply mainly includes original surplus and fully tested refurbished spare parts.
