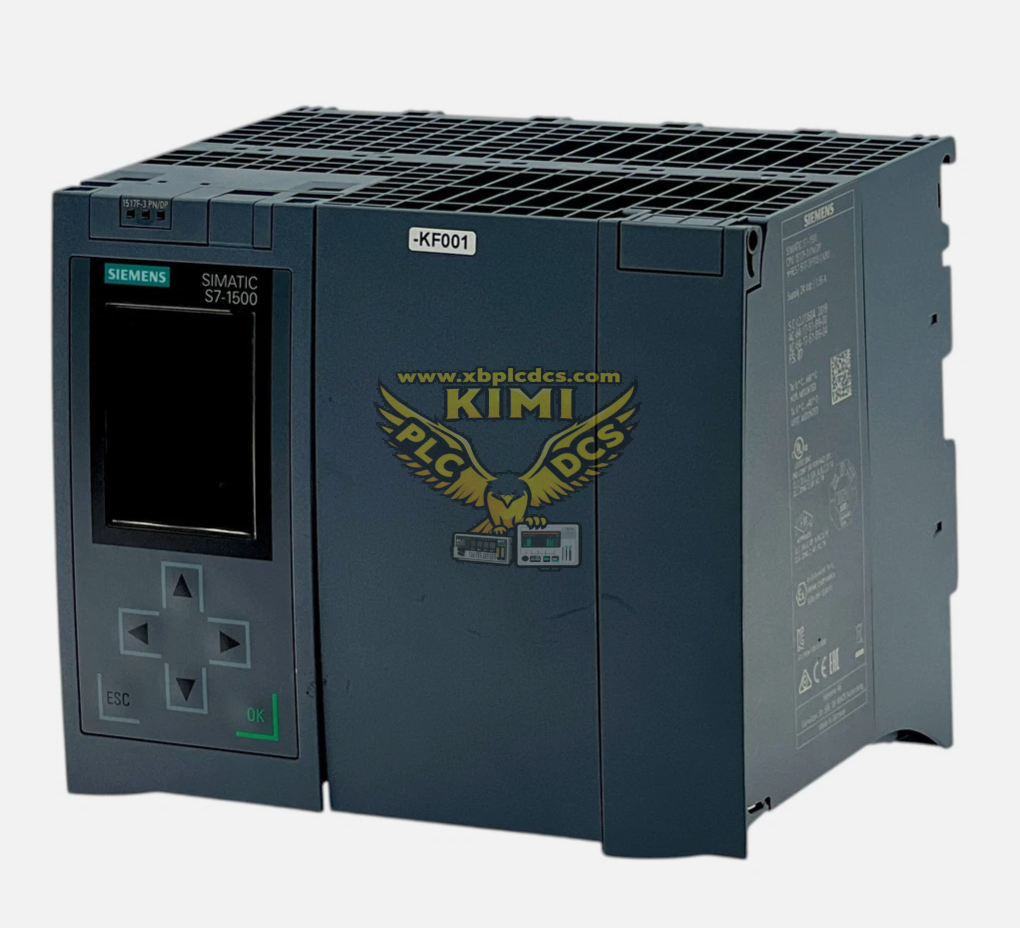

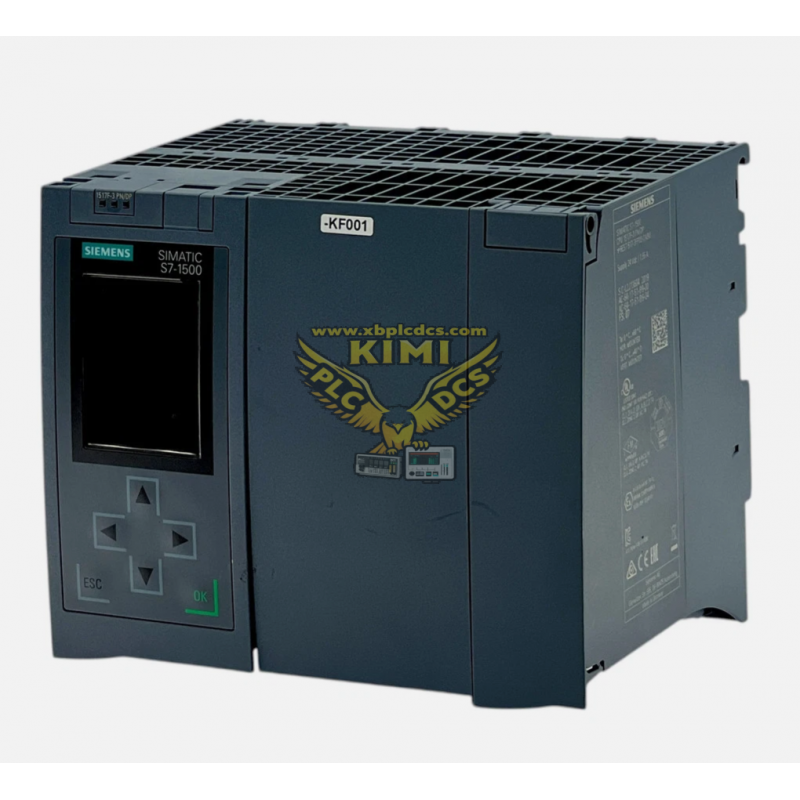

Siemens 6ES7517-3FP00-0AB0 SIMATIC S7-1500F CPU 1517F-3 PN/DP

Product Description

The 6ES7517-3FP00-0AB0 is a fail-safe central processing unit of Siemens SIMATIC S7-1500F series, model CPU 1517F-3 PN/DP. It has 3 MB work memory for program and 8 MB work memory for data. It comes with three communication interfaces: PROFINET IRT with 2-port switch, PROFINET RT and PROFIBUS. The typical bit operation processing time is 2 ns. It requires a SIMATIC memory card for load memory and supports safety-related F-programming for high-reliability automation systems.

Features

• Fail-safe CPU for safety integrated automation (SIL 2 / PL d applicable)
• High-speed processing: 2 ns typical bit operation speed
• Three independent communication interfaces: PROFINET IRT, PROFINET RT, PROFIBUS
• Supports isochronous real-time mode for high-precision motion control
• Integrated display screen and operation keys for local diagnostics and status checking
• 24V DC power supply with reverse polarity protection
• Programming via TIA Portal STEP7, supports firmware upgrade

Application Scenarios

• Factory automation with safety requirements, such as packaging, metallurgy and machinery
• Process control in chemical, oil & gas and power industries
• High-performance motion control and synchronous production lines
• Distributed I/O systems with PROFINET and PROFIBUS mixed network
• Automated safety instrumented systems

FAQ

Q: Does this CPU need a memory card?
A: Yes, SIMATIC memory card is mandatory for program load memory.

Q: What is the difference between standard CPU and F CPU?
A: F model supports safety-related F-program for safety function, suitable for safety control circuits.

Q: Which software is used for programming?
A: TIA Portal STEP7, TIA version needs to match the CPU firmware version.

Q: What is the power supply range?
A: Rated 24V DC, allowable range 19.2V ~ 28.8V DC.
