Brief Product Description

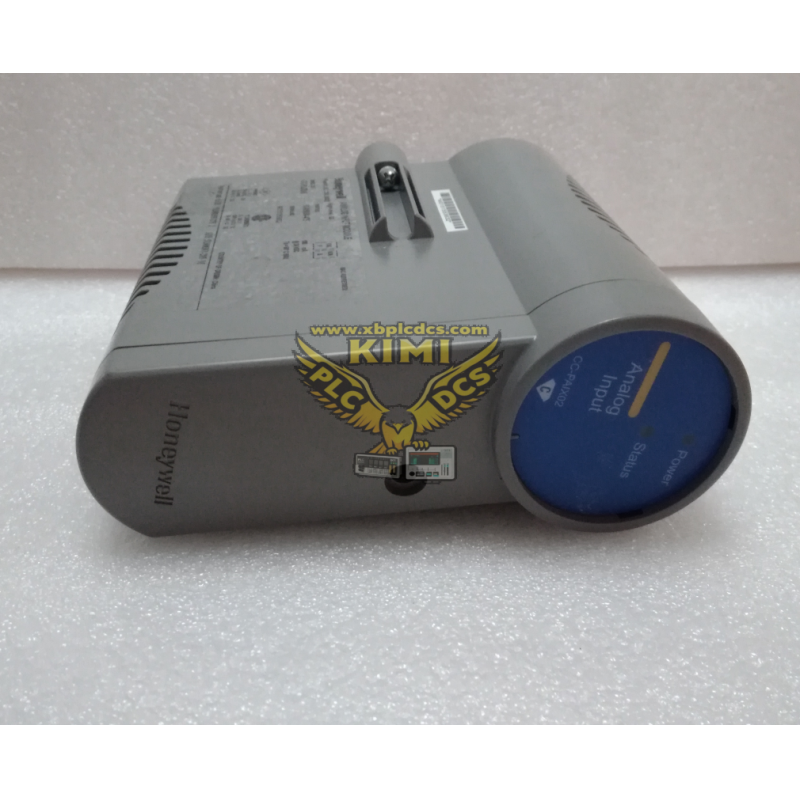

Honeywell CC-PAIX02, part number 51405038-475, is a Series C high-level analog input IOM module for Honeywell Experion PKS C300 controller. It provides 16 analog input channels supporting 4-20mA current and voltage signals without HART protocol capability. All 16 channels can be freely configured as single-ended or differential input mode, which offers greater wiring flexibility compared with CC-PAIX01. It must be paired with matching IOTA terminal assemblies to supply limited field power to 2-wire transmitters, converting analog process signals into digital data and transmitting values to the C300 controller. It adopts 16-bit high-precision A/D conversion, channel isolation and built-in filtering to suppress electromagnetic noise. Comprehensive per-channel self-diagnostics detect open circuit, short circuit, loop failure and module hardware faults. Fully tested surplus and refurbished Honeywell CC-PAIX02 (51405038-475) modules are available for legacy Experion PKS system maintenance, spare replacement and plant retrofit projects.

Core Product Functions

• 16-channel high-level non-HART analog input module for Honeywell Experion PKS C300 Series C I/O system
• Supports 4-20mA current and voltage input, no HART communication function for smart transmitters
• All 16 channels support flexible configuration for single-ended or differential measurement modes
• Works with corresponding IOTA terminal assemblies for field wiring and transmitter power supply
• 16-bit high accuracy A/D sampling, built-in filter to reduce field electromagnetic interference
• Per-channel self-diagnosis for wire break, short circuit, loop abnormality and module hardware faults
• Collect pressure, temperature, flow and level PV signals and send to C300 for control and trending
• Supports redundant IOTA configuration to improve reliability of critical measuring loops
• Supports hot-swap operation for online rack maintenance without system shutdown

Application Scenarios

• Legacy Honeywell Experion PKS C300 DCS Series C I/O measurement system
• Thermal power plant boiler and turbine pressure, temperature, flow and level signal acquisition
• Petrochemical, refinery continuous process parameter monitoring and closed-loop regulation
• Oil & gas, pulp & paper plant conventional analog transmitter signal collection
• Metallurgy, water treatment industrial process variable monitoring system
• Legacy Experion PKS AI module replacement, maintenance and plant retrofits

FAQ (Frequently Asked Questions)

• Q: Measurement value drift or no reading after installing CC-PAIX02?
  A: Verify IOTA model matches CC-PAIX02, check field transmitter wiring and 24V loop power supply, inspect single-ended/differential channel configuration, backplane contact and shielding grounding.
• Q: Does Honeywell CC-PAIX02 support hot-swap replacement?
  A: Yes, hot swap is supported. Risk assessment and LOTO lockout-tagout must be performed before replacement to avoid abnormal process alarms.
• Q: What is the difference between CC-PAIX02 and CC-PAIX01?
  A: CC-PAIX02 supports differential input on all 16 channels; CC-PAIX01 only supports differential mode on channels 13–16. Both are non-HART high-level AI modules for Experion C300.
• Q: What is the difference between CC-PAIX02 and CC-PAIH02?
  A: CC-PAIX02 is non-HART analog input module; CC-PAIH02 supports HART protocol for intelligent transmitters. Both support differential input for all 16 channels.
• Q: What accessories does it need?
  A: It must work with matching IOTA terminal block assemblies for field wiring and transmitter power distribution.
• Q: Is Honeywell CC-PAIX02 (51405038-475) available for new DCS projects?
  A: This legacy Experion Series C I/O module is end-of-life for new installations. Only fully tested surplus and refurbished units are supplied for existing DCS system maintenance and retrofits.
