Product Description

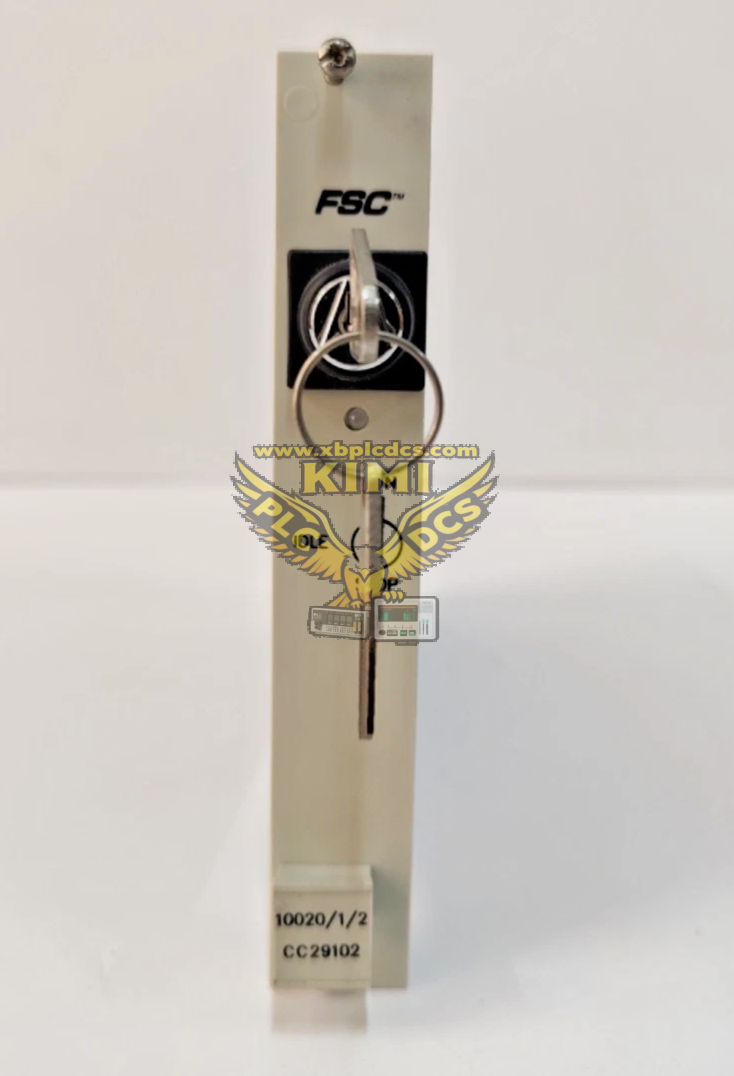

The 10020/1/2 is the core CPU controller module for Honeywell FSC safety system. It adopts quad-processor fault-tolerant architecture, designed for safety instrumented system (SIS). This legacy rack-based module executes safety logic programs, coordinates all I/O cards, and performs system-level fault voting. It is widely used in ESD emergency shutdown systems for critical process industries.

Key Functions

• Execute safety control logic and process safety interlock algorithms
• Manage backplane communication with all FSC I/O modules
• Hardware voting and fault diagnosis for quad redundant processors
• System status monitoring, fault logging and alarm reporting
• Fail-safe response, forcing outputs into safe state once critical fault detected
• Supports redundant CPU hot standby configuration

Application Scenarios

Applied in petrochemical, oil & gas refinery, power plant, chemical processing industries. Mainly for Emergency Shutdown (ESD), burner management and high-risk process safety protection systems.

Common Issues & Troubleshooting

• RUN LED off: Check rack power supply, module key switch position and firmware status
• Fault alarm / Mismatch error: Dirty edge connector, backplane failure or processor mismatch
• Redundancy synchronization failure: Verify dual CPU firmware version consistency
• Cannot download program: Check communication cable and programming interface
• Intermittent crash: PCB aging, dust buildup or over-temperature inside cabinet
