Honeywell 51304335‑175 (MC‑TAOX12) Analog Output Module

Product Description

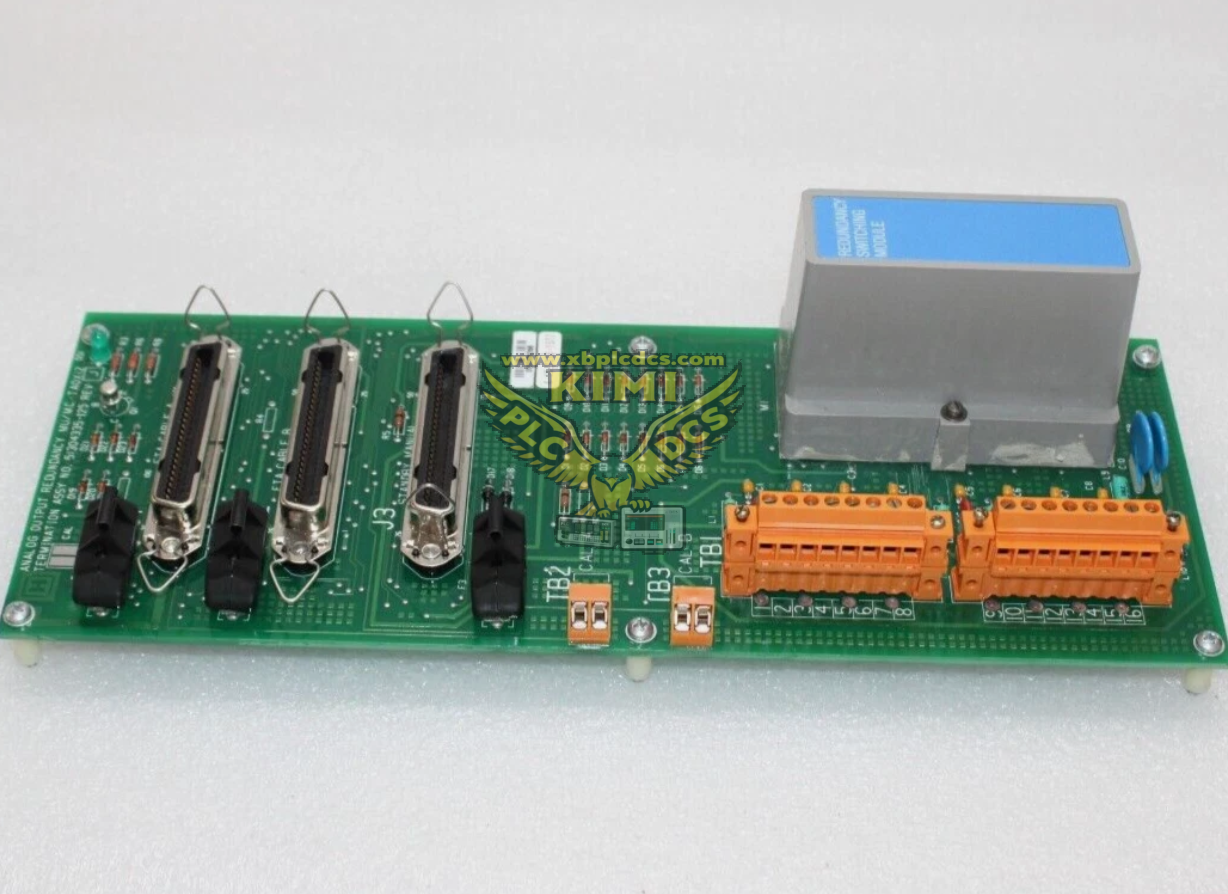

51304335‑175, part number MC‑TAOX12, is a rack‑mounted 16‑channel analog output card for Honeywell Experion PKS / TDC3000 DCS control systems. It receives digital control commands from the HPM controller and converts them into 4‑20mA analog current signals. The board uses conformal coating for moisture and chemical vapor resistance, adopts a backplane bus interface, and works together with matched FTA terminal boards for field wiring. Designed for continuous 24‑hour operation in process control cabinets, it provides high‑precision analog control output for industrial regulating loops.

Product Functions

• Convert digital control data from the HPM controller into 16‑channel 4‑20mA analog output signals
• Transmit accurate setpoint signals to field control valves, actuators and positioners
• Built‑in channel diagnostic function to detect open‑loop, short‑circuit and current anomaly faults
• Communicate with the DCS controller via the UCN backplane bus and feed back channel status information
• Support hot‑swap replacement without shutting down the entire control rack
• Realize closed‑loop regulation of temperature, pressure, flow and liquid level in continuous production processes

Application Scenarios

• Petroleum refinery and chemical plant Experion PKS distributed control cabinets
• Thermal power station boiler and turbine process regulating control systems
• Offshore platforms, LNG and natural gas processing factory automation control rooms
• Pulp, paper and pharmaceutical continuous production process control loops
• Spare parts replacement and technical renovation of legacy Honeywell TDC3000 DCS systems

Common Problems

• Individual channel no 4‑20mA output: Field short‑circuit burns channel circuit, poor connection with FTA board or internal DA converter failure.
• Output current drifts and fluctuates: Aging output circuit components, electromagnetic interference or unstable backplane power supply.
• DCS reports module fault alarm: Backplane connector oxidation, incompatible firmware version or overheating caused by dust accumulation.
• All channels lose output at the same time: Module power circuit damage, backplane bus communication interruption or controller card configuration error.
• Intermittent signal dropout: Cabinet high humidity causes circuit board corrosion, loose card insertion or vibration‑induced poor contact.
