Product Description

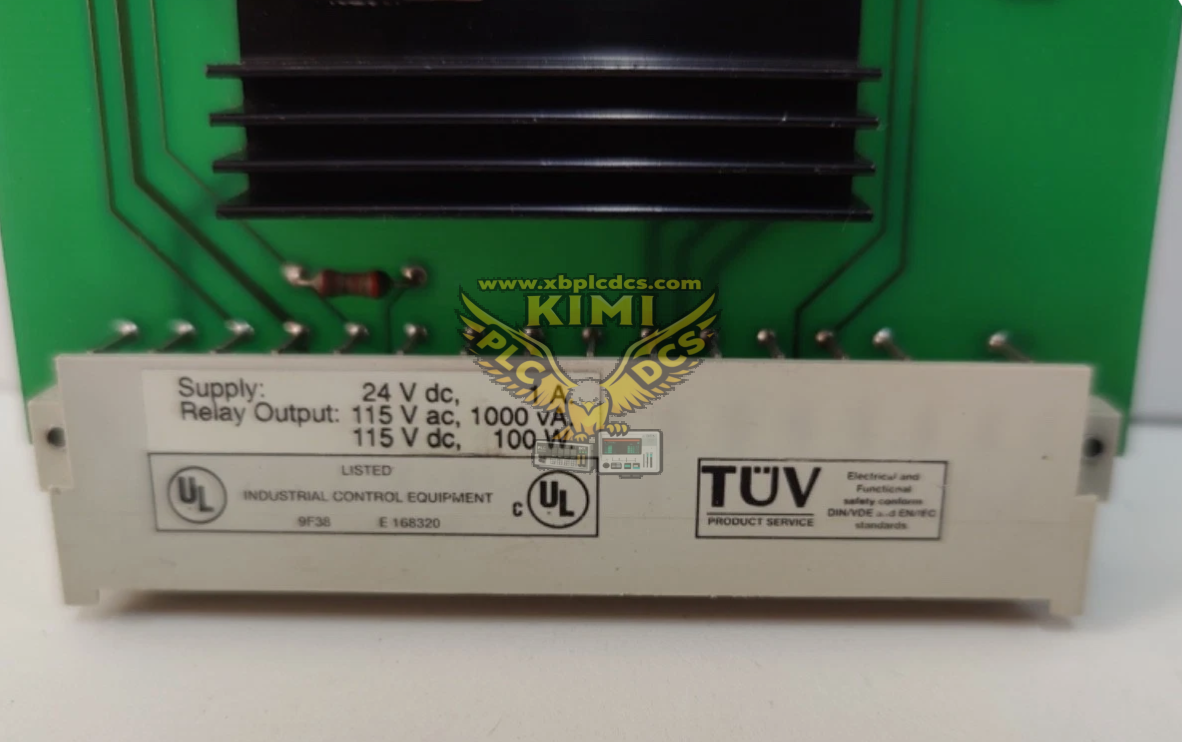

The 10310/3/1CC is an Earth Leakage Detector module for Honeywell FSC / Safety Manager SIS rack system. It is a hot-swappable rack card used to monitor DC earth leakage in safety instrumented system power circuits. This legacy safety module provides leakage current detection and alarm/trip output for 24VDC safety power supply loops, widely deployed in critical process safety systems.

Key Functions

• Real-time continuous monitoring of DC earth leakage current in safety power circuits
• Adjustable leakage threshold detection, alarm and relay trip output
• Built-in manual self-test function for periodic module verification
• Multiple detection frequency modes: DC continuous, 1Hz, 0.25Hz pulse mode
• Front panel LED status indication for mode, fault and leakage alarm
• Backplane communication to send fault & leakage status to SIS controller

Application Scenarios

Used in oil & gas, petrochemical, refinery, power plant and chemical plants. Installed in ESD emergency shutdown systems and burner management systems to protect safety power circuits from earth fault risks, preventing equipment damage and unsafe process trips.

Common Issues & Troubleshooting

• False leakage alarm: Check DC wiring insulation degradation, stray capacitance on long cables
• Self-test failure: Dirty backplane connector, module power supply abnormality
• No LED indication: Verify rack 24VDC power input and fuse condition
• Alarm relay no action: Inspect relay output wiring and terminal loose connection
• Intermittent leakage signal: Cable aging, moisture ingress in field junction boxes
