Product Description

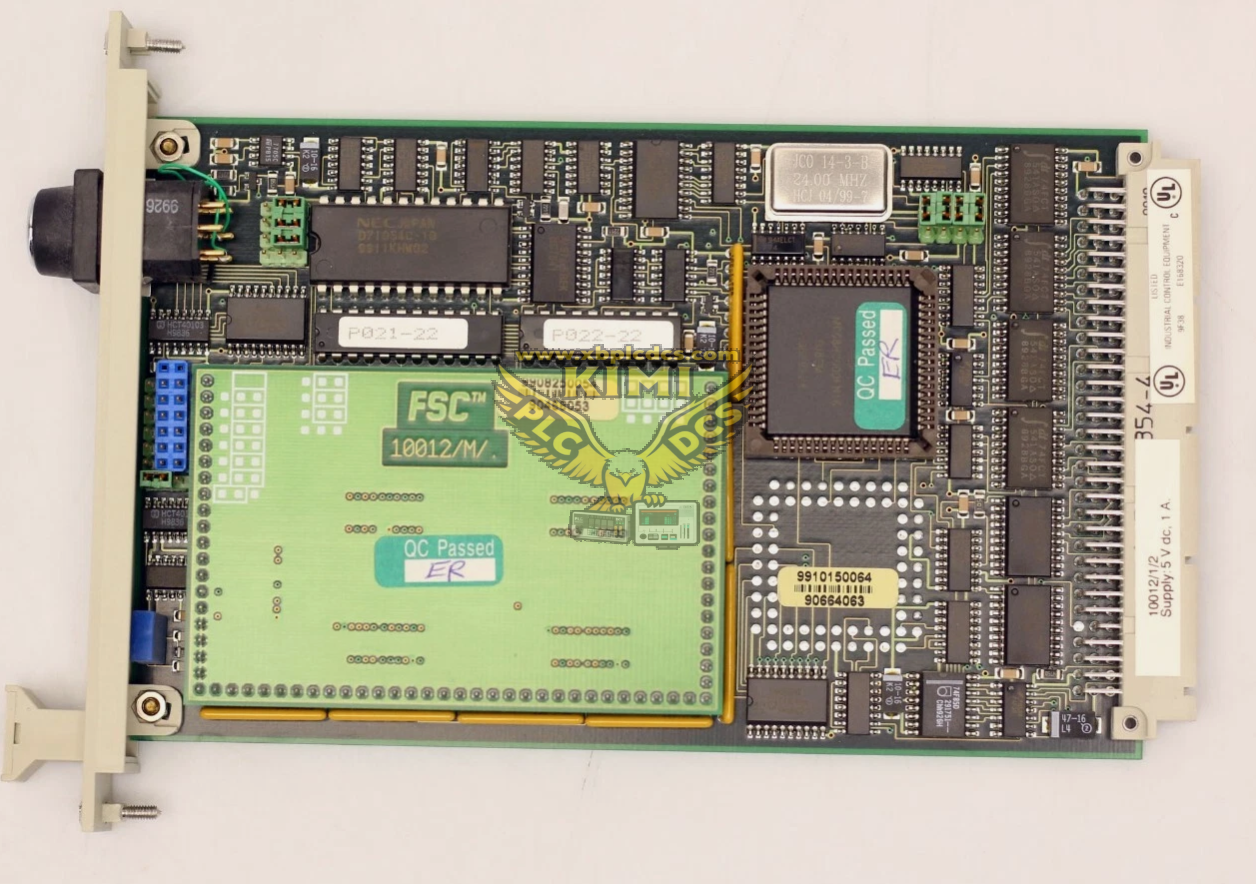

The 10012/1/2 is a Honeywell industrial DCS/PLC digital output module, designed for rack-mounted installation in Honeywell control system cabinets. It is a discontinued legacy control card widely used in process safety control systems, built with robust industrial-grade components for continuous operation under harsh factory environments.

Key Functions

• Digital signal output for field actuators, solenoid valves and relays
• Built-in hardware self-diagnosis, fault detection and alarm reporting
• Galvanic isolation between field side and control backplane to suppress interference
• Hot swap capable in qualified redundant system configurations
• Communicate with controller CPU via internal system backplane bus

Application Scenarios

Widely deployed in petrochemical plants, power generation, gas processing, refining and water treatment industries. Used for safety interlock, burner management and critical process control applications.

Common Issues & Troubleshooting

• No channel output: Check field wiring, fuse status and backplane connection; verify module fault LED status
• Random output fluctuation: Caused by ground loop or surge interference; inspect isolation and shielding
• Module communication failure: Clean edge connectors, check rack power supply and backplane integrity
• Over-temperature alarm: Dust accumulation on PCB, poor cabinet ventilation
