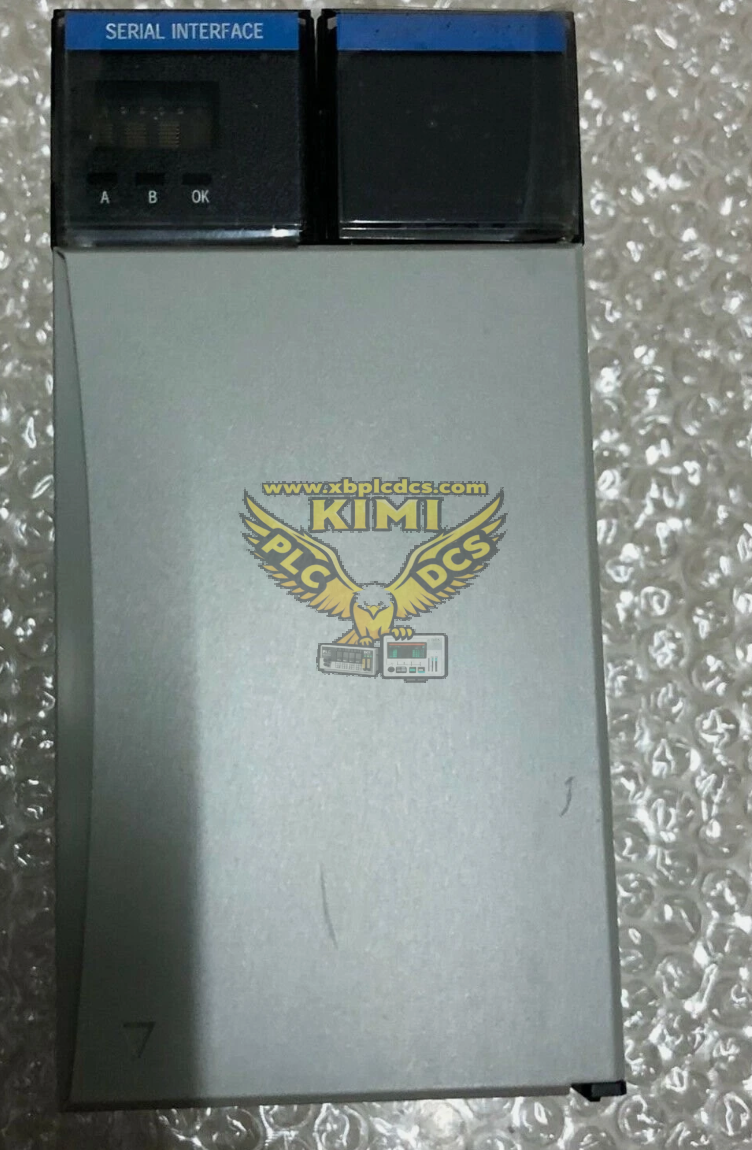

Honeywell TC‑MUX021 (TCMUX021) Serial Multiplexer Interface Module

Product Description

The TC‑MUX021 is a rack‑mounted dual‑channel isolated serial communication interface module manufactured by Honeywell for the Expert LS DCS control system. It provides two galvanically isolated RS485/RS422 serial ports and supports Modbus RTU and Allen‑Bradley DF1 protocols. Powered by 24VDC from the backplane, it adopts a single‑slot compact structure and conformal coated PCB to resist dust, humidity, vibration and electromagnetic interference in industrial control cabinets. It acts as a bridge between the DCS controller and field serial devices, widely stocked as spare DCS communication hardware for process plants.

Product Functions

• Dual isolated serial channels for RS485 / RS422 communication, supporting multi‑drop field bus topology
• Protocol conversion and data forwarding between DCS controller and Modbus RTU transmitters, inverters and third‑party PLCs
• Real‑time collection of field device measurement values, status signals and fault alarms and upload to DCS controller
• Receive control commands from DCS and write setpoints and parameters to connected serial field instruments
• Front‑panel RUN, COM and ERR LED indicators for running status, communication activity and fault diagnosis
• Built‑in hardware self‑diagnosis to detect channel failure, bus short‑circuit and communication timeout
• Works with dedicated FTA terminal assembly (MU‑TSIM12 / MU‑TSIA12) for field wiring connection

Application Scenarios

• Chemical and petrochemical DCS control system serial instrument networking and data acquisition
• Power plant boiler and auxiliary control panels for connecting Modbus transmitters and frequency converters
• Oil & gas pipeline, offshore platform and remote process monitoring control cabinets
• Water treatment, pulp & paper and metallurgy factory distributed control systems
• Integration of legacy serial devices into Honeywell Expert LS DCS platform
• Spare replacement and retrofit of aging Honeywell TC‑MUX021 communication modules

Common Problems

• Module RUN LED off and no communication：24VDC backplane power failure, loose rack backplane contact or internal circuit damage
• ERR light flashes and intermittent communication dropout：missing bus termination resistor, ground loop interference or damaged field cable shielding
• Some field instruments cannot be scanned：incorrect Modbus slave address, baud rate mismatch or bus overloading
• Data values freeze or refresh slowly：long communication cable distance, bus noise interference or FTA terminal block corrosion
• Communication channel fails while another channel works normally：single‑channel transceiver chip damage or short circuit on one serial bus
• DCS cannot recognize the module：wrong hardware slot configuration, incompatible DCS firmware version or backplane bus fault
• Unstable operation after long‑term running：dust accumulation on PCB, component aging and high temperature inside the control cabinet
