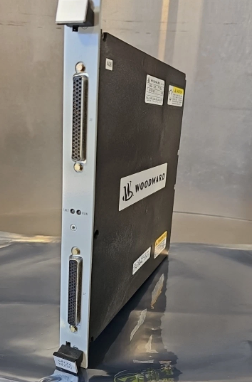

WOODWARD 5466-1158 MicroNet Simplex HDDIO High-Density Discrete I/O Module

Product Brief Description

Woodward 5466-1158 is a MicroNet Smart-Plus high-density discrete I/O (HDDIO) module for simplex control systems. It offers 48 discrete input channels and 24 discrete output channels for digital signal acquisition and relay drive. It plugs into the MicroNet chassis backplane and communicates with the main CPU for turbine auxiliary logic, status feedback and sequence control. This module requires matching FTM terminal boards, no potentiometer calibration needed, widely stocked as spare replacement for gas and steam turbine control cabinets.

Product Features & Functions

• 48 digital discrete inputs + 24 digital discrete outputs in one single module
• Galvanic isolation for each channel to reduce ground loop and noise interference
• Designed to pair with dedicated FTM terminal modules for field wiring connection
• Full built-in channel self-diagnosis, detects open circuit, short circuit and channel faults
• No potentiometers; factory calibrated, no manual adjustment required during commissioning
• High-speed backplane communication to exchange digital status with MicroNet CPU
• Onboard LED indicators for module power, bus communication and individual channel alarms
• 24VDC power supply, conformal coated PCB for high humidity and corrosive cabinet environments
• Supports Coder 5.03 and newer firmware versions for MicroNet Plus systems

Application Scenarios

• Steam turbine and gas turbine auxiliary sequence control
• Compressor skid digital status monitoring and valve solenoid control
• Cogeneration CHP plants and captive power station control systems
• Oil & gas refinery and pipeline turbomachinery control cabinets
• Legacy MicroNet simplex system maintenance, spare replacement and retrofit
