INDRAMAT 109-525-2237A-3 Product Description

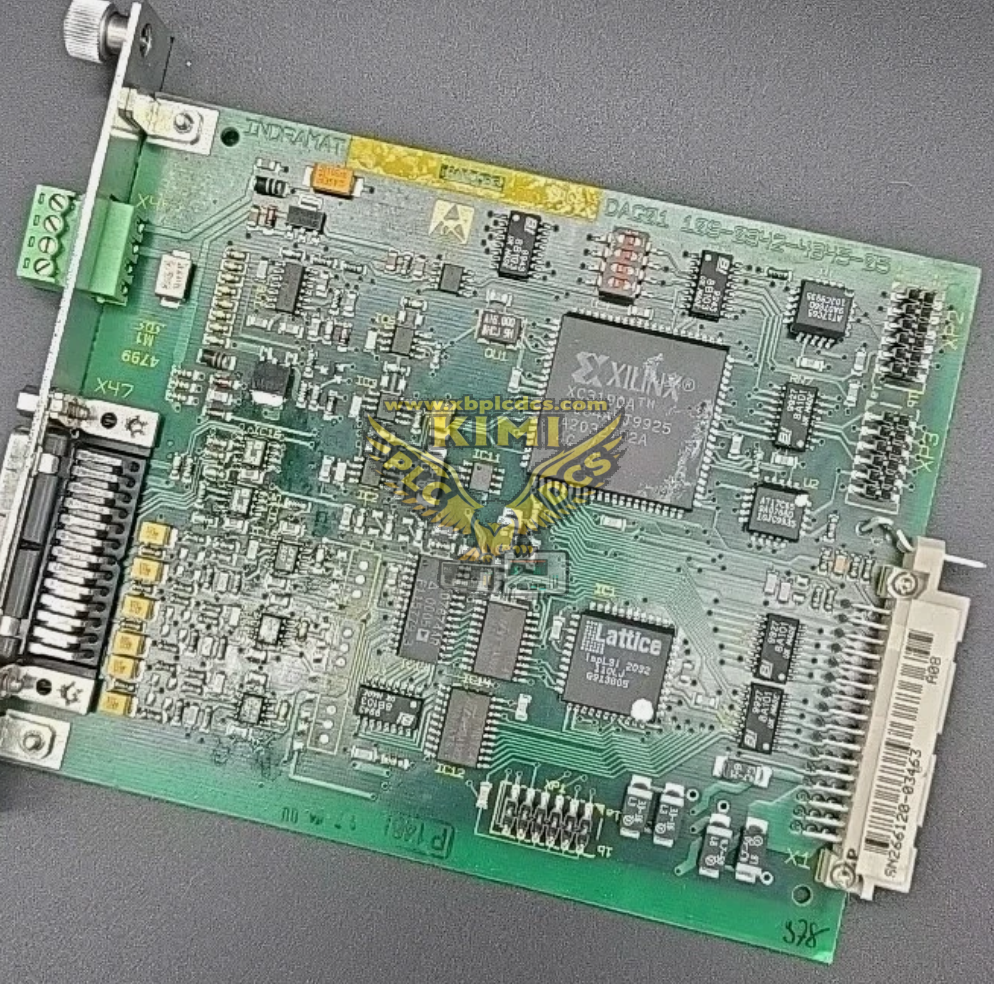

INDRAMAT 109-525-2237A-3 is a main servo control board for Rexroth Indramat TDM legacy servo drive racks. This DSP-based PCB executes three-loop closed-loop control (current, speed, position), receives CNC motion commands, processes encoder feedback signals and outputs IGBT gate drive pulses to the power stage. It handles motion interpolation, position regulation, fault monitoring and fieldbus communication for servo axes on CNC machine tools. Conformal coated for harsh workshop environments, this plug-in board is stocked as fully tested spare hardware for TDM servo drive cabinet overhaul and axis replacement.

Product Features

• Core main control board for Indramat TDM series servo drive units
• 3-loop PID closed-loop calculation: current loop, speed loop and position loop
• Processes incremental encoder feedback for high-precision axis positioning
• Generates PWM/IGBT drive signals for servo power amplifier stage
• Supports SERCOS and PROFIBUS fieldbus communication with CNC/PLC host
• Comprehensive protection: overcurrent, overvoltage, undervoltage, overload, encoder loss
• 24VDC control power supply, works with 300–540VDC DC bus
• Conformal coated PCB for resistance to oil mist, dust and cabinet vibration
• Gold-plated edge connector for stable backplane plug-in connection
• Onboard LED indicators for power status, operation and fault diagnostics

Application Scenarios

• CNC machining center Indramat TDM servo axis control replacement
• Milling, boring and grinding machine linear and rotary servo axes
• Automated assembly, pick & place and packaging production lines
• Metal cutting machine tool high dynamic positioning systems
• Retrofit and emergency maintenance for legacy Indramat TDM servo racks
• Spare replacement for machine tool servo drives requiring SERCOS interface
