Bosch Rexroth Indramat PPC‑R22.1N‑T‑Q1‑P2‑NN‑FW Product Description

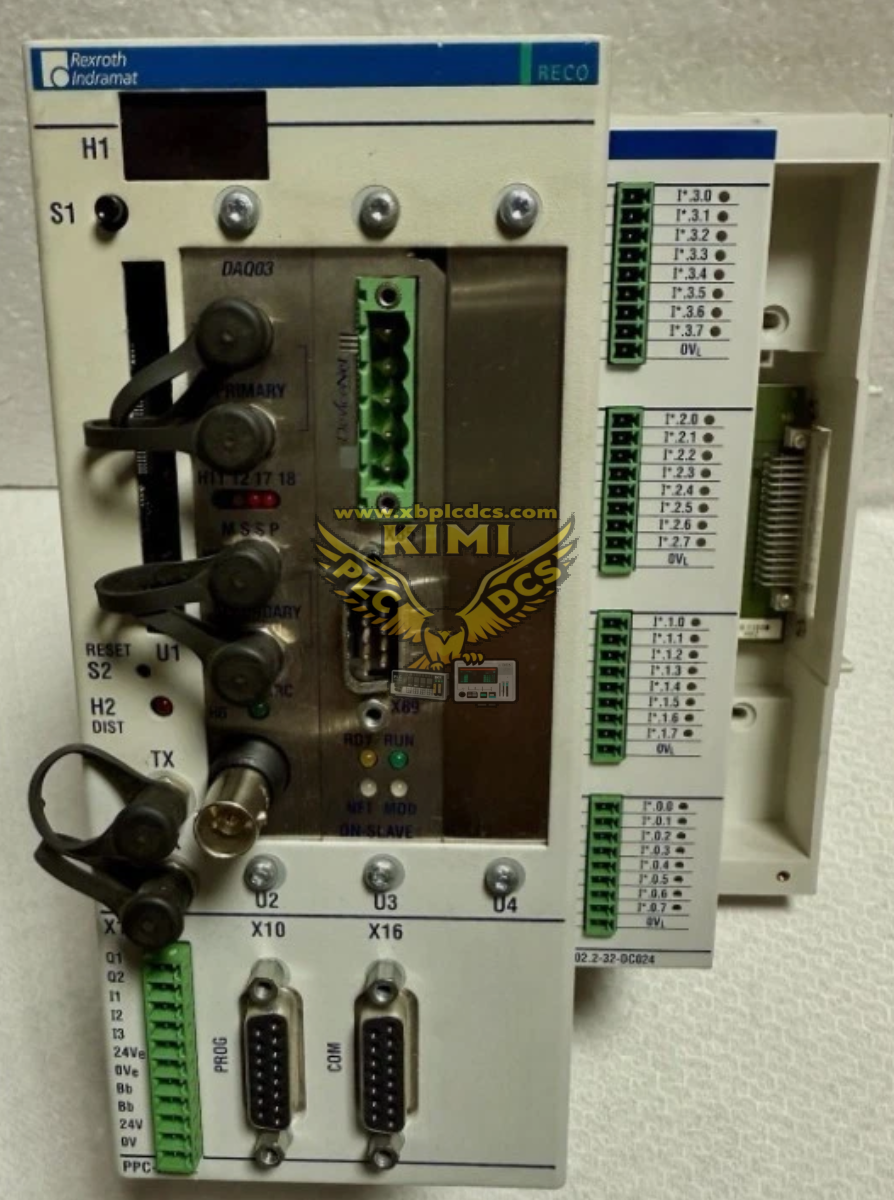

The PPC‑R22.1N‑T‑Q1‑P2‑NN‑FW is a high‑performance multi‑axis motion‑logic controller of Rexroth Indramat PPC‑R22.1 series (VisualMotion 10 platform). It is rack‑mounted unit for RECO‑02 backplane rack, integrating motion control, PLC logic processing and fieldbus communication. Q1 stands for incremental encoder / SIN/COS high‑speed position input channel; P2 represents DPS01 PROFIBUS‑DP slave interface; T denotes hardware variant, FW means firmware‑capable unit. It communicates with Indramat DIAX04 / EcoDrive03 servo drives via SERCOS fiber‑optic bus, coordinating up to 40 axes for complex synchronized automation equipment. This legacy product is end‑of‑manufacture, mainly used as spare‑part for existing production lines.

Product Features

• Combines multi‑axis motion control + PLC logic control on single hardware, VisualMotion10 control platform, fits RECO‑02 rack backplane
• Q1: high‑speed incremental / SIN‑COS encoder input for external position acquisition; P2: onboard DPS01 PROFIBUS‑DP slave interface for host‑PLC communication
• SERCOS fiber‑optic real‑time bus for multi‑axis synchronous control with DIAX04, EcoDrive03 series servo drives
• Supports Cross‑Communication and DAQ03 high‑speed data acquisition interface, fast inter‑controller data exchange and signal sampling
• Power supply: 24 VDC (19.2‑30 VDC allowable range), conforms to EN61131‑2 standard; IP20 protection for cabinet‑only installation
• Programmed via VisualMotion Toolkit software, supports motion profile programming, fault recording and full diagnostic functions
• Without onboard memory expansion module; provides expansion slots for optional communication / I/O modules, no local display screen
• Discontinued original production; firmware and project parameters must be downloaded before commissioning after hardware replacement

Application Scenarios

• Packaging machinery, form‑fill‑seal, cartoning equipment multi‑axis synchronized motion‑control systems
• Printing & converting machinery, web‑processing production lines with Indramat DIAX04 / EcoDrive03 drive system
• Gantry automation, pick‑and‑place and cartesian robot control units for high‑dynamic cyclic‑motion equipment
• Special‑purpose automated machinery requiring complex cam‑profile, electronic‑cam and multi‑axis interpolation functions
• Retrofit & spare‑part replacement for legacy Indramat VisualMotion10‑based production‑line cabinets
• Food‑processing and pharmaceutical automation equipment maintenance projects for existing PPC‑R22.1 installations
