INDRAMAT 109-0943-4A19-00 Product Description

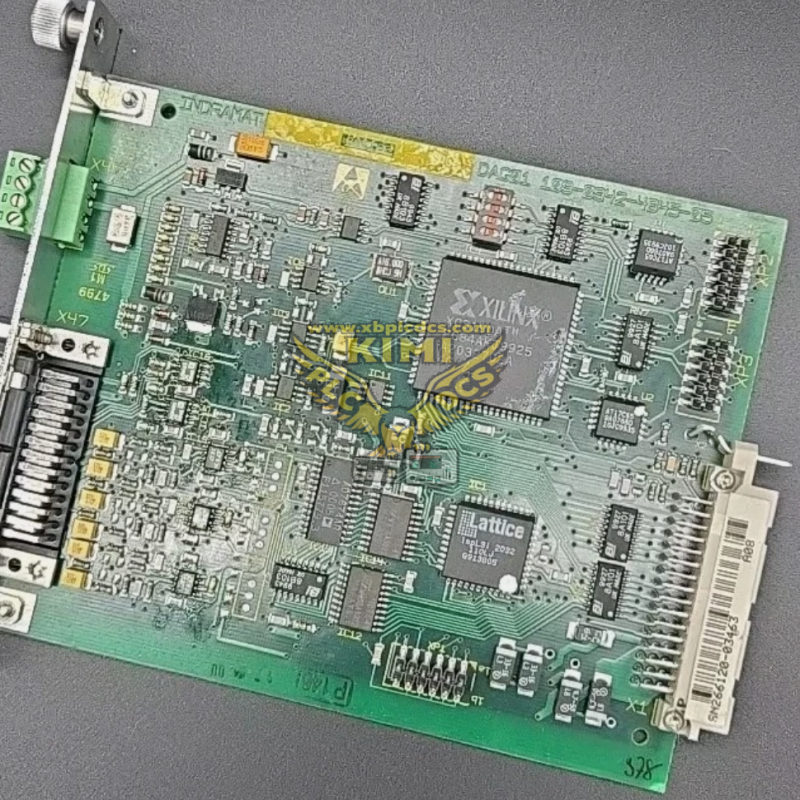

INDRAMAT 109-0943-4A19-00 is a spindle drive control board for Rexroth Indramat legacy spindle servo systems. This main control PCB executes spindle closed-loop speed/position control, processes CNC command signals and encoder position feedback, generates PWM gate signals for the power amplifier stage, and manages all drive fault monitoring. It pairs with the power board such as 109-0943-3801-05 inside Indramat spindle drive racks for CNC machine high-speed spindle control. Conformal coated for factory environments, this board is stocked as fully tested spare part for machine tool drive overhaul and emergency replacement.

Product Features

• Main control logic board for Indramat spindle servo drive unit
• Receives analog/digital setpoint commands from CNC controller
• Reads spindle encoder feedback for high-precision closed-loop regulation
• Outputs PWM control signals to the spindle power amplifier PCB
• Built-in multi-protection logic: overcurrent, overspeed, over-temperature, undervoltage
• Conformal coated PCB to resist dust, oil mist, humidity and cabinet vibration
• Front-side LED indicators for power status, operation and fault diagnosis
• Gold-plated edge connector for reliable plug-in connection with rack backplane
• High EMC immunity to suppress interference from machine tool power circuits

Application Scenarios

• CNC machining center Indramat spindle drive control board replacement
• Milling, boring and grinding machine high-speed spindle control systems
• Mold manufacturing and heavy metal cutting machine tool spindle drives
• Automated production line spindle motor speed and position control cabinets
• Retrofit and maintenance of legacy Indramat RC spindle drive racks
• Emergency spare parts for CNC equipment spindle servo system breakdown
