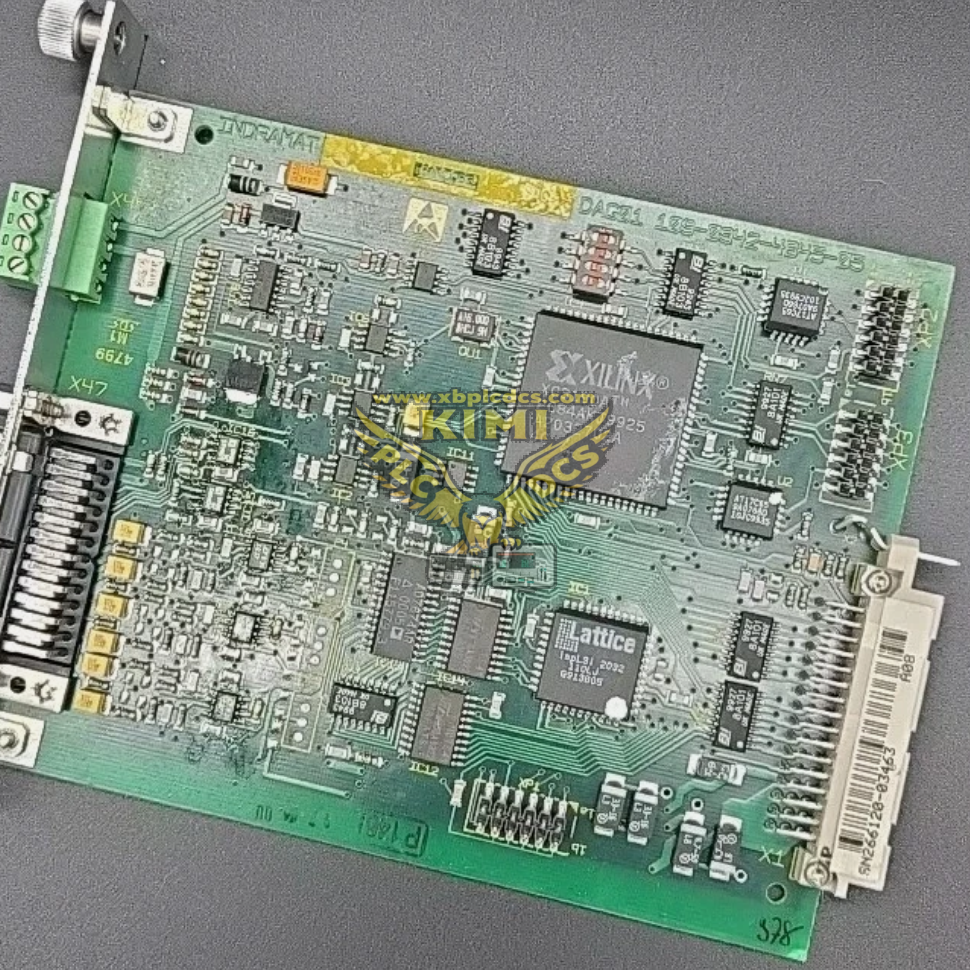

INDRAMAT 109-0943-4A03-02 Product Description

INDRAMAT 109-0943-4A03-02 is a control logic PCB board for Rexroth Indramat legacy spindle servo drive systems. It acts as the signal & motion control motherboard, responsible for receiving CNC command signals, closed-loop speed/position calculation, feedback processing, fault management and sending drive signals to the spindle power stage board. Working together with the power amplifier board (like 109-0943-3801-05), it implements high-precision spindle speed regulation for CNC machine tools. This conformal coated circuit board is stocked as fully tested spare hardware for old Indramat spindle drive cabinet maintenance and replacement.

Product Features

• Main control board for Indramat spindle servo drive, executes motion control algorithm
• Processes spindle encoder feedback and analog/digital command signals from CNC
• Generates PWM drive signals to the spindle power amplifier board
• Integrated comprehensive protection logic: overcurrent, overspeed, over-temperature, voltage monitoring
• Conformal coated PCB, resistant to dust, humidity and vibration inside machine tool cabinet
• Onboard status LEDs for fault code indication and rapid on-site troubleshooting
• Gold-plated edge connectors for stable backplane plug-in connection
• High EMC noise immunity against interference from machine tool power circuits
• Modular plug-in design, direct slot swap for matching Indramat spindle drive rack

Application Scenarios

• CNC machining center Indramat spindle drive control board replacement
• Milling, boring and grinding machine high-speed spindle control systems
• Automated production line spindle motor speed and position closed-loop control
• Mold processing machine tool legacy Indramat spindle drive retrofit & overhaul
• Metal cutting CNC equipment emergency spare parts for spindle control racks
• Maintenance replacement for Rexroth Indramat RC series spindle drive units
