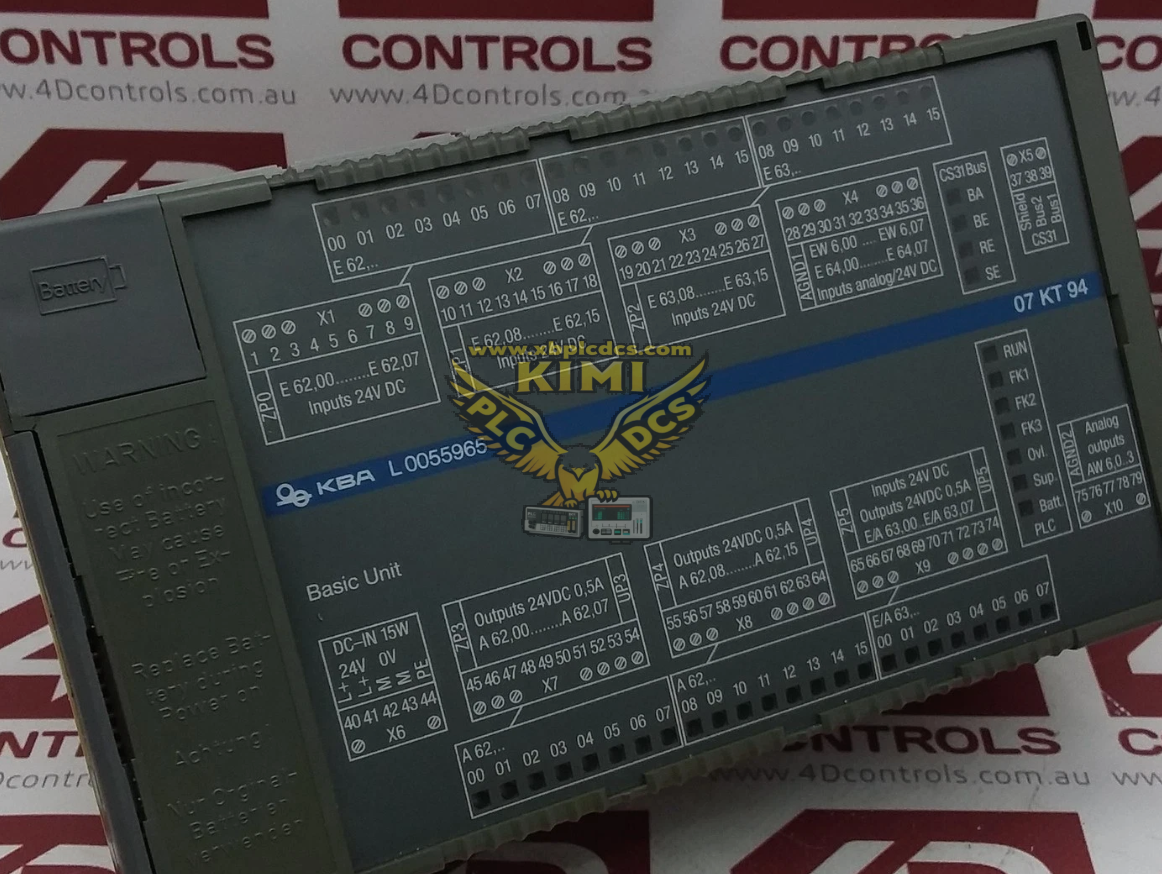

ABB 07KT94 (GJR5252100R3261) Advant Controller AC31‑90 CPU Basic Unit

Product Description

07KT94, order code GJR5252100R3261, is high‑performance central basic unit for ABB Advant Controller AC31‑90 PLC platform. Powered by Motorola 68030 32‑bit processor, equipped with integrated local I/O, CS31 field‑bus master, dual RS‑232 ports, flash program storage and lithium data backup battery. Supply voltage 24 VDC, DIN‑rail TS35 mounting, IP20 protection. This unit acts as CS31 bus master to drive distributed remote digital/analog I/O slaves such as 07AC91, 07DI92, 07DO92. Widely deployed on legacy industrial equipment, printing machinery and semiconductor fab auxiliary skids for waste‑gas abatement, water‑treatment and gas‑panel local control systems.

Key Functions

• 32‑bit CPU, program memory 240 kB, user data memory 120 kB; supports Ladder Diagram, Structured Text programming
• Integrated local I/O: 24‑channel 24VDC digital input, 16‑channel digital output, 8 analog input, 4 analog output channels
• CS31 (RS‑485) field‑bus master, baud‑rate 187.5 kBaud; supports up to 61 CS31 slave I/O stations on single bus segment
• Dual RS‑232 interfaces: for programming tool connection, Modbus‑RTU, ASCII host communication
• Flash‑EPROM for program persistent storage; lithium backup battery retains retentive data, real‑time clock during power loss
• Front‑panel LED status indicators: Power, RUN, STOP, System Fault, CS31 bus error, channel diagnostic status
• High‑speed counter input, PID closed‑loop control function blocks built‑in firmware
• Operating temperature range: 0 °C ~ +55 °C; EMC compliant for industrial cabinet environment

Application Scenarios

• ABB AC31‑90 distributed automation systems as CS31 master controller
• Semiconductor factory auxiliary subsystems: scrubber abatement, wastewater treatment, gas cabinet local sequencing control
• Printing machinery, packaging equipment, material‑handling and process‑auxiliary control cabinets
• Retrofit & spare‑part replacement for legacy installed AC31‑90 automation lines

Common Issues & FAQ

• CS31 bus error / remote I/O stations drop‑out: Verify 120 Ω termination resistor fitted on both physical bus ends; check station‑address no conflict among slaves; inspect shielded RS‑485 cable routing, grounding and cable‑length limit; confirm 24 VDC power supply for remote slave modules.
• Program loss / RTC time reset after power‑cycle: Replace aged lithium backup battery; confirm application program is saved into flash‑EPROM instead of volatile RAM.
• Cannot connect programming tool: Check RS‑232 cable wiring, controller RUN‑STOP switch position; match baud‑rate, parity and protocol setting on engineering software.
• ERR LED steady‑on: Read PLC system diagnostic buffer; possible causes: program error, bus hardware failure, I/O module short‑circuit, internal hardware fault.
• Refurbished‑unit note: After replacement, download original user program, verify CS31 bus‑node address configuration, perform local‑I/O loop‑back test, full CS31 slave‑station scan and complete equipment sequence test before commissioning. Check backup‑battery condition prior to production operation.
