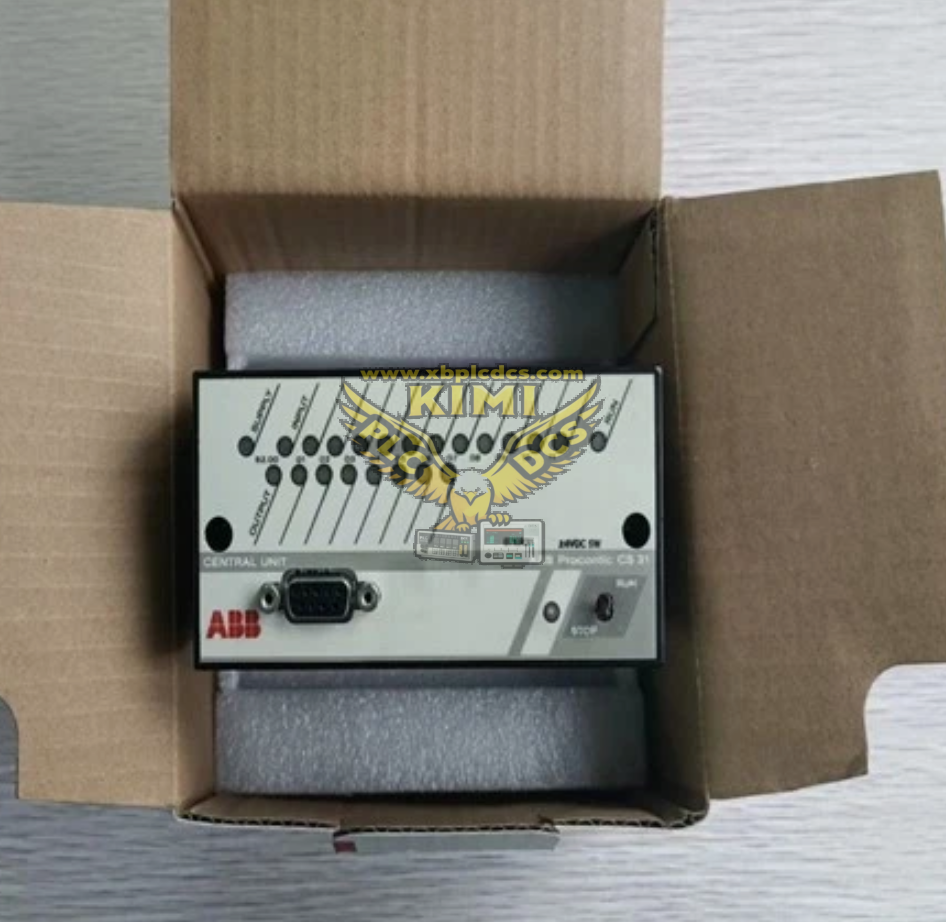

ABB 07KR31 Advant Controller AC31‑30 CS31 Master PLC Central Unit

Product Description

07KR31 is ABB AC31‑30 series compact PLC central unit with integrated CS31 field‑bus master capability. It is relay‑output type CPU, supporting standalone operation or acting as CS31 RS‑485 bus master to drive distributed remote I/O stations. Program memory is 2 k instructions (~8 KB). Equipped with built‑in digital I/O, real‑time clock, RS232 serial port and lithium‑battery data backup. Requires ECZ series plug‑in base unit, DIP switches on base set CS31 station address (0‑61). Available power supply variants: 24 VDC, 120 VAC, 230 VAC. Widely used for legacy factory auxiliary skids, semiconductor fab waste‑gas abatement, water‑treatment and small‑scale machine automation systems.

Key Functions

• Program capacity: 2 k instructions; supports Ladder Diagram programming; password protection for user application program
• On‑board I/O: 12‑channel 24 VDC digital inputs; 8‑channel relay outputs (max 2 A per contact)
• 1‑channel 10 kHz high‑speed counter input for pulse‑signal acquisition
• CS31 bus master (RS‑485 twisted‑pair); supports up to 61 remote CS31 slave I/O modules on one bus segment
• RS232 serial port: programming, ASCII communication, Modbus‑RTU master / slave mode selectable
• Built‑in real‑time clock; lithium backup battery retains program, retentive data and RTC during power loss (typical battery life ~10 years)
• Front‑panel LED indicators for power, RUN/STOP, system fault, bus error and channel status
• Operating temperature 0 °C ~ +55 °C; IP20 protection; DIN‑rail TS35 mounting; EMC compliant for industrial environment

Application Scenarios

• ABB Advant Controller AC31‑30 CS31 distributed automation control systems
• Semiconductor fab auxiliary equipment: abatement scrubber, waste‑water, gas‑panel auxiliary local sequencing control
• Packaging machinery, material handling, water‑treatment, small‑plant process‑auxiliary cabinets
• Small‑to‑medium automation using CS31 remote analog / digital I/O expansion nodes

Common Issues & FAQ

• Program lost after power‑cycle / RTC stops: Check lithium backup‑battery condition; replace aged battery; ensure user program is saved to flash memory.
• CS31 bus fault / remote‑I/O stations drop‑off: Confirm DIP‑switch station‑address no conflict; install 120 Ω termination resistor at both physical bus ends; inspect shielded RS‑485 cable routing and grounding; verify 24 VDC power for remote slaves.
• Relay output intermittent or no actuation: Check relay‑contact wear and pitting; add free‑wheel diodes for inductive loads; ensure load‑current stays within 2 A per‑contact rating.
• Cannot connect programming tool: Verify RS232 programming‑cable; check controller RUN‑STOP switch; match serial baud‑rate and protocol settings.
• Refurbished‑unit note: After replacement install matching ECZ base, set correct CS31 address, download original user program, execute local‑I/O loop‑back test, full CS31 bus scan and complete equipment‑sequence test before commissioning. Check backup‑battery status before putting into service.
