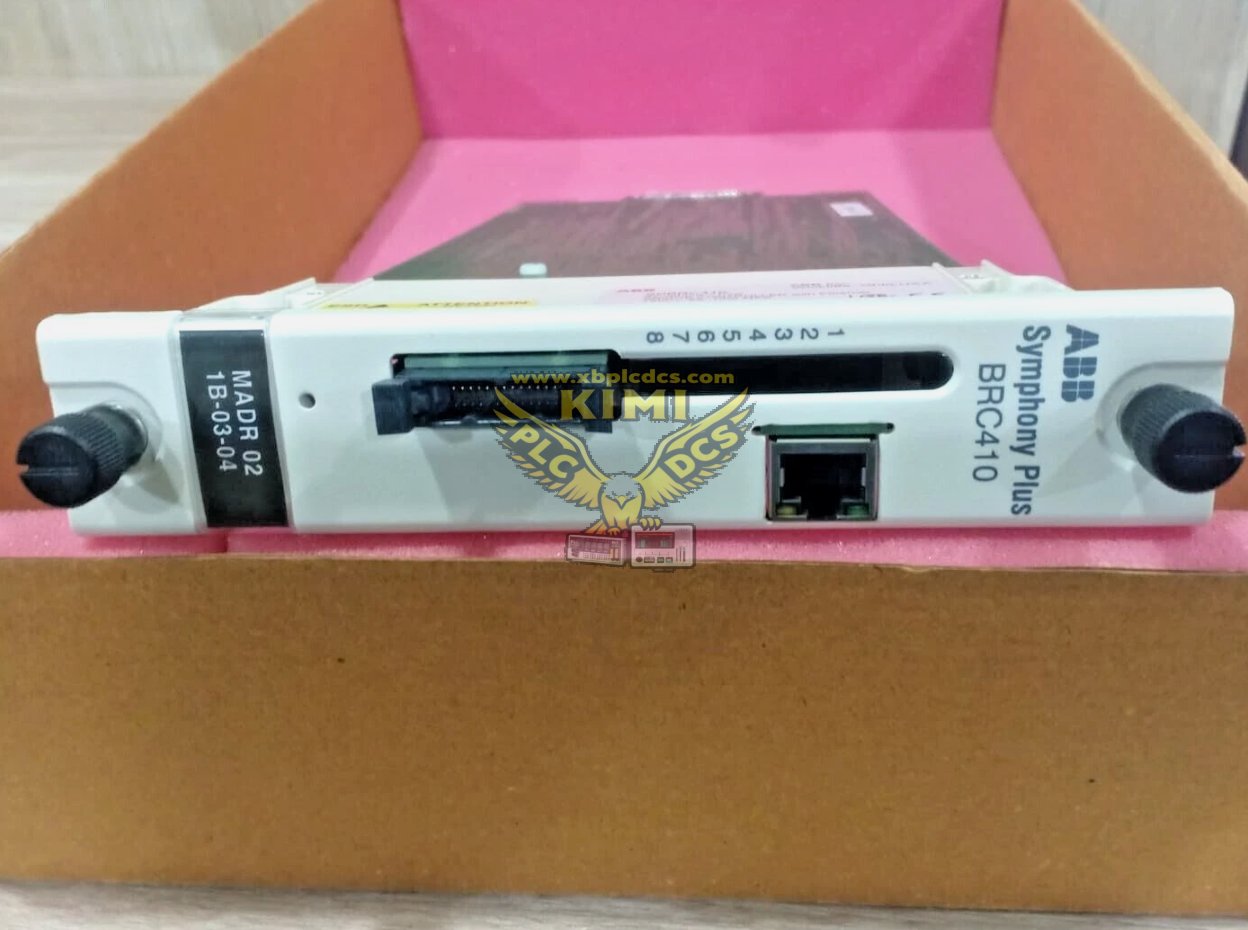

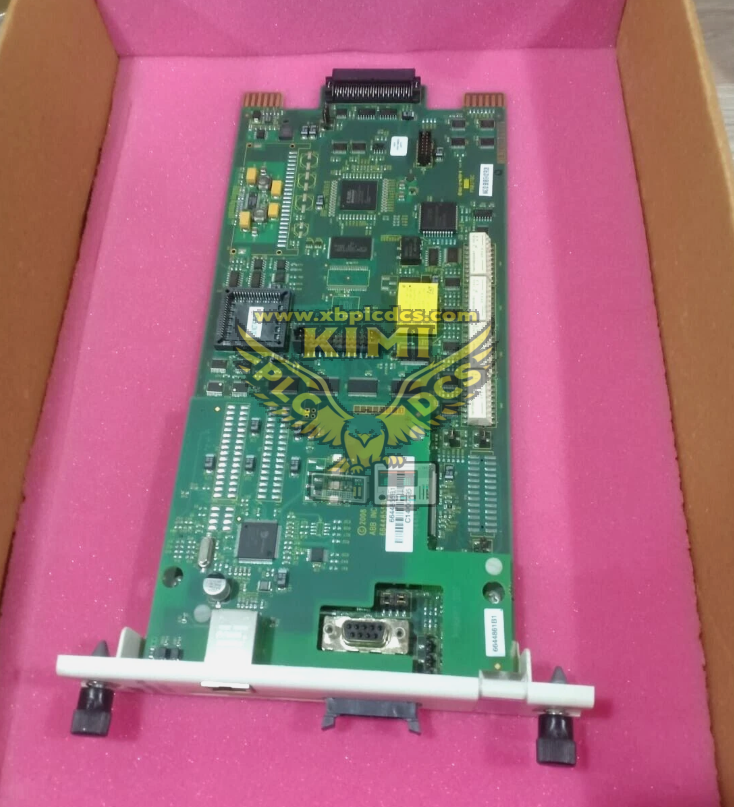

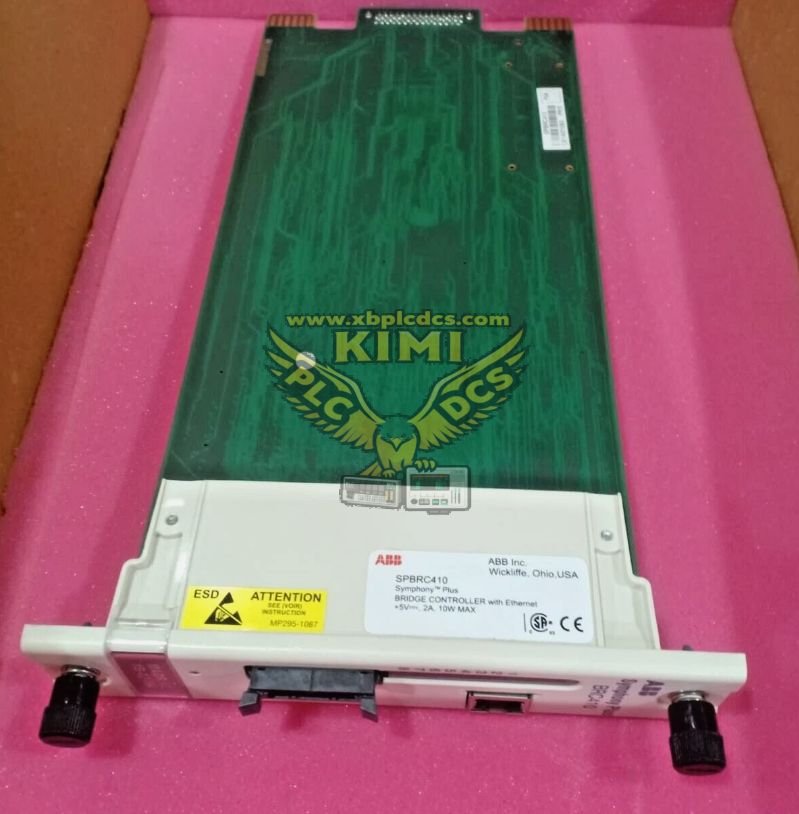

ABB BRC-410, part number P-HC-BRC41000000 (also labeled SPBRC410), is a single-slot high-performance bridge controller processor designed for ABB Symphony Plus (S+Control HR series) and legacy Bailey INFI 90 distributed control systems. Built on industrial ColdFire embedded microprocessor architecture, it acts as both a real-time process control unit and a cross-subsystem communication bridge to unify Harmony block I/O, rack I/O, S800 I/O and remote Hnet field subsystems within a single DCS cabinet. Equipped with built-in flash non-volatile memory and battery-backed RAM with RTC, it stores control logic, process recipes and historical fault timestamps without data loss during power outages. The module integrates 10/100Mbps Ethernet interface supporting Modbus TCP, plus dedicated Controlway and IISAC01 station link serial ports for system internal communication. Dual redundant hot-standby pairing is fully supported via dedicated redundancy cables, enabling bumpless primary/backup switchover for zero-downtime critical process control loops. The PCB adopts conformal coating for dust, humidity and corrosive gas resistance, with an operating temperature range of 0°C to +60°C, complying with CE EMC and low-voltage industrial standards. Multi-color front-panel LED arrays display power status, run mode, bus communication health and hardware fault codes for rapid on-site diagnosis. It occupies one slot of the MMU multi-microprocessor rack backplane and receives 24VDC power supply from the rack power unit.

• Real-time process control execution: run PID closed-loop regulation, interlock logic, batch sequence control and mathematical calculation algorithms via Composer engineering software programming
• Multi-subsystem communication bridging: route bidirectional real-time data between local rack I/O, remote Hnet redundant I/O subsystems and upper-level operator HMI stations
• Modbus TCP Ethernet gateway function: exchange process data with third-party PLCs, smart transmitters, SCADA servers and remote monitoring platforms
• Dual redundant hot standby architecture: automatic seamless switchover between paired BRC-410 controllers upon primary hardware or communication failure with no process output interruption
• Complete I/O bus management: coordinate data acquisition and output control for analog/digital Harmony and S800 I/O modules via PBA programmable bus adapters
• Non-volatile program storage: dual-bank flash memory for redundant firmware and control logic backup to avoid boot failure caused by incomplete downloads
• Battery-backed RAM & real-time clock: retain process parameters, historical alarm logs and accurate time stamps through full rack power loss events
• Comprehensive hardware self-diagnosis: backplane bus error, memory corruption, Ethernet link loss, Hnet communication breakdown and internal CPU fault detection with coded fault indicators
• Front-panel manual stop/reset switch for local maintenance mode switching and controlled controller reboot during on-site configuration updates
• Deterministic control scan cycle scheduling to guarantee consistent response speed for fast dynamic industrial process control loops

• Support for Batch 90, function block and C-language control programming to adapt to simple discrete and complex continuous process automation demands

• Thermal Power Generation Plants: Boiler combustion control, steam turbine auxiliary regulation, flue gas desulfurization and denitrification DCS core control racks
• Petrochemical Refineries: Distillation tower, catalytic cracking unit, reactor and pipeline pressure/flow/temperature closed-loop control systems
• Oil & Gas Onshore/Offshore Facilities: Wellhead monitoring, natural gas compressor control, crude storage tank and pipeline safety interlock automation
• Water & Wastewater Treatment Plants: Pump station group regulation, chemical dosing automatic control and biochemical reaction pool monitoring DCS stations
• Pulp & Paper Mills: Pulp cooking temperature control, paper machine speed synchronization and wastewater discharge process monitoring
• Mining & Metallurgical Industry: Smelting furnace temperature regulation, ore crushing conveyor interlock and cooling water circulation control systems
• Chemical Fertilizer Plants: Ammonia synthesis reactor, catalyst bed monitoring and high-pressure gas pipeline safety control loops

• DCS System Retrofit & Maintenance: Spare replacement controller for legacy ABB INFI 90 and early Symphony Plus control cabinets during plant upgrade projects

• Q: BRC-410 fails to enter Execute mode after program download, fault LED stays red?
  A: Possible causes include incompatible Composer software version, corrupted control logic program, mismatched redundant controller firmware versions or incorrect DIP switch rack address settings; restore verified backup project and align firmware revisions for primary/backup pairs.
• Q: Ethernet Modbus TCP communication drops frequently with third-party field instruments?
  A: Check damaged Ethernet cables, IP address conflicts, unconfigured subnet gateway, excessive network broadcast traffic or mismatched Modbus timeout parameters; isolate control network from office IT networks and enable communication filtering in controller settings.
• Q: Can BRC-410 modules be hot swapped while the MMU rack remains powered on?
  A: Hot swap is only permitted for standby redundant backup controllers. Power off the entire rack backplane before removing primary running controllers to prevent Hnet bus crash and accidental process interlock trips.
• Q: All recipe and alarm log data disappears after rack power cycle despite intact backup battery?
  A: Replace aged lithium RTC backup battery; inspect loose battery holder PCB contacts; confirm RAM backup enable jumper is set correctly and store critical programs to flash memory permanently.
• Q: Redundant switchover fails when primary BRC-410 triggers hardware fault, backup does not take over control?
  A: Verify secure connection of redundant interlink cable; match firmware versions of primary and backup controllers; reset redundant DIP switch configuration and perform offline redundancy synchronization test.
• Q: Hnet remote I/O subsystems lose communication with BRC-410 controller randomly during operation?
  A: Inspect loose PBA bus adapter connections; check damaged Hnet fiber/copper cabling; reduce EMI interference by separating signal cables from high-current power wiring and re-terminate bus resistors.
• Q: Is ABB BRC-410 P-HC-BRC41000000 still produced for new DCS construction projects?
  A: This bridge controller model has been officially discontinued by ABB. Only refurbished, surplus and certified used spare units are available for maintaining existing Symphony Plus and INFI 90 legacy DCS systems; ABB recommends modern AC800M controllers for greenfield new projects.
