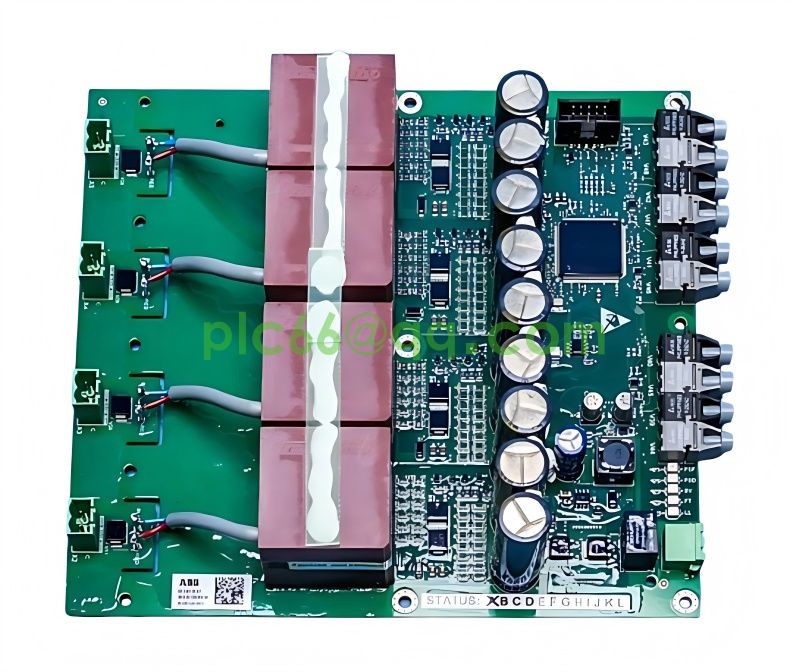

GDC801B 3BHE051592R0101 GATE DRIVER BOARD ACS6080 frequency converter

GDC801B 3BHE051592R0101 is a Crowbar Board specifically designed for ABB ACS6080 medium-voltage frequency converters.

The main function is to quickly conduct and provide a low-impedance path when the DC bus voltage is detected to be too high,

such as transient overvoltage caused by IGBT failure or abnormal energy feedback, safely dissipating the excess energy,

thereby effectively protecting the expensive power devices inside the frequency converter (especially IGBT modules) from damage. The high reliability and rapid response capability of this board card

The GDC801B is not merely a simple protection component; it is also a key part of the advanced control and protection system of the ABB ACS6080 frequency converter.

It usually communicates with the main controller of the frequency converter (such as ABB AC 800M series) through the optical fiber interface to achieve real-time status monitoring and fault diagnosis,

which greatly facilitates the maintenance and fault detection of the system. The design of GDC801B takes into account the strict requirements of industrial applications,

featuring excellent electromagnetic compatibility, a wide operating temperature range, and support for modularization and hot plugging (under safety regulations),

further enhancing the reliability and maintainability of the ACS6080 inverter in high-power, critical application fields such as metallurgy, mining, and shipping.

Product Number: 3BHE051592R0101

ABB model name: GD C801 B

Catalogue Description: GD C801 B; Gate driver plate

Detailed description: GD C801 B

Component type: New

Sales unit: Pieces

Minimum order quantity :1 piece

Total volume: 0.004 cubic meters

Net weight of the product: 0.7 kilograms

As mentioned earlier, GDC801B 3BHE051592R0101 belongs to the ACS6080 frequency converter

So, what functions does the ACS6080 frequency converter have?

Next, follow YMGK's introduction to learn more about this product in detail

ABB's new fully compatible ACS6080 drive brings precision, reliability and safety to demanding industrial processes.

ABB has expanded its fully compatible inverter product line by adding the ACS6080 medium-voltage inverter suitable for critical applications.

This brand-new frequency converter adopts ABB's independently developed breakthrough control technology,

providing high-performance motor control for the demanding production processes in industries such as mining, metallurgy and shipping. In addition,

this frequency converter can also help the factory operate more efficiently and achieve higher quality output.

The ACS6080 offers a wide range of input/output connections and supports all major fieldbus protocols, making it easy to integrate into existing systems and processes.

It is compatible with ABB Ability™ condition monitoring service, enabling customers to obtain real-time data on the status and performance of the monitored equipment from any location.

Ester Guidi, ABB's drive product manager, said: "The advantage of the ACS6080MV drive lies in its ability to bring outstanding value to industrial processes in terms of product quality, uptime,

safety and energy efficiency."

The brand-new transmission adopts arc-resistant design and certified functional safety features, providing a high level of safety for personnel and equipment.

The ACS6080 is built on ABB's universal drive architecture, enabling faster and more coordinated startup, commissioning and monitoring. Once a user has learned how to use a fully compatible drive,

they can operate any other drive in the ABB fully compatible product series.

The modular design of ACS6080 enables it to be configured for single-motor or multi-motor applications.

It can control all types of AC motors, including induction motors, synchronous motors and permanent magnet motors, without the need for any other software.

The ACS6080 can be customized for any heavy industrial application, with a power range from 5 megawatts (MW) to 36 MW.

Technical data of ACS6080

Input configuration

6. 12 or 24 pulse diode rectifiers

6. 12 or 18-pulse active rectifiers

Input voltage

6-pulse diode rectifier: 3300V

12 and 24 pulse diode rectifiers: 1725 V

6, 12, 18 pulse active rectifiers: 3160V

Input voltage variation: ±10% without derating +15/-25% derating

Input frequency: 50/60 Hertz

Input frequency variation ±5% ±10% short-term (5 seconds)

Diode rectifier: >0.95

Active rectifier: Standard 1.0, optional control

Auxiliary voltage control: 220 VDC or 120-240 VAC 50/60 Hz, single-phase

Auxiliary power supply: 380-690 VAC 50/60 Hz, three-phase

Output power: 5,000-36,000 kilowatts

The output voltage is 2.3 to 3.3 kilovolts

Output frequency: 0-100 Hz (Higher frequencies can be provided upon request)

Motor types: induction, synchronous and permanent magnet

The converter efficiency is over 99%. The mechanical housing

Standard: IP32. Optional: IP42, IP54

Top/bottom of the cable entry

External cooling water temperature: +5 - +32 °C (if lower or higher, the cooling capacity will be reduced)
