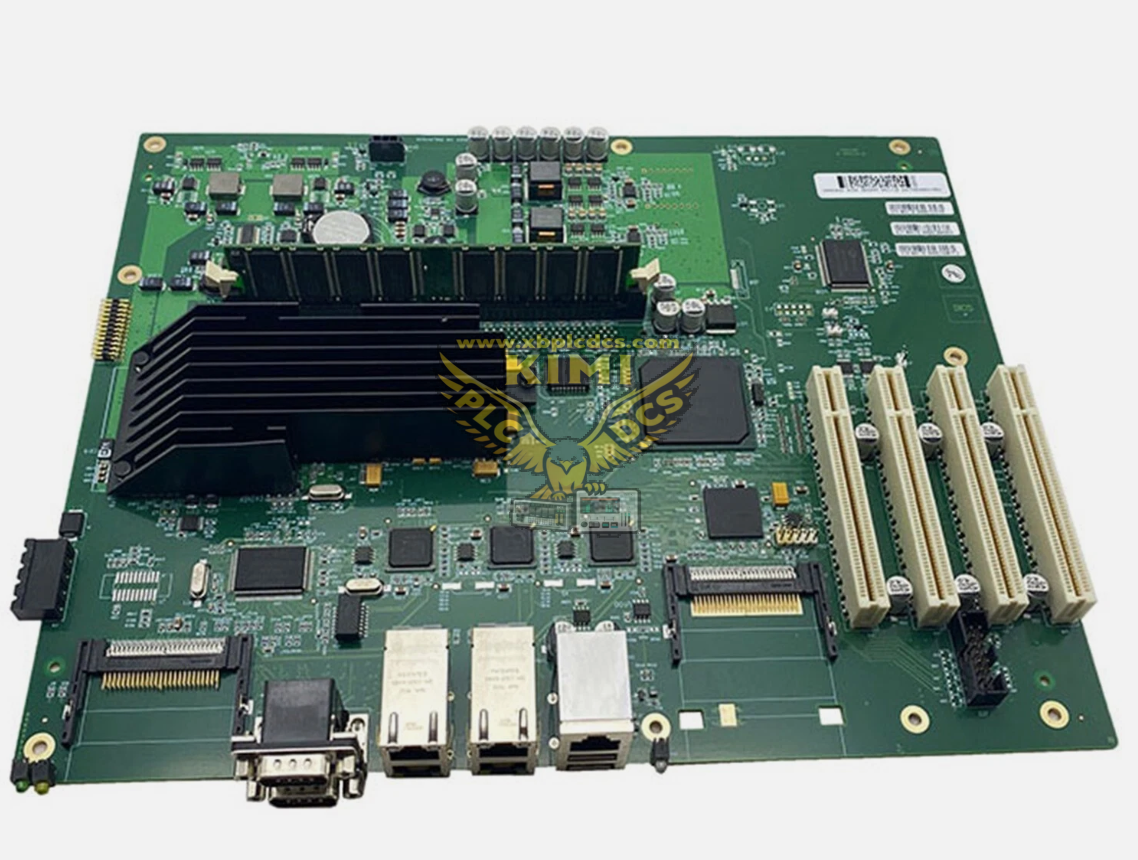

ABB DSQC639 3HAC025097-001/16 Main Computer Unit (Robot Controller MCPU)

1. Product Description

DSQC639 (Part No. 3HAC025097-001/16) is the main computer unit (MCPU) for ABB IRC5 robot controller cabinets, serving as the core processing board for all 6-axis industrial robot motion control, logic execution and system communication. The suffix /16 stands for hardware revision 16.

• Hardware Compatibility: Designed for IRC5 single cabinet, dual cabinet and compact IRC5 controller platforms; compatible with ABB RobotWare 5.x series operating software.
• Core Hardware Configuration: Onboard industrial CPU, integrated flash memory for robot system software, built-in EtherCAT, DeviceNet and serial communication interfaces, robot axis motion calculation circuit.
• Structural Design: Standard rack plug-in card structure, hot-swap support under controller power-off, metal shielding shell to resist workshop electromagnetic interference, golden finger backplane connection.
• Electrical & Environmental Specs: 24VDC internal cabinet power supply; operating temperature range 0°C ~ +55°C; storage temperature -20°C ~ +70°C; meets CE industrial EMC safety standards.
• Onboard Interfaces: Service port for teach pendant connection, LAN port for PC remote programming, USB port for program backup & restore, fieldbus connectors for peripheral I/O modules.

• Version Mark: Suffix /16 represents Revision 16 hardware iteration, optimized for high payload robot models and high-speed continuous motion production lines.




2. Core Product Functions

• Robot Motion Path Calculation: Real-time interpolation, trajectory planning and position closed-loop control for all robot axes, ensuring smooth, precise robot movement during welding, handling and assembly tasks.
• Robot Program Execution & Logic Control: Interpret and run RAPID robot programs, execute conditional logic, timer control and production cycle sequencing automatically.
• Multi-device Communication Management: Data exchange with teach pendant, drive units, digital I/O modules, vision systems and upper factory PLC via multiple built-in bus protocols.
• System Data Storage & Backup: Store robot calibration parameters, tool coordinate data, user programs and fault log files on onboard flash memory; support USB quick backup.
• Full System Self-Diagnosis & Fault Reporting: Continuously detect hardware faults of drives, I/O boards and internal circuits; output alarm codes to teach pendant for maintenance troubleshooting.
• Safety Logic Coordination: Process safety signals from emergency stop, door interlock and soft limit switches, trigger robot stop actions to protect operators and equipment.

3. Typical Application Scenarios

• ABB IRC5 controller matched 6-axis industrial robots for automotive welding, painting and assembly workshops.
• Factory automation handling robots, palletizing robots and CNC machine loading/unloading robot systems.
• Electronic manufacturing precision assembly robots with visual positioning and tracking functions.
• Food, logistics and metal processing production lines using ABB IRC5 standard robot control cabinets.
• Maintenance spare replacement for failed main computer units on existing IRC5 robot stations to minimize production downtime.
