Brief Product Description

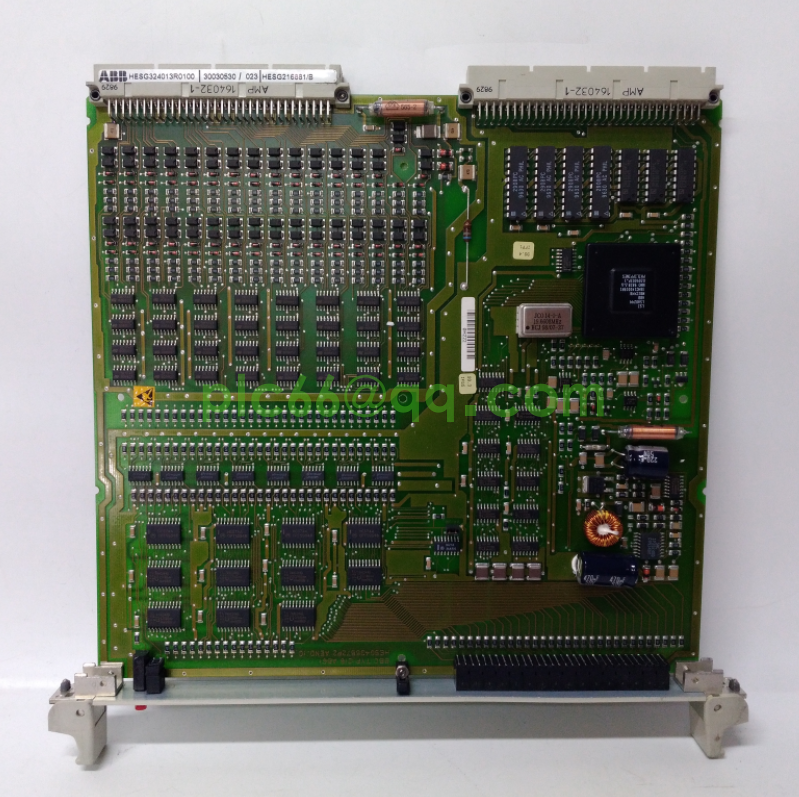

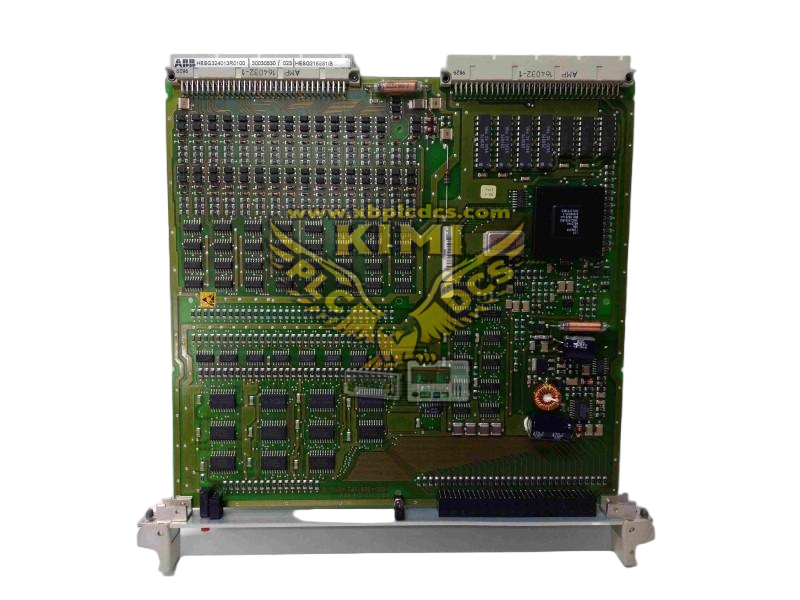

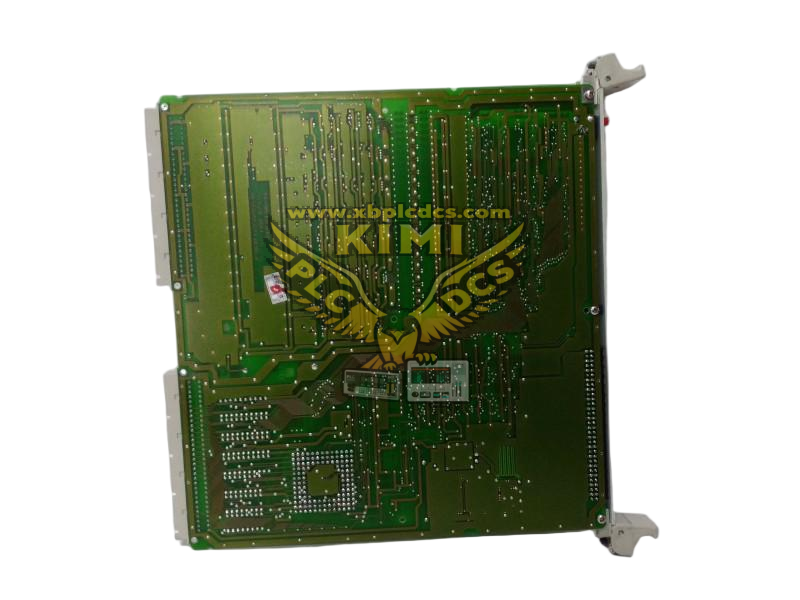

216AB61, part number HESG324013R0100, is a rack‑mounted high‑density digital output module developed for ABB Procontrol and REG216 protection control systems. It converts internal logic commands into potential‑free relay outputs to drive trip circuits, alarm annunciators and field actuators in power substations and industrial plants. Designed for protection‑critical applications, this VME‑format board provides reliable deterministic switching, built‑in self‑diagnostics and strong anti‑interference performance for continuous 24/7 cabinet‑based operation. It serves as an essential spare replacement unit for maintenance and retrofit of legacy ABB protection and automation installations.

Core Product Functions

• Multiple‑channel potential‑free relay contact outputs for protection tripping, interlock and alarm signal triggering
• Transmit system internal protection logic signals to external field devices such as relays and indicator lamps
• Fast response switching for critical trip commands in power protection systems
• Continuous on‑board self‑diagnosis to detect relay circuit faults, hardware failures and abnormal working status
• Front‑panel LED indicators for module operating status, channel activity and fault alarm visualization
• High‑speed data interaction with system backplane bus for receiving logic commands from main controller
• Built‑in surge suppression circuit to resist voltage spikes and electromagnetic interference in substation environments
• Robust printed‑circuit‑board design adapting to cabinet vibration and wide‑temperature working conditions

• Supports system event logging for output actions and fault records for post‑event analysis and troubleshooting

Application Scenarios

• ABB REG216 and Procontrol power plant substation protection & control system racks
• Thermal power plant generator and transformer protection, trip and alarm control cabinets
• Petrochemical and chemical plant power distribution protection and safety interlock systems
• Metallurgical plant heavy‑equipment power protection and emergency trip control units
• Utility substation automation panels requiring reliable relay‑based signal output

• Spare replacement digital output module for maintenance, expansion and upgrade of existing legacy ABB systems

FAQ (Frequently Asked Questions)

• Q: Module receives command but corresponding relay channel fails to act?
  A: Check relay contact burnout, output‑loop wiring fault, back‑plane connector contact degradation, or system logic configuration mismatch.
• Q: Module fault LED keeps flashing during normal running?
  A: Inspect rack power‑supply quality, board hardware aging, or internal circuit component damage caused by surge voltage.
• Q: Can 216AB61 HESG324013R0100 be hot‑swapped when rack remains energized?
  A: Hot‑swap is not permitted. Power off the whole rack and follow substation safety procedures before module replacement to avoid false tripping and hardware damage.
• Q: Can it be used on other ABB series or third‑party control platforms?
  A: It is dedicated for Procontrol / REG216 systems; back‑plane bus protocol and mechanical structure cannot adapt to other systems.
• Q: Is ABB 216AB61 HESG324013R0100 available for brand‑new project construction?
  A: This legacy output module has reached end‑of‑life. Only surplus and fully‑tested refurbished units are available for existing‑site maintenance.
