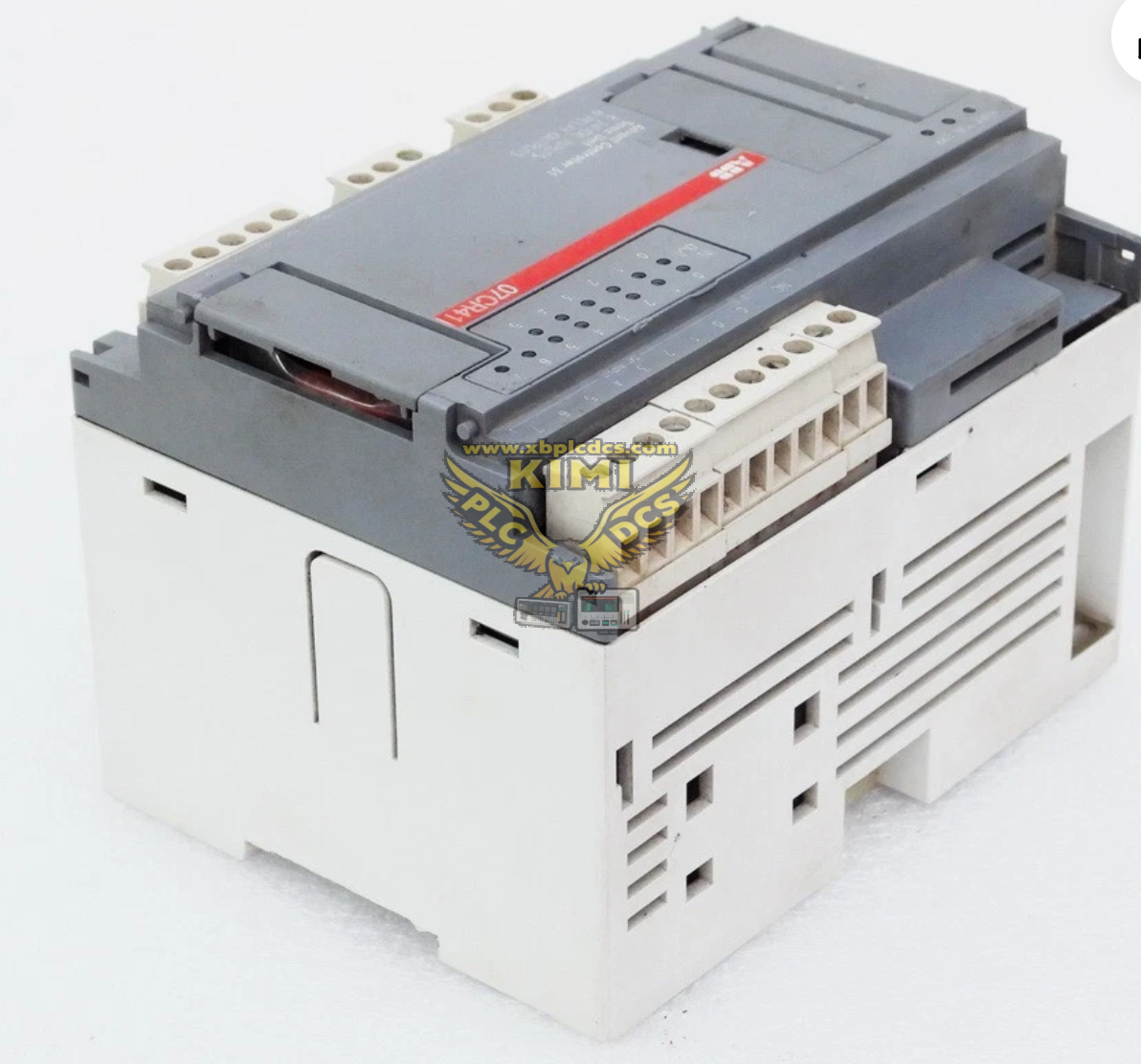

ABB 07CR41 AC31 Compact PLC Controller Unit

Product Description

07CR41 is ABB Advant Controller AC31 series compact PLC basic unit, DIN‑rail mounted 24VDC programmable logic controller. It integrates CPU processor, built‑in local digital I/O, program memory, CS31 fieldbus interface and serial programming port. This compact controller executes user control logic, collects field sensor status and drives actuators; it can expand remote I/O stations over CS31 bus for small‑to‑medium industrial automation systems. Widely deployed on machinery, packaging equipment, water treatment and auxiliary subsystems inside semiconductor manufacturing lines.

Key Functions

• On‑board local I/O: 8‑channel digital input, 6‑channel relay digital output; rated supply 24 VDC
• Program memory 34 kB; supports Ladder Diagram, Structured Text programming; online monitoring and modification via programming cable
• CS31 RS‑485 field‑bus master interface for connection of remote digital / analog I/O expansion modules
• Serial communication port for programming, Modbus‑RTU slave for HMI or host‑system data exchange
• Built‑in real‑time diagnostic: power status, program‑run/stop, bus error, I/O channel fault indicator LEDs on front panel
• Internal backup battery for retaining program and retentive data upon main power loss
• Industrial EMI‑resistant hardware, IP20 protection, DIN‑rail TS35 mounting, operating temperature ‑25 °C ~ +60 °C

Application Scenarios

• General‑purpose factory machine control, auxiliary equipment sequencing, pump‑valve interlock control
• Semiconductor fab auxiliary subsystems: gas panel auxiliary logic, waste‑water, exhaust‑handling equipment local control
• Packaging, material‑handling, water‑treatment and building‑automation control cabinets
• Distributed small‑scale automation with CS31 remote‑I/O expansion topology

Common Issues & FAQ

• CPU stops / program lost after power cycle: Check internal backup battery voltage; replace aged battery; verify program download completed and stored to flash memory.
• CS31 bus communication error, remote‑I/O offline: Inspect RS‑485 bus termination resistor, cable shielding and grounding; check bus node address conflict; verify bus segment length compliance.
• Relay output cannot drive load or intermittent actuation: Measure relay‑contact condition; check inductive‑load freewheeling protection; confirm load current within relay contact rating.
• Cannot connect via programming tool: Verify programming cable type (07SK50 / 07SK51), port setting, controller run‑stop switch position.
• Refurbished / replacement‑unit note: After replacement, download matching application program, verify I/O channel loop test, CS31 bus scan, full‑sequence functional test before commissioning. Confirm battery condition after long‑term storage.
