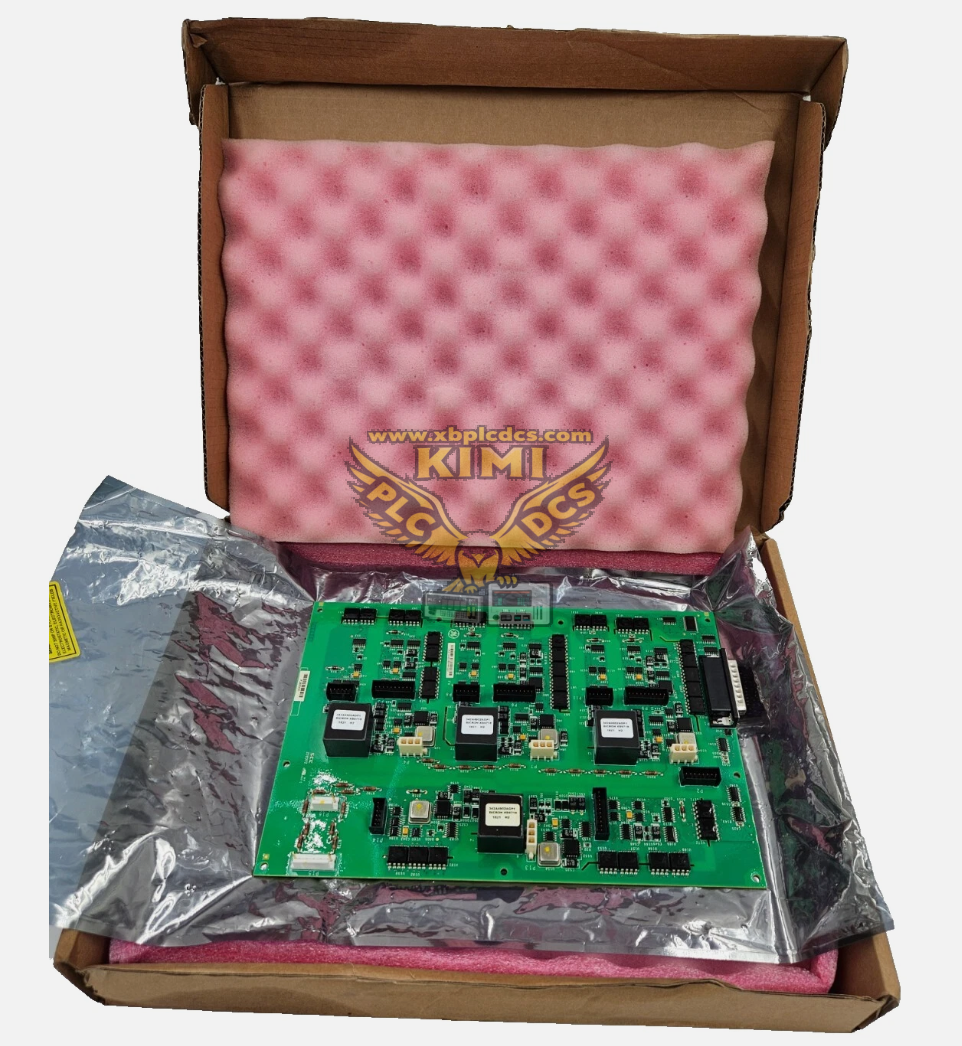

GE IS210AEDBH4AGD AEDB Bridge Interface Board for Mark VI / Mark VIe Speedtronic Turbine Control System

Product Description

The IS210AEDBH4AGD is a conformal‑coated AE DB bridge interface printed circuit board developed by GE for Mark VI and Mark VIe Speedtronic gas, steam turbine and generator control racks. It adopts reinforced galvanic isolation and industrial signal conditioning circuits, acting as a data communication bridge between the main turbine controller and distributed I/O modules. The board is designed for continuous operation in power plant cabinets with heavy vibration, dust, humidity and strong electromagnetic interference. It is widely supplied as spare replacement hardware for legacy GE turbine and excitation control systems.

Product Functions

• Realize high‑speed bidirectional data bridging between main CPU and local I/O boards over dedicated backplane bus
• Process discrete digital input and output signals for turbine interlock, status feedback and relay trip control
• Signal isolation, noise filtering and transient surge suppression to reduce field electrical interference
• Detect communication faults, channel failures and onboard power anomalies, and send diagnostic alarms to the turbine controller
• Front‑panel LED indicators display power status, running mode and fault codes for on‑site maintenance inspection
• Complete onboard hardware self‑diagnosis for bus transceivers, power circuits and signal processing channels
• Support TMR triple‑modular redundant configuration for high‑availability safety protection loops of critical turbine units

Application Scenarios

• Gas turbine and steam turbine control cabinets of thermal power combined‑cycle units with GE Mark VI / Mark VIe systems
• EX2100 generator excitation control racks for large synchronous generator monitoring and protection
• Off‑shore oil & gas platform turbine and large compressor safety interlock control systems
• Natural gas pipeline compressor skids and petrochemical heavy rotating machinery control cabinets
• Wind farm turbine distributed control and condition monitoring racks
• Spare replacement and technical retrofit of aging GE Speedtronic turbine control hardware

Common Problems

• Intermittent bus communication dropout：oxidized backplane connectors, loose plug‑in terminals, PCB dust contamination or bus transceiver chip aging
• Individual digital channel abnormal status：field wiring corrosion, burned isolation circuit, ground‑loop interference or sensor contact fault
• Persistent hardware diagnostic alarm：electrolytic capacitor aging, poor cabinet ventilation and overheating, or hidden component damage
• Board cannot be identified by control rack：damaged backplane pins, incompatible firmware version or configuration data corruption
• False interlock or trip signal triggering：electrical noise interference, signal distortion or unstable power supply on the board
• LED indicators not lighting after power‑on：onboard auxiliary power circuit failure, blown fuse or abnormal input power rail
• Unstable data refresh and delayed signal response：aging signal processing chips or degraded filtering circuits after long‑term operation
