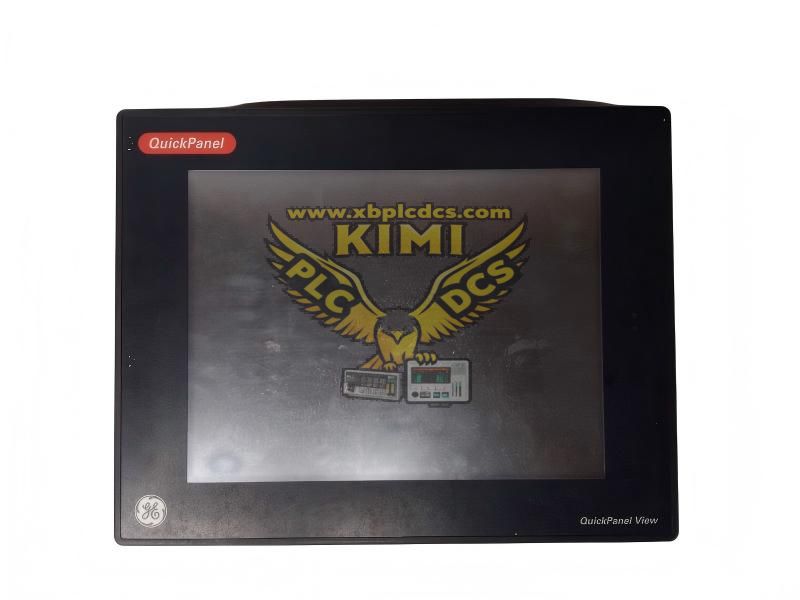

GE Fanuc IC754VSF12CTD 12-inch Color Touchscreen HMI QuickPanel Operator Interface
Product Description
The GE Fanuc IC754VSF12CTD is a rugged, high-performance 12-inch color touchscreen Human-Machine Interface (HMI) belonging to the QuickPanel Control and View product line—engineered for industrial automation monitoring, control, and data visualization. Exclusively designed for harsh factory-floor environments, this panel-mount terminal features an 800×600 pixel TFT LCD display (65,536 colors), resistive touchscreen, industrial-grade XScale processor, Windows-based embedded OS, and multi-protocol communication ports (Ethernet, RS232, RS485, USB, CF card slot) to seamlessly integrate with PLCs, DCS, drives, and sensors. It supports real-time alarm management, data logging, recipe handling, remote project download/upload, and hot-swappable storage expansion—ensuring reliable operation in manufacturing, automotive, energy, and process industries.
Key Functions
The IC754VSF12CTD HMI delivers robust visualization, control, and data exchange capabilities for industrial automation with these core features: 12-inch color touchscreen (800×600, 65K colors) for intuitive process monitoring and operator input; industrial XScale processor with 64 MB flash memory (expandable via CF/SD slot) for running complex HMI applications and storing historical data; multi-protocol communication (Genius Bus, Modbus RTU/TCP, Ethernet IP optional) for seamless integration with GE and third-party PLCs/DCS; real-time alarm management (prioritization, logging, notification), recipe handling, and data trending for process optimization; remote project management (download/upload, firmware updates) via Ethernet; and front-panel IP65 protection (when properly sealed) for resistance to dust, water, and vibration in harsh industrial settings.
Application Scenarios
The IC754VSF12CTD is deployed in mission-critical industrial automation scenarios requiring reliable visualization and operator control. In automotive assembly lines, it monitors robot cells, conveyor systems, and quality inspection stations—enabling recipe changes and fault diagnostics. In power generation plants, it displays turbine/generator parameters, manages alarm conditions, and facilitates remote monitoring via Ethernet. In chemical and pharmaceutical facilities, it controls batch processes, tracks material flow, and ensures compliance with data logging requirements. It is also ideal for packaging, food & beverage, and water/wastewater treatment applications—where intuitive HMI operation and seamless PLC/DCS integration are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 12-inch Color Touchscreen HMI Operator Interface (QuickPanel Control and View) |
| Manufacturer | GE Fanuc (now part of Emerson Automation Solutions) |
| Model Number | IC754VSF12CTD |
| Display | 12-inch TFT LCD Color Touchscreen; 800×600 Resolution; 16-bit Color (65,536 Colors); Resistive Touch Technology |
| Processor & OS | Intel XScale PXA255 (400 MHz); Microsoft Windows Embedded CE; 64 MB Flash Memory (Expandable via CF/SD Card Slot); Memory Expansion Slot for Additional Storage |
| Communication Interfaces | 10/100 Ethernet (10Base-T/100Base-TX); RS232 (Point-to-Point); RS485 (Daisy-Chain); 2× USB 2.0 Host; 1× USB Device; CF Card Slot (Type I/II); Expansion Bus for I/O Modules |
| Power Requirements | 24 VDC Redundant Input; 48 W Typical Power Consumption |
| Operating Environment | Temperature: 0°C to 50°C (32°F to 122°F); Humidity: 5–95% RH (Non-Condensing); Vibration/Shock Compliant with IEC 60068-2; Front Panel IP65 Protection (When Properly Sealed) |
| Mounting | Panel-Mount; Requires NEMA-Rated Flat Surface; Minimum 3-inch Ventilation Clearance |
| Certifications | CE, UL, CSA; Compliant with IEC 61131-2, IEC 61010-1 Industrial Standards |
