GE IS210AEAAH1B Analog & Event Acquisition Board for Mark VIe Control System

Product Description

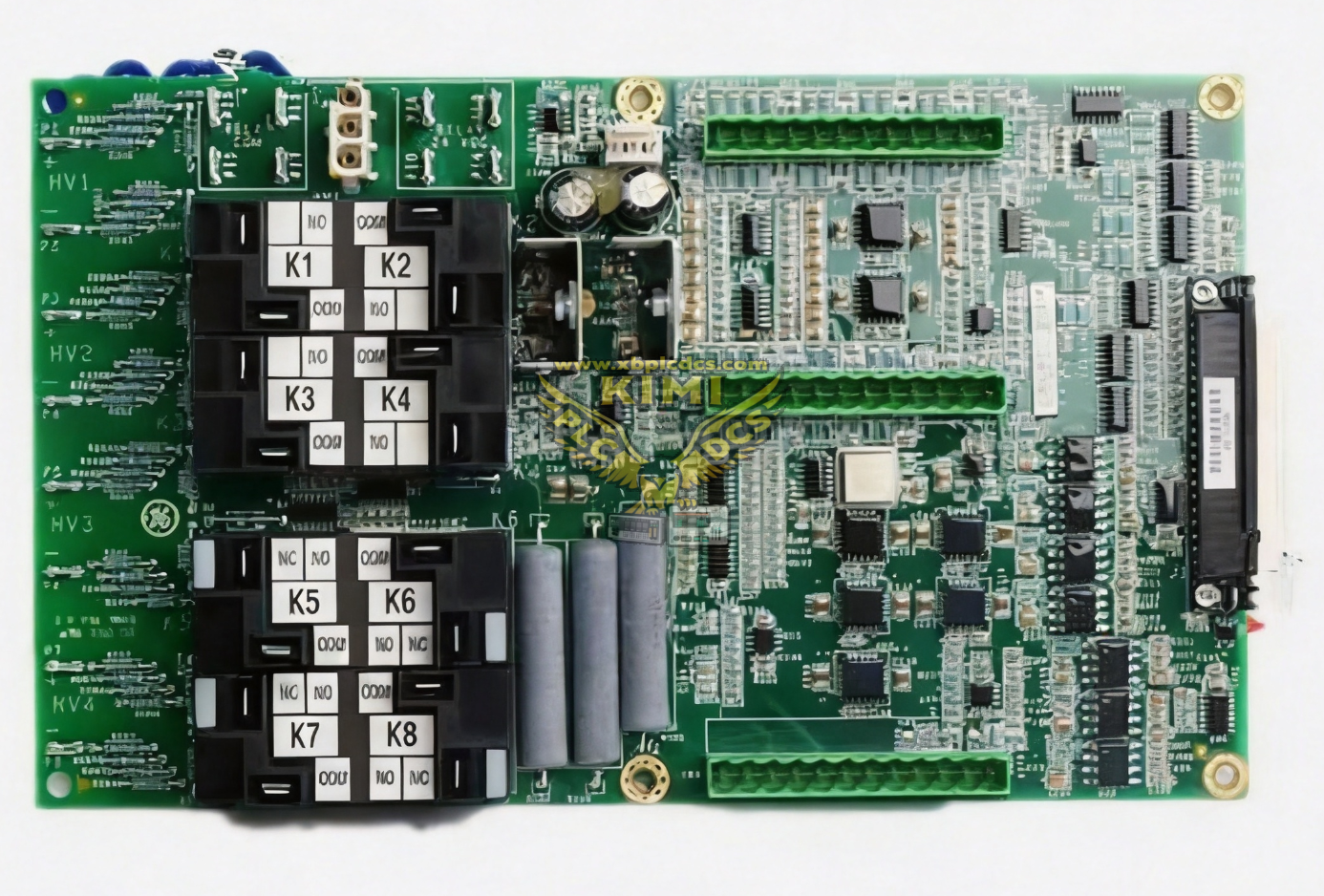

The IS210AEAAH1B is a conformal‑coated high‑speed analog and event acquisition circuit board developed by GE for the Mark VIe distributed turbine and wind turbine control system. It is a non‑VME panel‑mount I/O board equipped with multi‑channel analog front‑end circuits, digital event capture logic and a dedicated Mark VIe fieldbus interface. The protective coating prevents damage from dust, humidity and chemical contaminants. It serves as a local signal acquisition node, converting field analog and discrete events into time‑stamped digital data and transmitting information to the main Mark VIe controller. It is widely used as spare replacement hardware for existing GE power generation and wind farm control cabinets.

Product Functions

• High‑precision sampling of analog signals including 4‑20mA, voltage, vibration and temperature sensor inputs
• Capture digital status changes with high‑resolution time stamping for sequence‑of‑events fault recording
• On‑board signal conditioning, noise filtering and isolation to suppress electromagnetic interference in power plant environments
• Detect sensor open‑circuit, short‑circuit and out‑of‑range failures and send diagnostic alarms to the main controller
• Communicate real‑time measurement values and event logs to Mark VIe control nodes over the proprietary fieldbus
• Complete built‑in hardware self‑diagnosis for analog channels, bus communication and onboard power circuits
• Front‑panel LED indicators display power, operational status and fault warnings for local maintenance inspection

Application Scenarios

• GE Mark VIe wind turbine distributed control cabinets for wind farm monitoring and protection
• Gas turbine and steam turbine control systems in combined‑cycle thermal power plants
• Generator excitation monitoring, bearing vibration and winding temperature measurement racks
• Off‑shore oil & gas platform turbine and large compressor condition monitoring systems
• Petrochemical large rotating machinery safety interlock and process parameter acquisition
• Spare replacement and technical retrofit of aging GE Mark VIe distributed I/O control hardware

Common Problems

• Unstable or drifting analog readings：aging A/D conversion chips, degraded reference circuits or poor field cable shielding
• Individual channel open/short‑circuit fault alarms：damaged sensors, corroded terminals or burned‑out input isolation circuits
• Intermittent fieldbus communication dropout：loose wiring connectors, PCB contamination or bus transceiver component aging
• Loss of high‑precision event time stamps：onboard timing circuit drift or firmware configuration corruption
• Continuous hardware diagnostic alarm：electrolytic capacitor aging, dust buildup and overheating caused by poor cabinet ventilation
• Board cannot be recognized by Mark VIe system：incorrect node address setting, incompatible firmware or hidden circuit damage
• False fault triggering：ground‑loop interference, electrical noise or signal distortion without actual equipment failure
