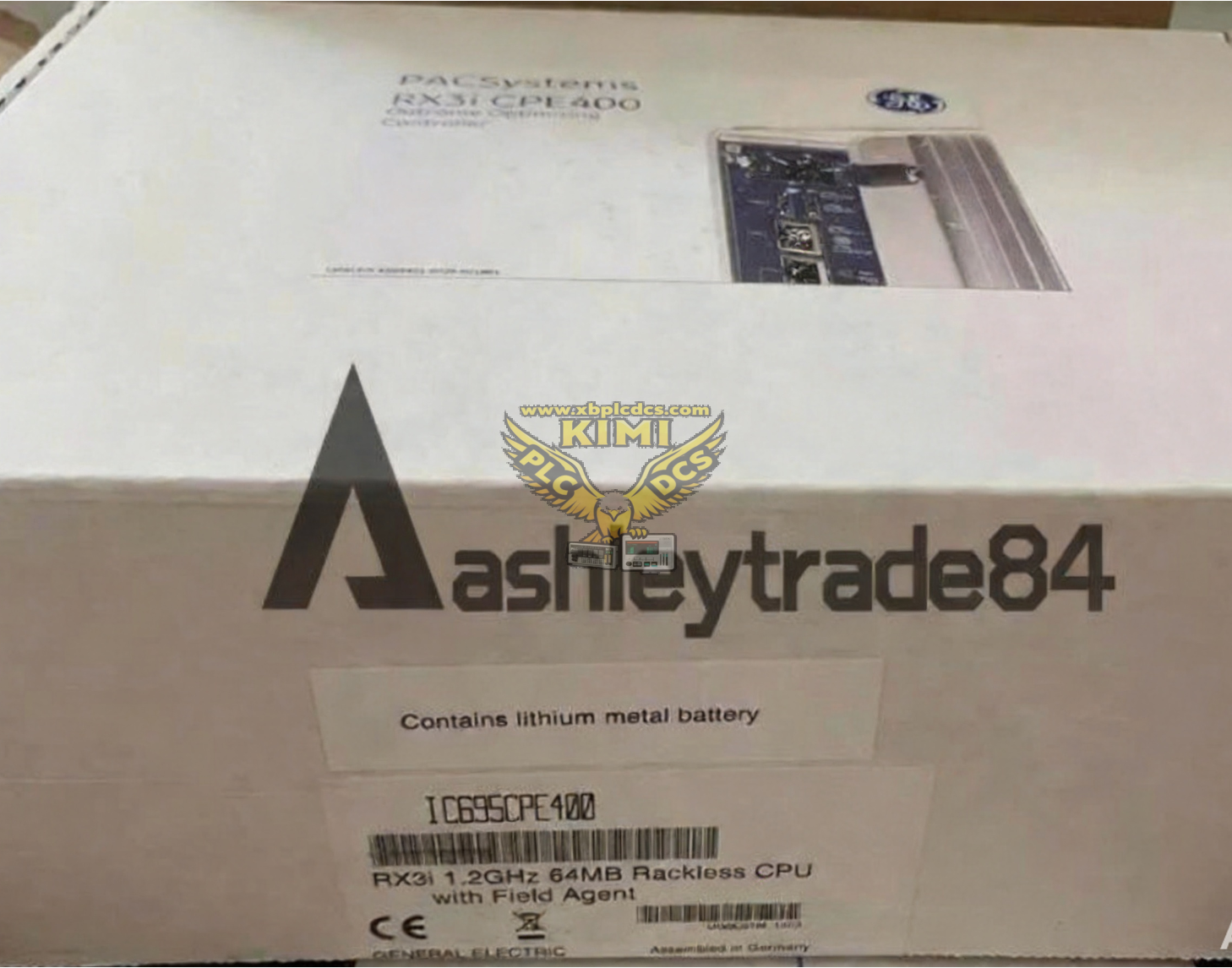

Emerson (GE Fanuc) IC695CPE400 PACSystems RX3i Rackless Outcome Optimizing Controller

Product Description

The IC695CPE400 is a standalone rack‑less high‑performance PACSystems RX3i industrial controller developed by Emerson, previously GE Fanuc. It adopts a 1.2 GHz AMD G‑series quad‑core processor with 64MB program/data RAM and 64MB non‑volatile flash memory. Equipped with multi‑port Gigabit Ethernet, OLED front‑panel display, serial and USB interfaces, it runs real‑time deterministic control and PACEdge Field Agent edge analytics simultaneously via hypervisor technology. The rugged aluminum housing and industrial‑grade components are designed for continuous operation in factory environments with vibration, dust and electromagnetic interference. It supports TPM secure boot and cyber security protection, widely used as a modern edge‑integrated PLC controller for new projects and spare replacement.

Product Functions

• Execute real‑time deterministic control programs, supporting Ladder Diagram, Structured Text, Function Block Diagram and C programming languages
• Realize edge computing and data analysis through built‑in PACEdge Field Agent platform, connecting local assets to cloud or on‑site analytics applications
• Four independent Gigabit Ethernet ports supporting PROFINET, Modbus TCP, SRTP and MRP ring network protocols
• Communicate with local or distributed RX3i I/O racks, HMI, SCADA systems and intelligent field devices
• Store user programs, configuration parameters, alarm logs and historical process data in onboard non‑volatile flash memory
• TPM and secure boot functions prevent unauthorized firmware modification and malicious network attacks
• OLED screen and LED status indicators provide local running status, network link and fault diagnosis information
• Comprehensive self‑diagnosis for processor, memory, power supply, Ethernet channels and internal hardware failures

Application Scenarios

• Smart factory production lines, packaging machinery, material handling and conveyor automation systems
• Oil & gas, chemical and petrochemical plant skid control, pipeline monitoring and process automation
• Power plant auxiliary control, water treatment, pumping station and HVAC intelligent control systems
• Metallurgy, pulp & paper and food & beverage continuous manufacturing process control
• Edge data collection, remote equipment monitoring and predictive maintenance for industrial internet projects
• System upgrade and spare controller replacement for existing GE PACSystems RX3i automation platforms

Common Problems

• Controller fails to boot up：DC power supply out of range, power connector loosening, flash memory corruption or internal hardware damage
• Ethernet communication intermittent disconnection：cable aging, poor RJ45 contact, incorrect IP/network settings or switch port failure
• Field Agent edge service crash：insufficient memory resource allocation, incompatible PACEdge firmware or corrupted application package
• Loss of program and configuration data：abnormal power outage, flash memory wear or failed firmware upgrade
• High CPU load and slow control response：over‑complicated control logic, excessive edge analytics tasks or incorrect scan cycle configuration
• OLED display blank or status LED abnormality：front‑panel interface circuit fault or overheating caused by blocked heat sink fins
• Secure boot or TPM alarm：invalid firmware signature, security configuration error or internal security chip failure
