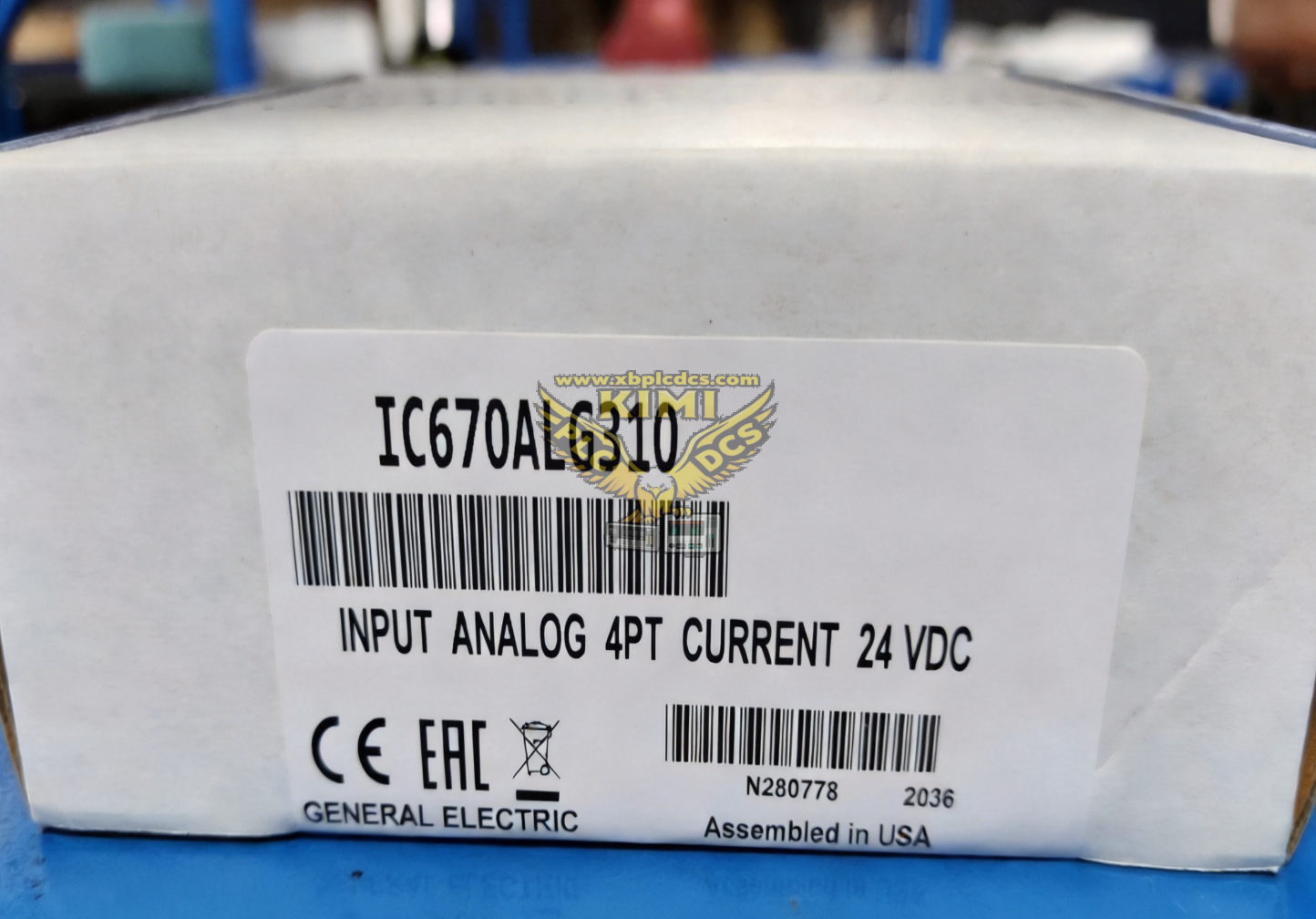

GE Fanuc IC670ALG310 Analog Input Module for Field Control I/O System

Product Description

The IC670ALG310 is a 4‑channel analog input module of GE Field Control I/O series, designed for GE Series 90‑30 PLC distributed I/O racks. It accepts standard 4‑20mA current or 0‑10V voltage analog signals from field transmitters and sensors. Each channel has isolation and surge protection circuits, with high‑resolution A/D conversion and built‑in channel fault detection. The compact rack‑mounted structure and industrial‑grade components allow long‑term stable operation in dusty and vibration‑prone factory control cabinets. It is widely used as spare parts for old GE Field Control automation systems.

Product Functions

• 4 independent analog input channels, configurable for 4‑20mA current or 0‑10V voltage signal types
• Convert continuous analog field measurement signals into digital values and send data to the PLC CPU
• Detect open‑circuit, over‑range and abnormal input signals and upload channel fault alarms
• Optical isolation between field signal loop and internal logic circuit to reduce electromagnetic interference
• Front‑panel LED indicators for module power, running status and channel failure warning
• Transmit process measurement data to the main controller via the Field Control backplane bus
• Support programmable signal scaling to convert raw digital readings into engineering units

Application Scenarios

• Chemical, petrochemical and water treatment plant flow, pressure and liquid‑level monitoring
• Power plant auxiliary systems for temperature and process parameter collection
• Metallurgy, pulp & paper and food manufacturing continuous process monitoring
• Oil & gas skid‑mounted equipment and pipeline transmitter signal acquisition
• Factory HVAC, pumping station and environmental automation monitoring systems
• Replacement and technical renovation of aging GE Field Control I/O racks

Common Problems

• Unstable or fluctuating measurement readings：poor shielding wiring, ground loop interference or degraded sensor cable
• Individual channel no signal input：field cable breakage, burned isolation circuit or terminal corrosion
• Module not recognized by PLC：backplane connector oxidation, slot damage or incompatible firmware version
• Persistent channel open‑circuit alarm：transmitter power failure, wire disconnection or internal sampling circuit fault
• Measurement drift and inaccurate values：aging A/D converter chip or PCB contamination caused by dust and humidity
• All channels stop data updating：onboard power circuit failure or backplane communication bus abnormality
• Intermittent signal loss：vibration causing poor terminal contact and loose backplane pins
