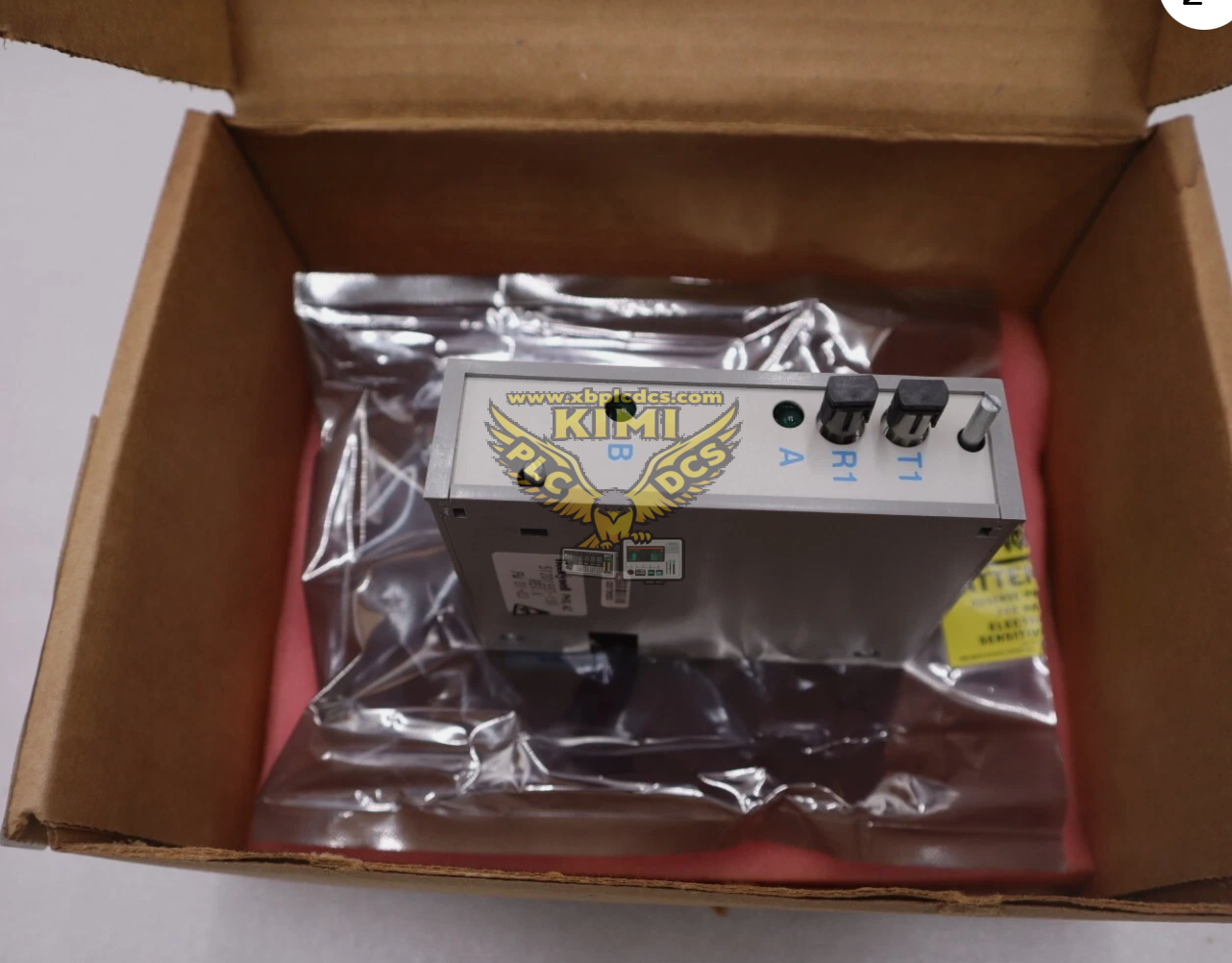

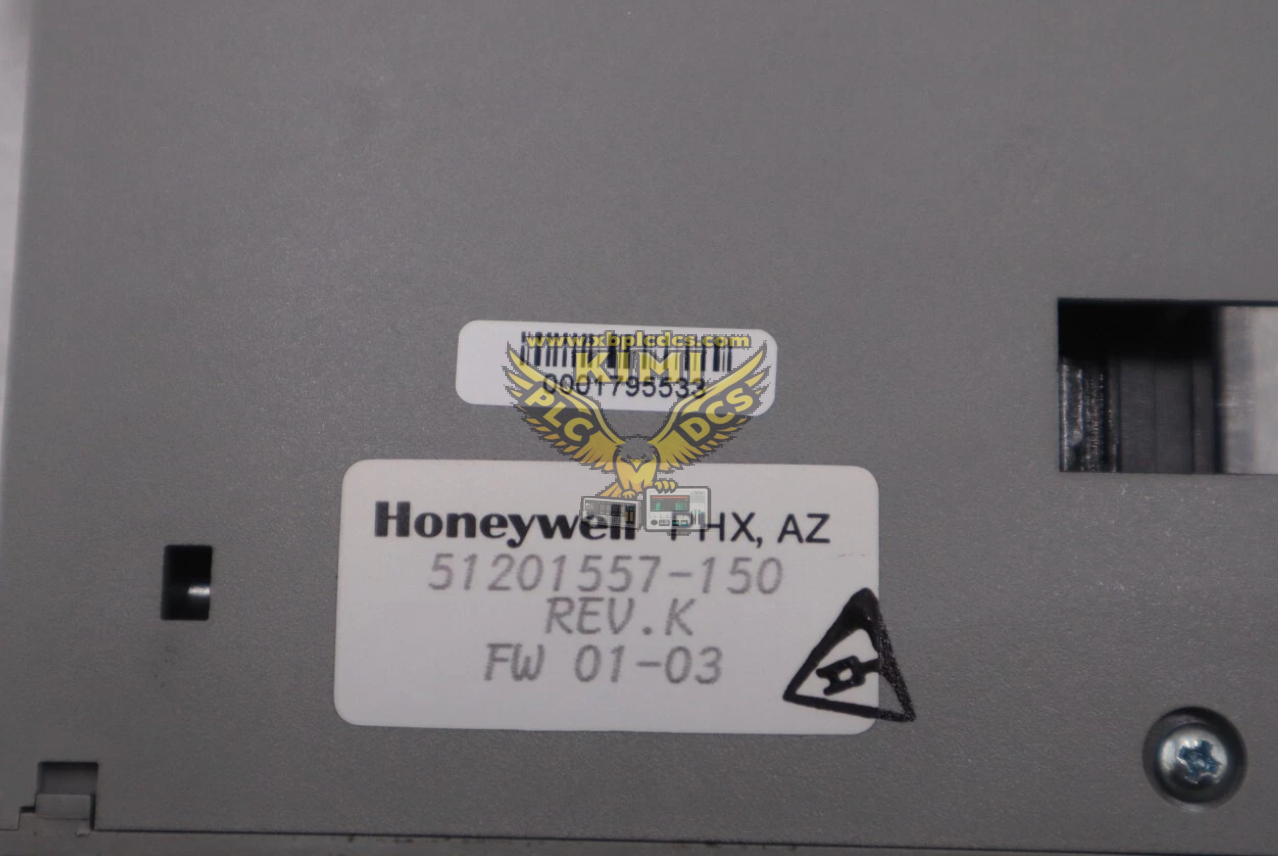

Honeywell 51201557‑150 Standard I/O Link Extender Coupler

Product Description

51201557‑150 is a fiber‑optic I/O link extender coupler for Honeywell TDC3000 and Experion PKS DCS systems. It adopts ST‑type fiber connectors, operates on 24V DC power, and supports a maximum transmission distance of 1.3 km. The module converts electrical I/O‑link signals into optical signals for long‑distance communication between the controller and remote IOP racks. It is installed in the I/O card file, supports full‑duplex fiber communication, and can be mixed with long‑distance extender couplers in the same subsystem as long as both ends of each link use the same type. It provides electrical isolation and strong anti‑interference capability for distributed field I/O expansion.

Product Functions

• Convert electrical I/O‑link bus signals to optical signals and realize bidirectional fiber data transmission
• Extend communication distance between the main controller and remote I/O processor racks up to 1.3 kilometers
• Galvanic isolation between local and remote I/O cabinets to suppress ground potential drift and electromagnetic noise
• Work in pairs at both ends of fiber link to build redundant Link A and Link B communication channels
• Real‑time hardware self‑diagnosis for fiber breakage, optical power loss and module operating faults

• Expand distributed remote I/O layout for Honeywell legacy TDC3000 and modern Experion PKS control platforms




Application Scenarios

• Petrochemical refinery and chemical plant TDC3000 / Experion PKS distributed control cabinets
• Thermal power plants with geographically separated control rooms and remote field I/O racks
• Offshore platforms, LNG and natural gas processing plants with heavy industrial electromagnetic interference
• Pulp, paper and pharmaceutical factories requiring long‑distance scattered I/O signal collection
• Modernization and spare‑part replacement of old Honeywell DCS remote I/O fiber communication networks

Common Problems

• Remote I/O rack offline, fiber link failure: Dirty ST optical port, broken fiber cable, loose connector or excessive optical attenuation.
• Intermittent communication dropout: Excessive fiber bending radius, contaminated optical interface or large ground potential difference.
• Fault alarm keeps lighting on: Mismatched coupler types at two ends, TX/RX fiber crossover error or aging optical transceiver chip.
• Slow data refresh and communication delay: Dust accumulation on optical window, overheating caused by poor cabinet ventilation or fiber attenuation drift.
• No optical transmission after replacement: Improper pairing configuration, incompatible I/O Link Extender card or unstable 24VDC power supply.
