Honeywell 51198947‑100 ACX631 HPM/PM/APM Rack Power Supply

Product Description

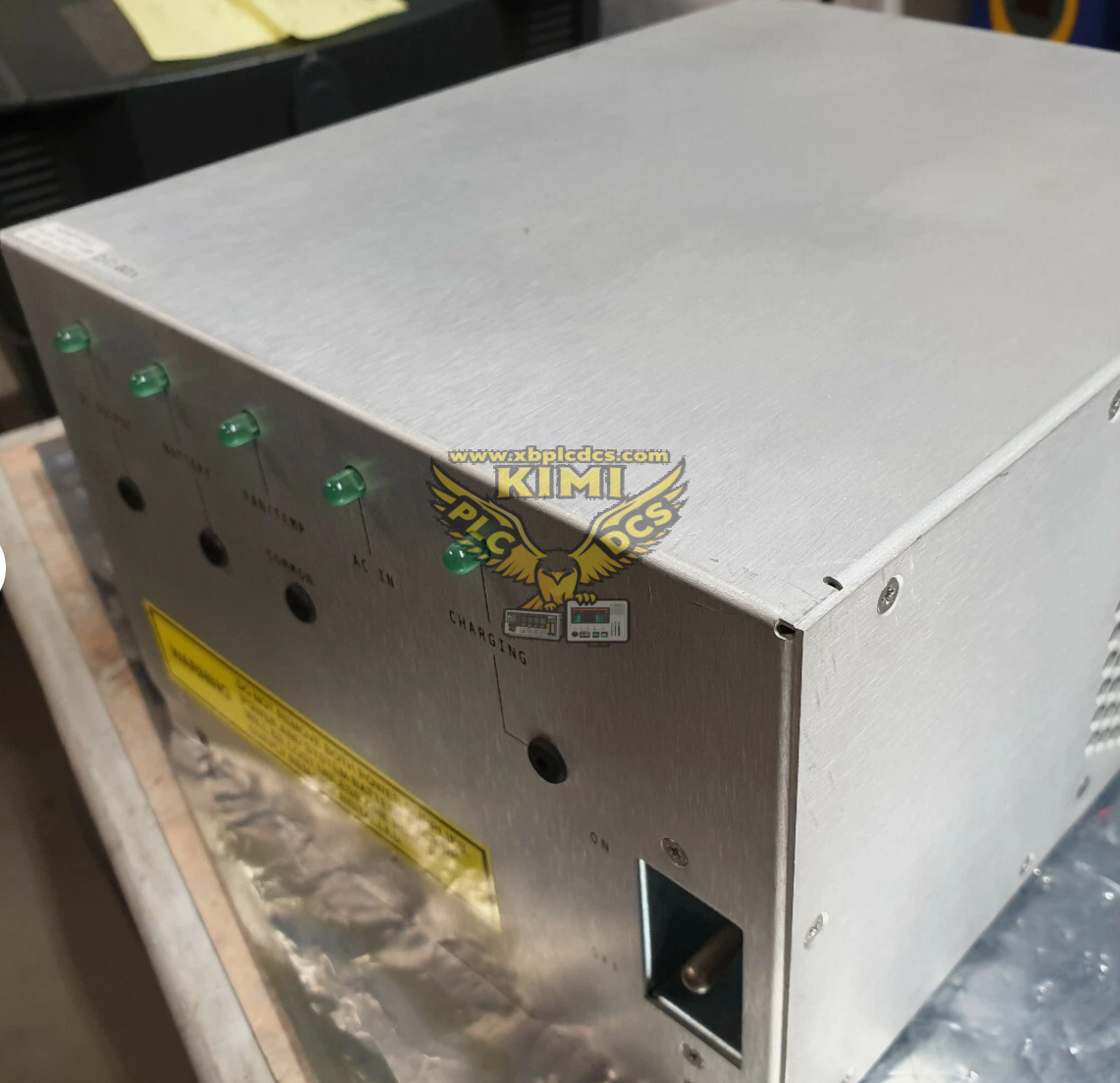

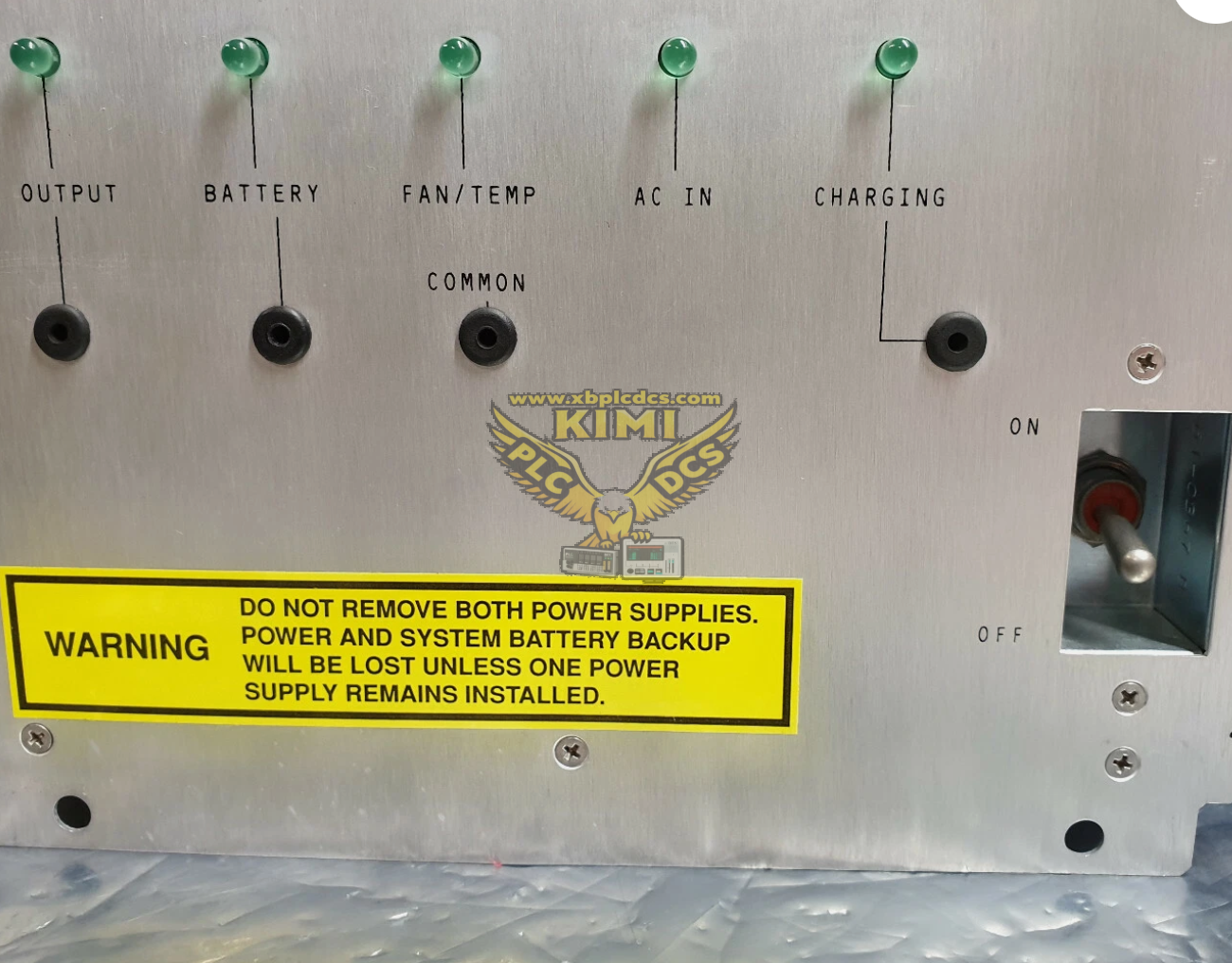

51198947‑100 (ACX631) is a rack‑mounted dedicated power supply for Honeywell Experion PKS UCN HPM, PM and APM controller cabinets. It accepts wide‑range 85‑264V AC mains input or 48V DC battery backup input and converts it into regulated 24V‑class DC power for controllers, communication boards and I/O modules. The front panel is fitted with LED status indicators for DC output, battery, fan temperature, AC input and charging status. Built‑in battery charging circuit, over‑voltage, over‑current and short‑circuit protection, it is designed for 24‑hour continuous operation in industrial DCS control cabinets.

Product Functions

• Convert wide‑range AC power or 48V backup battery power into stable regulated DC power for UCN controller rack
• Integrated battery charging function to maintain standby battery capacity for power‑fail ride‑through
• Real‑time monitoring of output voltage, fan status, internal temperature and AC input condition
• Front‑panel LED indicators display running state, charging progress and fault alarms for on‑site maintenance
• Multiple electronic protection including overvoltage, overcurrent, short circuit and overtemperature shutdown

• Support redundant parallel installation to improve power reliability for critical control racks




Application Scenarios

• Honeywell Experion PKS UCN HPM / PM / APM controller cabinets in petrochemical and refinery plants
• Thermal power station boiler and turbine DCS control system racks
• Offshore platforms, LNG and natural gas processing factory automation control rooms
• Pulp & paper, pharmaceutical and continuous chemical production control systems
• Retrofit and spare‑part replacement of legacy Honeywell UCN distributed control systems

Common Problems

• No DC output, power indicator off: Missing AC input, blown internal fuse, failed primary switching circuit or damaged power transformer.
• Overtemperature alarm triggered frequently: Cooling fan failure, dust clogging of ventilation holes or high ambient cabinet temperature.
• Unstable DC voltage output and controller intermittent reset: Aging electrolytic capacitors, loose rack backplane connector or overloaded power channel.
• Battery charging failure: Degraded battery cells, damaged charging circuit or incorrect battery wiring connection.
• Redundant power conflict and random fault alarms: Mismatched power supply firmware, uneven load sharing or ground potential difference interference.
