Honeywell TK-PRS021 C200 Control Processor Module--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description

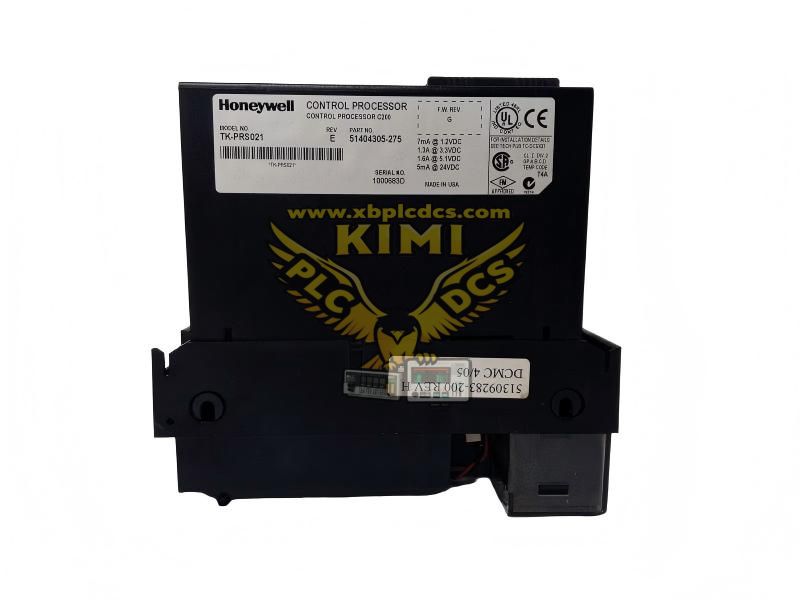

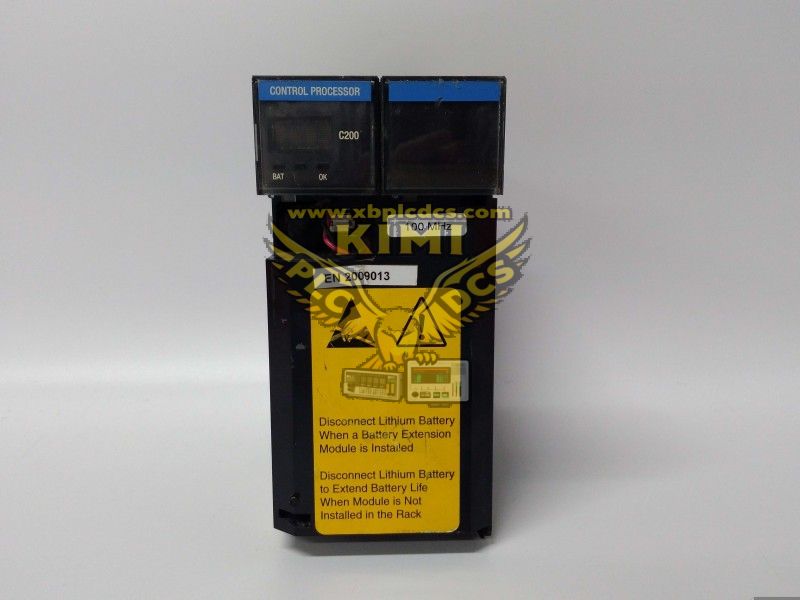

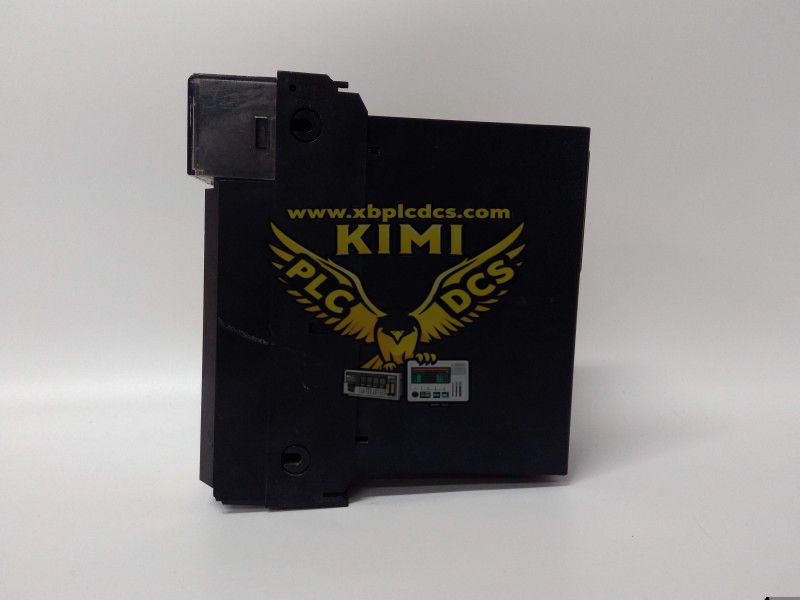

Honeywell TK-PRS021 C200 Control Processor Module
Core Processing Unit for Honeywell Experion PKS System, Enabling High-Speed Logic Execution & Seamless I/O Integration
1. Product Overview
The Honeywell TK-PRS021 is a high-performance control processor module specifically designed for the Honeywell Experion PKS C200 controller system, acting as the core computing unit for industrial process control. It features a 150 MHz high-speed processor, supporting efficient execution of complex control logic, real-time data processing, and seamless communication with I/O modules. Equipped with a built-in replaceable lithium battery for 144-hour memory backup, it ensures data retention during power outages. With Class I, Division 2 hazardous location certification and conformal coating options, it is suitable for critical industrial fields such as petrochemical, power generation, and chemical industry, providing reliable and stable control processing capabilities for the system.
2. Key Technical Specifications
• Product Type: Control Processor Module (C200 Series, Experion PKS)
• Brand: Honeywell (Model No.: TK-PRS021, Part No.: 51404305-375/51404305-475)
• Processor: 150 MHz 32-bit RISC
• Memory: Flash Memory (Program Storage), RAM (Data Storage), Built-in Lithium Battery (144-hour Backup)
• Power Supply: 24 VDC (5 mA), +5 VDC (+/-5%) @ 1.5 A, +3.3 VDC (+/-5%) @ 1.0 A
• Communication Interfaces: Dual Ethernet Ports, I/O Link for Connecting I/O Modules
• Hazardous Location Certification: Class I, Division 2, Groups A-D, Temp Code T4
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Dimensions: 127 mm × 101.6 mm × 12.7 mm
• Weight: 0.45 kg
• Chassis Slots: 1 Slot Occupied in C200 Controller Chassis
• Options: Conformal Coating (for Harsh Environment Protection)
• Certifications: CE, UL, Class I Div 2
3. Core Features
• High-Speed Processing: 150 MHz processor enables efficient execution of complex control algorithms.
• Data Retention: Built-in lithium battery provides 144-hour memory backup during power failure.
• Seamless I/O Integration: I/O Link interface for connecting various C200 I/O modules to expand control functions.
• Hazardous Environment Adaptability: Certified for Class I, Division 2 hazardous locations with Temp Code T4.
• Flexible Configuration: Supports online programming and configuration via Honeywell Control Builder Software.
• Reliable Design: Conformal coating option available to enhance resistance to moisture and corrosion.
4. Typical Applications
• Petrochemical Industry: Process control and monitoring of refining and chemical production units.
• Power Generation: Boiler, turbine and generator set control systems.
• Chemical Industry: Batch and continuous process control for pharmaceutical and chemical plants.
• Oil & Gas: Pipeline transportation and wellhead control systems.
• Water Treatment: Uninterrupted operation control of water supply and sewage treatment systems.
5. Installation & Configuration
• Mounting: Installed in 1 dedicated slot of C200 Controller Chassis (Panel Mount)
• Wiring: Connect 24 VDC Power Cable, Communication Cables for Ethernet and I/O Link
• Configuration: Use Honeywell Control Builder Software to Program Control Logic and Set Communication Parameters
• Battery Replacement: Replace the Built-in Lithium Battery without Powering Off the System (Under Redundant Configuration)
• Maintenance: Support Online Diagnosis and Replacement to Ensure Minimal System Downtime
Technical Document | Honeywell TK-PRS021 | C200 Control Processor Module | Industrial Automation Core Computing Component
