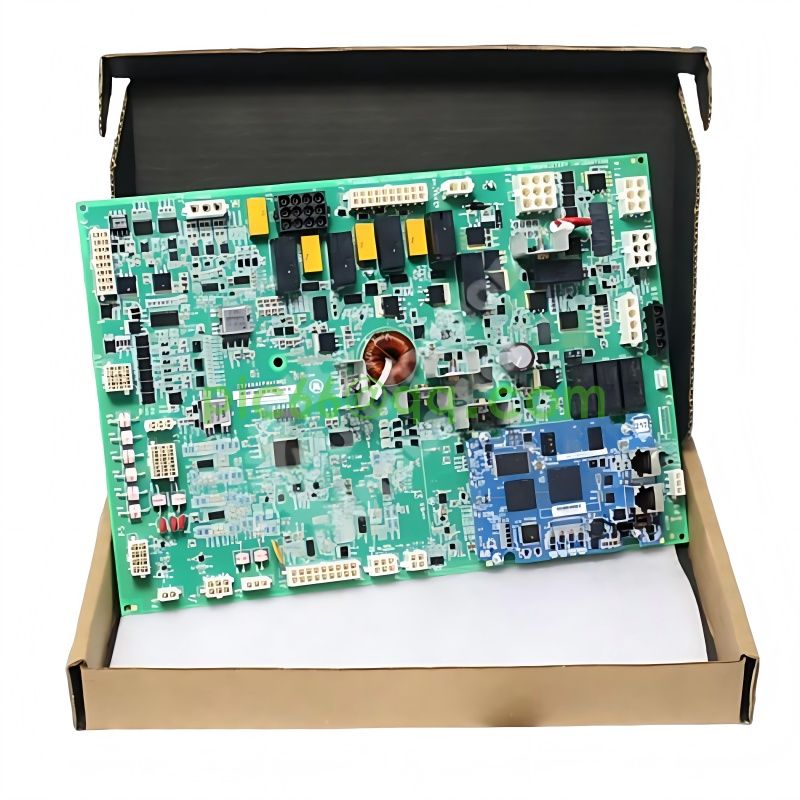

GE IS215WEPAH2B Printed Circuit Board

IS215WEPAH2B is a printed circuit board developed by GE under Mark VIe control system. This model features three communication ports - COM1, COM2,

and a micro-miniature 9-pin socket D connector. The Ethernet interfaces supported by the PCB include a 10BaseT/AUI connector. The maximum non-operating shock value for this PCB is 10G,

which means it can withstand shocks without sustaining damage. Its three communication ports, micro-miniature 9-pin socket D connector,

and Ethernet interface make it an excellent choice for various industrial applications. This model is suitable for simplex or triple redundancy applications. The board is linked to a daughterboard.

Part Number: IS215WEPAH2B
Manufacturer: General Electric
Series: Mark VIe
Product type: Printed Circuit Board
COM Ports: 3; COM1, COM2, and micro-miniature 9-pin socket D connector
Ethernet Interfaces: 10BaseT/AUI connector
Manual: GEP-9145
Relative Humidity: 10-95%, non-condensing
Shock: maximum 10G, non-operating
Female Plug Connectors: 2
No.of Metal Oxide Varistors: 4
Power Supply Rating: 125 VDC
Software Frame Rates: 10, 20 and 40 ms
Storage Temperature: -40 to +70 degrees Celsius

What are the functions of GE IS215WEPAH2B

GE IS215WEPAH2B has demonstrated powerful functionality in the industrial field. Firstly, it is an important component of the steam turbine control system,

capable of accurately controlling the operation of the steam turbine. It has high stability and reliability, ensuring that the steam turbine can operate safely and efficiently under various working conditions.

This product also has advanced communication functions. It has three 100mb Ethernet drivers for IONet, and each controller can communicate with up to three network switches.

In redundant systems, each controller is allowed to directly monitor redundant inputs and compare potential differences to ensure data accuracy and reliability.

In addition, the communication between the controller and I/O pack of GE IS215WEPAH2B is through an internal IONet, which is a 100MB Ethernet network that can be configured as non redundant,

dual redundant, or triple redundant to meet the needs of different application scenarios. EGD messages are broadcasted from the controller to the I/O packets at the system frame rate,

responding with input data to achieve efficient data transmission and processing.

Technical advantages of GE IS215WEPAH2B

GE IS215WEPAH2B has numerous technological advantages. Firstly, advanced processors and operating systems are adopted to provide high-speed processing capabilities,

which can quickly respond to various control instructions, ensuring the real-time and stability of the system.

Secondly, it has rich communication functions. Multiple Ethernet drivers and powerful network communication capabilities enable efficient data exchange and collaborative work with other devices,

 achieving factory wide event monitoring and control.

Thirdly, the sturdy design enables it to operate stably within a working temperature range of 0 to 65 ° C without the need for cooling fans, adapting to various harsh industrial environments.

Fourthly, the color coded and labeled connectors simplify maintenance work and improve maintenance efficiency. Meanwhile, IONet networks that can be configured as non redundant,

dual redundant, or triple redundant provide higher reliability and availability for the system.
