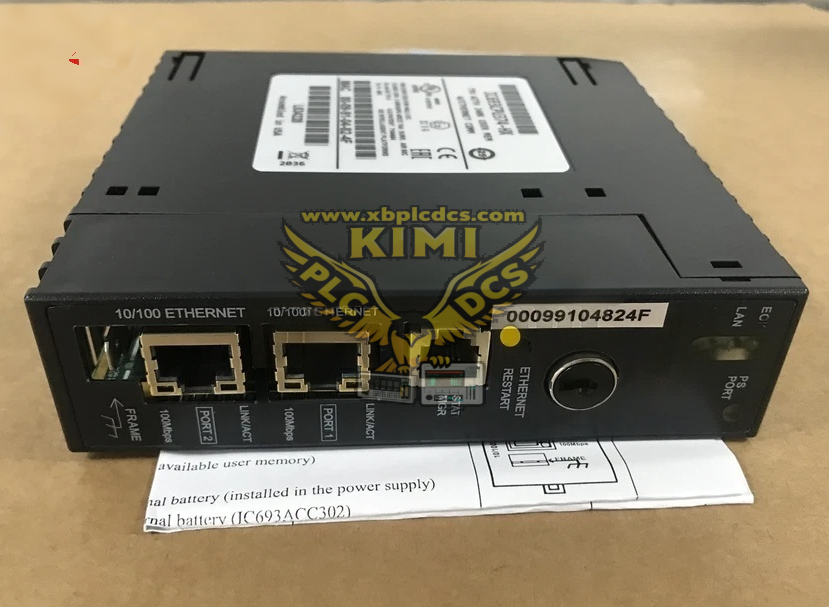

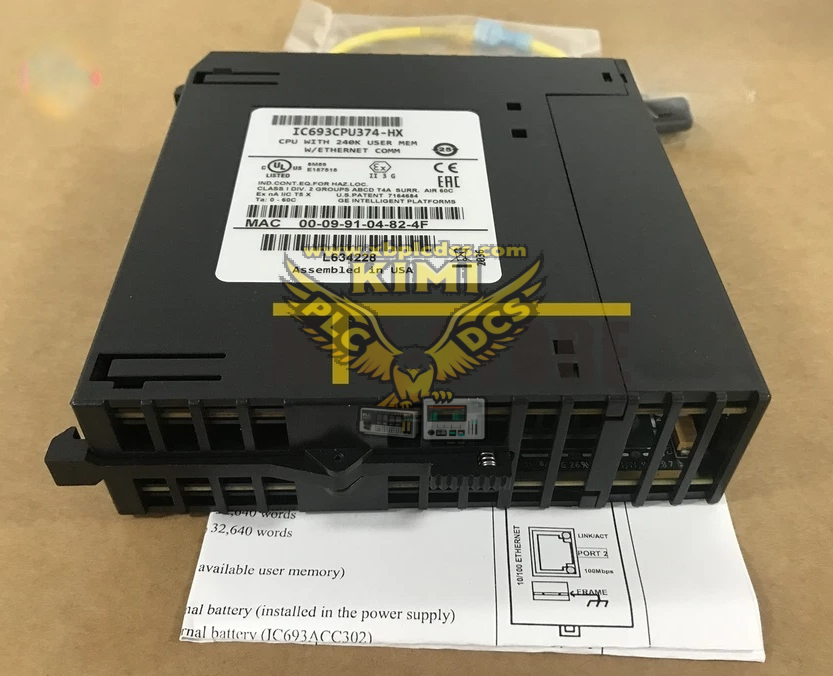

GE IC693CPU374-HX is a firmware revision HX high-performance single-slot central processing unit belonging to GE Fanuc Series 90-30 CPU374 PLUS PLC family, adopting 133MHz AMD SC520 586-class industrial processor. This module occupies one rack slot of Series 90-30 baseplate, equipped with 240KB configurable user memory for control logic, analog registers and data storage, supporting up to 2048 discrete input and 2048 discrete output points, and maximum 8 expansion baseplates for distributed I/O layout. It integrates dual auto-sensing 10/100BASE-TX RJ45 Ethernet ports with internal layer 2 switch, eliminating extra external network switches for PLC daisy-chain networking. It consumes 7.4W power at 5VDC backplane supply, with conformal coated PCB for dust and moisture resistance, operating temperature range 0°C ~ +60°C and storage range -40°C ~ +85°C. Built-in lithium battery backs up real-time clock and RAM data to prevent configuration loss during power outages. This CPU supports multiple industrial programming languages and mainstream industrial communication protocols including Modbus/TCP, SRTP and EGD (Ethernet Global Data), compatible with LogicMaster and PACSystems Machine Edition programming software. IC693CPU374-HX is an early stable firmware version of CPU374 PLUS, widely deployed as core controller for medium-sized process and discrete automation systems, and still serves as critical spare replacement for legacy GE 90-30 control racks worldwide.

• High-speed logic execution: 0.15ms scan time per 1000 Boolean instructions, built-in floating-point arithmetic for analog closed-loop PID control calculations
• Dual integrated Ethernet ports with internal auto-switch to realize PLC interconnection, HMI access and SCADA data upload without additional communication modules
• Multi-protocol Ethernet communication: support Modbus/TCP client & server, SRTP secure transmission, EGD periodic real-time data exchange between multiple PLC stations
• 240KB flexible memory allocation, configurable storage space for ladder logic, analog registers (%AI/%AQ), discrete coils and historical fault data logs
• Scalable I/O management: control up to 8 baseplates and 4096 total discrete I/O points, support Genius remote I/O racks for long-distance field equipment control
• Battery-backed RAM and RTC to retain system parameters, production recipe data and accurate time stamps after full power failure
• Complete hardware self-diagnosis: backplane communication detection, memory error check, Ethernet link status monitoring, fault code display via front panel LED indicators
• EZ Store offline program download function, allowing control program loading without connecting a PC programming terminal on site
• Compatible with standard Series 90-30 peripheral modules: analog I/O, thermocouple modules, relay output cards and special motion control coprocessors
• Support SNP/SNPX protocols via rack power supply RS485 port for connection with legacy GE touch screens and field operator panels

• System watchdog timer that triggers CPU reset automatically if control logic program stalls or abnormal operation occurs to ensure equipment safety interlock

• Thermal Power Auxiliary Control: Boiler water supply pump, induced draft fan, ash removal system interlock and parameter monitoring control racks
• Petrochemical Refineries: Pipeline valve sequence control, reaction tank temperature/pressure closed-loop regulation and safety interlock logic
• Automotive Manufacturing Lines: Assembly conveyor, injection molding machine, stamping press and robotic auxiliary equipment control
• Water & Wastewater Treatment Plants: Pump station group control, chemical dosing automatic adjustment and drainage flow monitoring systems
• Mining Processing Plants: Ore crushing, conveyor transportation and underground ventilation fan centralized automation control
• Food & Beverage Production: Filling, packaging, sterilization process sequential control and batch recipe management
• Building Central Utilities: HVAC air conditioning, water supply and fire smoke exhaust linkage control systems for large factories

• Legacy Automation Retrofit Projects: Spare CPU replacement for aging GE Series 90-30 control cabinets during factory system upgrade transformation

• Q: IC693CPU374-HX front panel EOK indicator stays off after power on, PLC fails to run programs?
  A: Possible causes include insufficient rack power supply, loose CPU backplane connector, corrupted flash firmware, depleted backup battery or short-circuit on I/O modules; re-seat the CPU and check baseplate power load capacity.
• Q: Two Ethernet ports cannot communicate with HMI/SCADA, link LED flashes abnormally?
  A: Verify correct static IP address, subnet mask and gateway settings; replace damaged CAT5e shielded cables; check network broadcast storm or IP address conflict on local area network; reset CPU Ethernet configuration parameters.
• Q: Can IC693CPU374-HX support hot swapping when the control rack remains powered?
  A: Hot swap is not permitted. Cut off the entire rack power supply before removing or inserting the CPU module to avoid backplane bus short-circuit, CPU hardware burnout and accidental field equipment misoperation.
• Q: All memory data and program logic are lost after power cycle, battery has been replaced?
  A: Check poor contact of lithium battery holder on CPU PCB; confirm battery voltage is above 3V; verify RAM backup enable jumper setting is in correct position; re-download complete program and store to flash memory permanently.
• Q: Modbus/TCP client fails to read data from third-party slave instruments via Ethernet?
  A: Confirm Modbus function code compatibility; check slave device IP accessibility via ping test; adjust Modbus communication timeout and retry parameters in CPU configuration software.
• Q: Is IC693CPU374-HX still available for new automation project construction?
  A: GE has discontinued Series 90-30 platform production; IC693CPU374-HX is only supplied as refurbished, surplus or used spare parts for existing equipment maintenance; PACSystems RX3i series CPUs are recommended for new projects.
• Q: PLC scan cycle becomes extremely long with frequent program execution delays during production operation?
  A: Optimize redundant ladder logic segments; reduce excessive EGD real-time data exchange volume; check for abnormal analog signal jamming leading to repeated PID recalculation; expand memory allocation for data registers.
