GE IS200VSV0H1BDC VSVO Servo Control Board (Mark VI Speedtronic)

1. Product Description

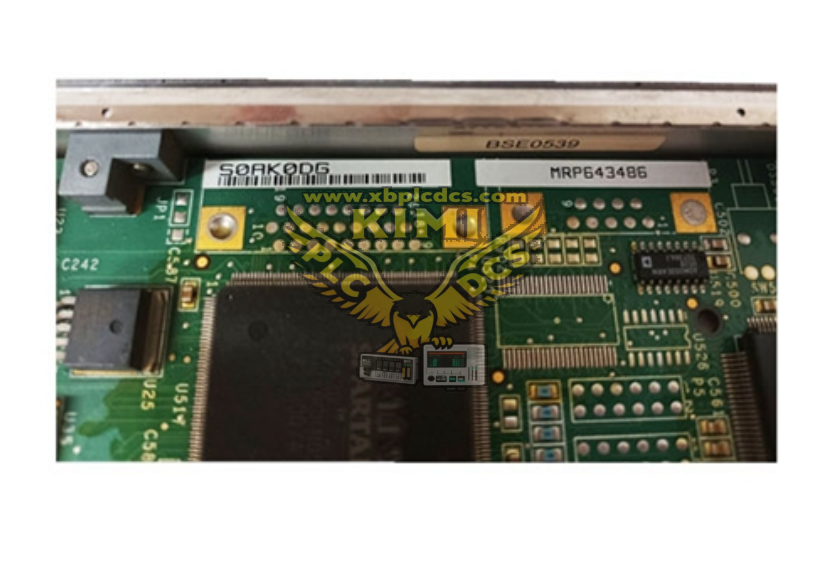

IS200VSV0H1BDC (VSVO) is a conformal-coated VME servo control PCB developed by GE for the Mark VI Speedtronic turbine control system, manufactured in the USA. It is a single-slot rack plug-in module dedicated to electro-hydraulic servo valve closed-loop regulation, compatible with simplex and TMR triple redundant safety configurations. Equipped with front panel J5 external signal connector, three LED status indicators (Run, Fail, Status), and dual-row VME golden finger backplane bus interface. The PCB adopts full conformal coating to resist dust, humidity and chemical vapor in power plant environments, supporting pulse rate speed inputs from 2 Hz to 14 kHz, LVDT valve position feedback sampling, and bidirectional current drive for 2/3-coil servo valves. It executes high-speed position loop control algorithms and exchanges real-time valve command & feedback data with Mark VI main controllers via VME backplane bus, with built-in full-channel self-diagnosis for sensor and circuit faults.

2. Core Product Functions

• 2 independent servo valve drive channels, bidirectional current output to control fuel, steam and bypass hydraulic servo valves
• LVDT/LVDR position feedback acquisition, high-precision closed-loop position control with ±0.2% full-scale accuracy
• Pulse rate signal processing for active/passive turbine speed sensors, frequency range 2–14 kHz for rotor speed monitoring
• Supports TMR triple redundant architecture for critical turbine safety control, cross-checking valve position signals among three boards
• Onboard loop self-diagnosis: detect LVDT excitation failure, servo coil short/open circuit, signal over-range and bus communication loss
• Fast response control algorithm (≤10ms step response), stable valve adjustment during turbine load fluctuation and startup/shutdown
• Galvanic isolation between field hydraulic valve wiring and internal control logic to eliminate high-voltage EMI interference from generators
• VME backplane high-speed data communication, upload valve position, fault codes and operating status to Mark VI main CPU

3. Application Scenarios

• Thermal power plant heavy-duty gas turbine and steam turbine fuel control valve, steam admission valve positioning control
• Combined cycle power plant HRSG bypass valve and anti-surge compressor valve servo drive system
• Oil & gas refinery turbine generator and pipeline compressor Mark VI control racks
• Offshore platform power generation turbine fuel valve redundant TMR safety control system
• Industrial heavy-duty drive turbine, waste heat recovery turbine actuator closed-loop control

4. Common Troubles & Issues

• LVDT Excitation Fault Alarm

  Cause: Damaged LVDT probe, broken feedback cable, internal excitation circuit failure on VSVO board. Solution: Test LVDT continuity, replace shielded signal cables and recalibrate channel excitation parameters.

• Servo Valve Hunting & Unstable Position Fluctuation

  Cause: Incorrect PID loop parameters, unshielded field wiring, hydraulic oil contamination affecting servo valve. Solution: Optimize position loop PID gains, install shielded twisted cables and maintain hydraulic servo actuator.

• TMR Voting Discrepancy Alarm (Redundant System)

  Cause: Inconsistent calibration values among three VSVO boards, uneven signal attenuation on feedback lines. Solution: Synchronize all three module calibration parameters and unify field wiring length & shielding.

• Module Fail LED On, Unrecognized by Mark VI Controller

  Cause: Dirty VME golden finger contacts, abnormal rack 24V bus power, incompatible Mark VI firmware version. Solution: Clean PCB gold fingers with anti-static cloth, test rack power voltage and upgrade matching system firmware.

• Servo Coil Short Circuit Protection Triggered

  Cause: Servo valve coil burnout, short-circuit of field wiring terminal block. Solution: Measure coil resistance of hydraulic servo valve and repair shorted wiring.

• Intermittent Speed Signal Loss Under Vibration

  Cause: Loose J5 front connector, loose terminal wiring, aging internal PCB solder joints. Solution: Fasten J5 cable lock, secure all wiring terminals and inspect circuit soldering points.
